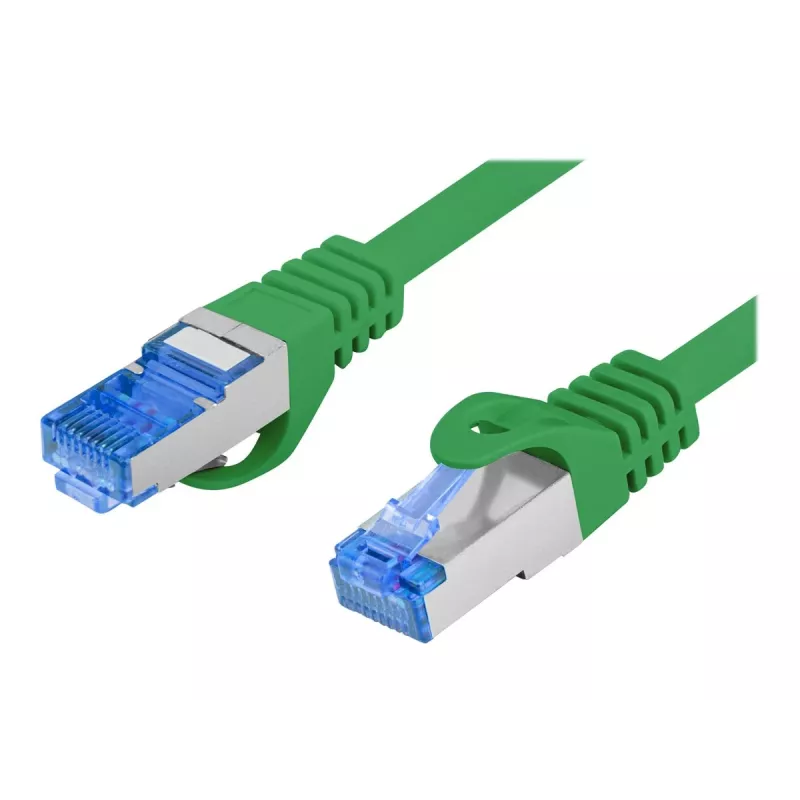

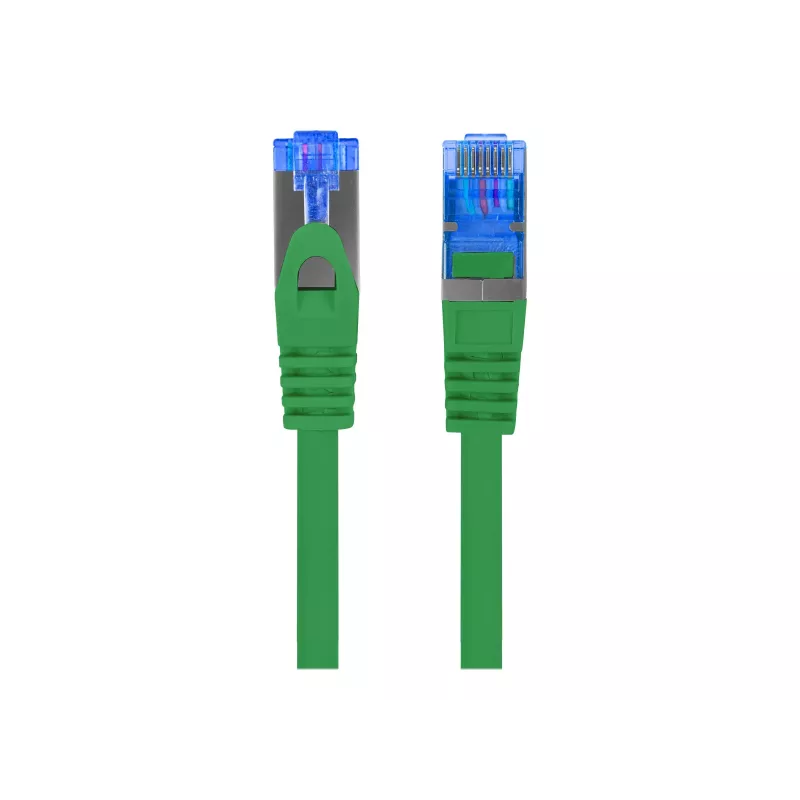

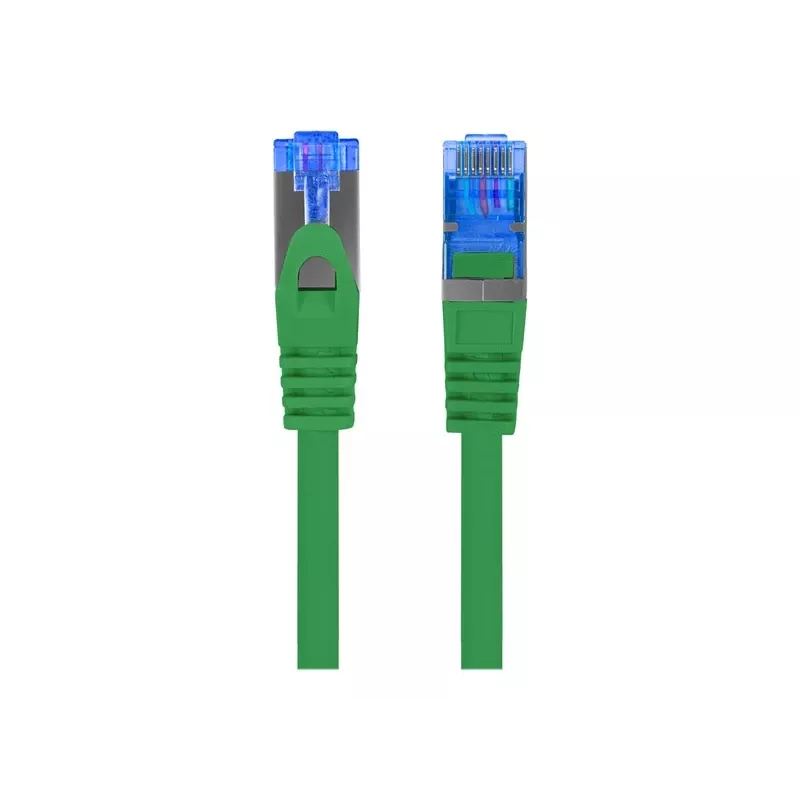

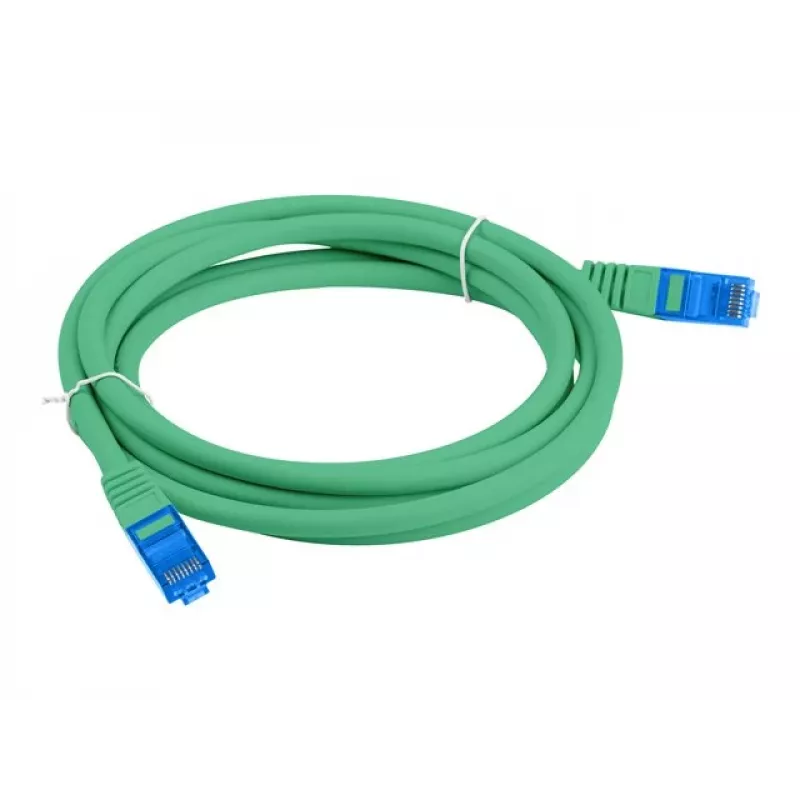

LANBERG Cavo patch Cat.6A FTP LSZH CCA 3m verde

Network technicians and IT managers often face the challenge of deploying high-speed 10 Gigabit Ethernet connections in office buildings, data centers, and industrial environments where safety and performance are critical. The LANBERG Cat.6A FTP LSZH CCA Patch Cable 3m Green is built for exactly these scenarios, delivering reliable 10 Gbps data transfer over distances up to 3 meters. Its green LSZH jacket not only aids in color-coding network segments but also ensures low smoke and zero halogen emissions in case of fire, making it suitable for public buildings, schools, and hospitals. The cable features gold-plated RJ45 connectors and a foiled twisted pair (FTP) shielding that minimizes electromagnetic interference, ensuring stable connections even in electrically noisy environments.

Key specifications

• Category: Cat.6A (Category 6A)
• Shielding: FTP (Foiled Twisted Pair)
• Conductor material: CCA (Copper Clad Aluminum)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Length: 3 meters
• Colour: Green
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• Conductor gauge: 26 AWG
• Wiring standard: TIA/EIA 568B
• Number of pairs: 4 twisted pairs
• Jacket diameter: approx. 6.0 mm
• Insulation material: HDPE
• Operating temperature: -20°C to 60°C
• Flammability rating: IEC 60332-1

Why choose it

This patch cable combines high-speed performance with enhanced safety features. The LSZH jacket reduces toxic smoke and corrosive gases during combustion, protecting both people and equipment. FTP shielding provides excellent protection against alien crosstalk and EMI, ensuring consistent 10 Gbps throughput. Gold-plated contacts resist corrosion and maintain reliable connectivity over many mating cycles. The green color allows for easy identification and organization of network connections, simplifying maintenance and troubleshooting.

Ideal use cases

• Connecting servers and switches in data centers
• Wiring workstations in offices with high bandwidth demands
• Deploying in public buildings where LSZH is mandatory
• Color-coded network segmentation for different departments or VLANs
• Industrial environments with electromagnetic interference

Good to know

The cable is constructed with copper clad aluminum (CCA) conductors, which offer a cost-effective alternative to solid copper while maintaining acceptable performance for short patch cord applications. It is compliant with IEC 60332-1 for flame retardancy. The operating temperature range of -20°C to 60°C makes it suitable for most indoor environments. For best performance, avoid sharp bends and excessive pulling during installation.
