Patch panel in fibra ottica rack 1U 24x SC/LC 19"

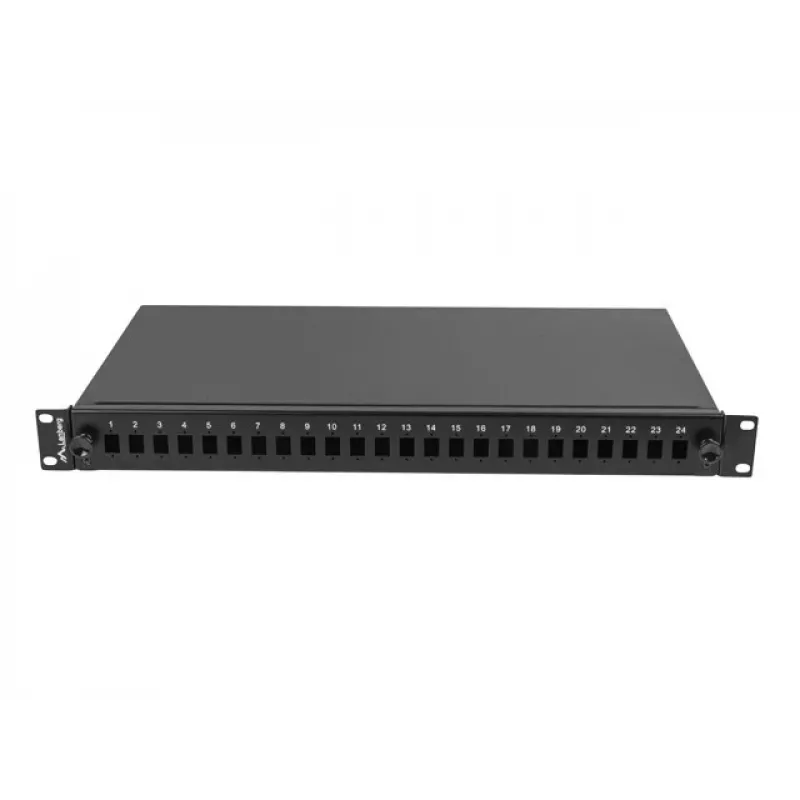

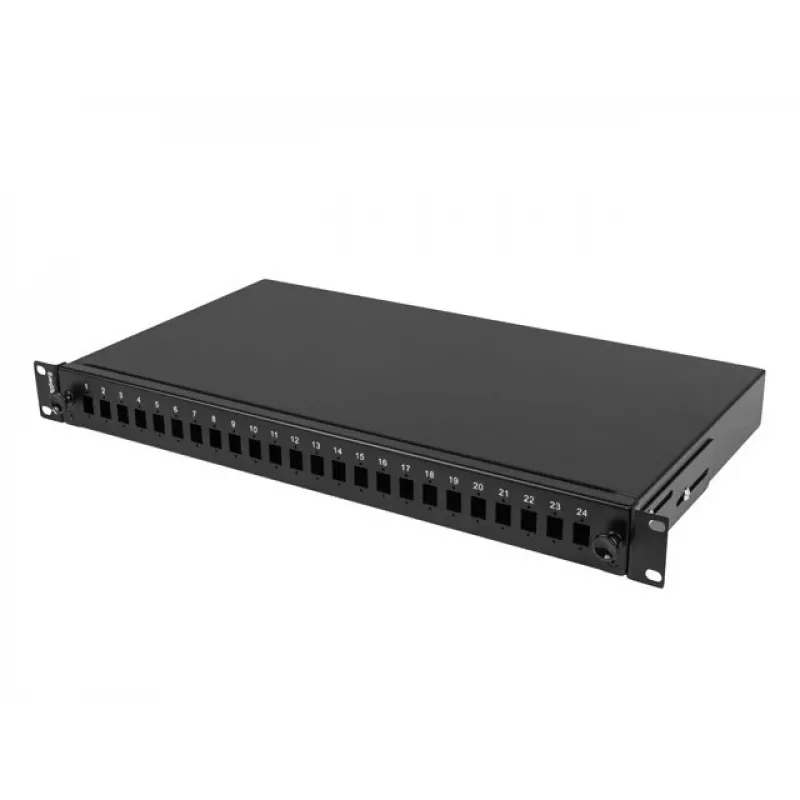

Managing dense fiber connections in a 19" rack can quickly become a mess of tangled cables and inaccessible ports. The Lanberg FOP1-24SS-LDB sliding patch panel solves this by combining a 1U drawer design with a front panel that accommodates up to 24 SC simplex or 24 LC duplex adapters, giving you up to 48 fiber connections in a single rack unit. The drawer slides out for easy access, while the rear cable entries and integrated splice trays keep everything organized and protected.

Who is it for

This patch panel is ideal for data centers, server rooms, and telecommunications installations where high-density fiber termination, neat cable management, and quick access for maintenance are essential. It suits network engineers, installers, and IT professionals who need a reliable, rack-mountable solution for SC or LC fiber optic networks.

Main features

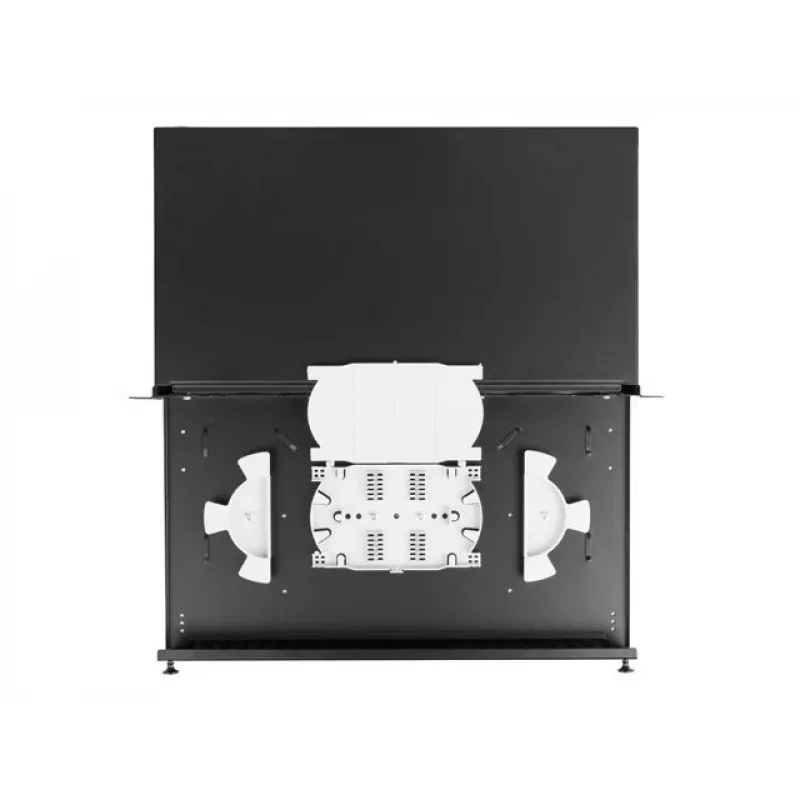

• Sliding 1U drawer for easy access to fibers and splices

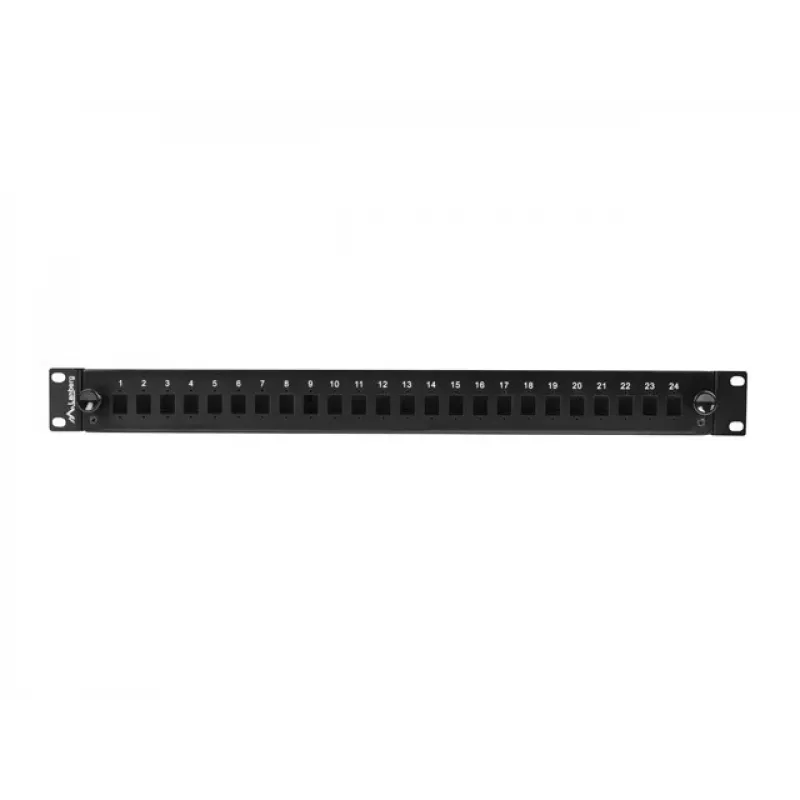

• Front panel capacity: 24x SC simplex or 24x LC duplex (up to 48 fibers)
• Durable powder-coated steel construction with black finish
• Adjustable rack ears for flexible mounting depth

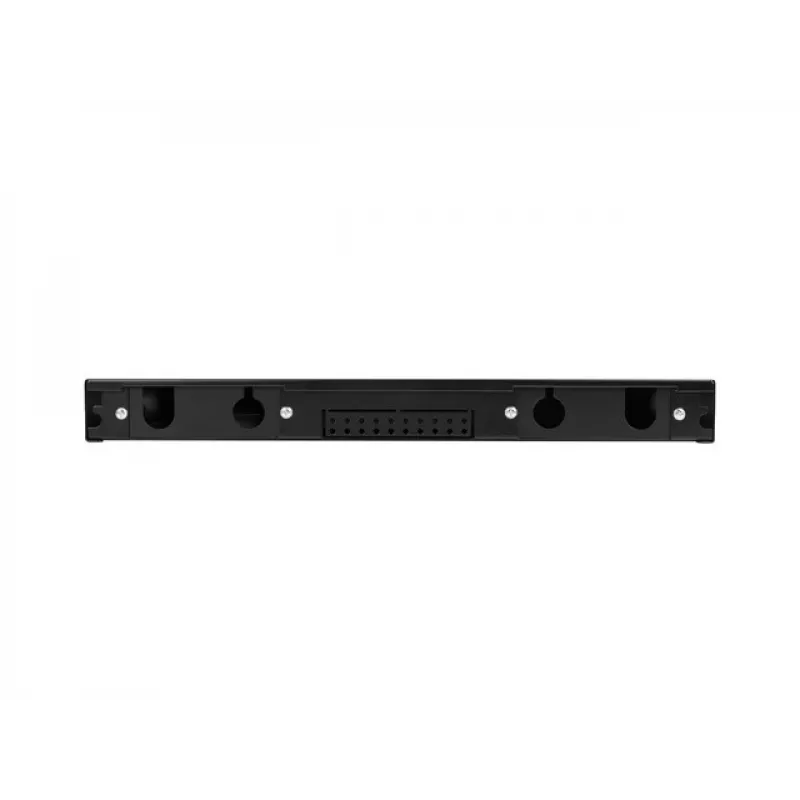

• Rear panel with 4 holes (22 mm) and 1 drop cable entry
• Includes splice cassettes, cable glands, screws, and cable management accessories

Specifications

• Rack standard: 19-inch
• Height: 1U
• Material: Cold-rolled steel, powder-coated black (RAL 9005)
• Front panel plate thickness: 1.2 mm; mounting brackets: 1.5 mm
• Splice cassette and spool material: ABS plastic
• Operating temperature: -10°C to +60°C
• Storage temperature: -20°C to +70°C
• Humidity: 10% to 90% RH (non-condensing)
• Compliance: RoHS, CE

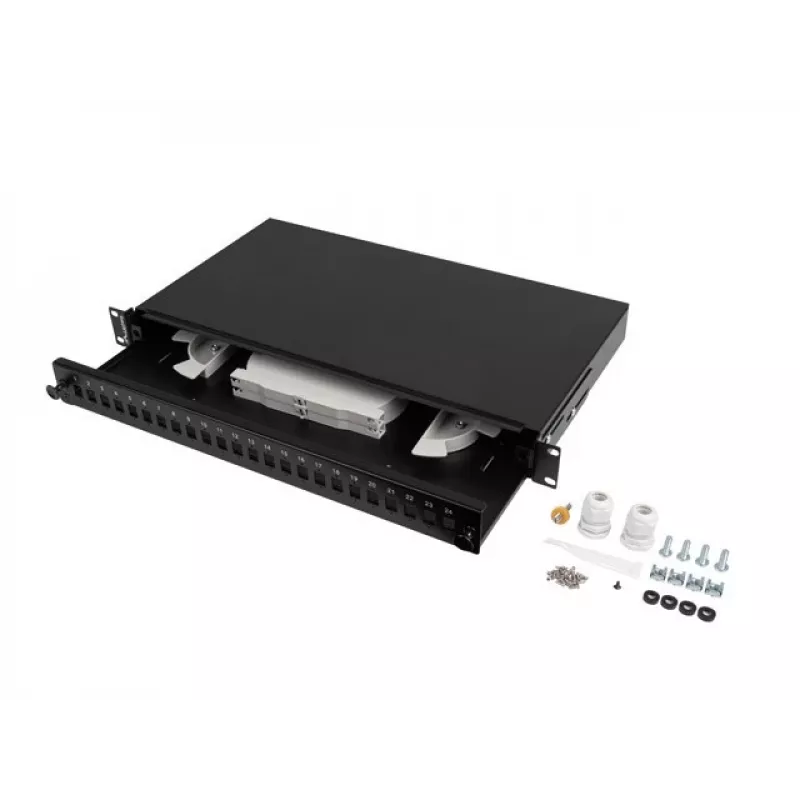

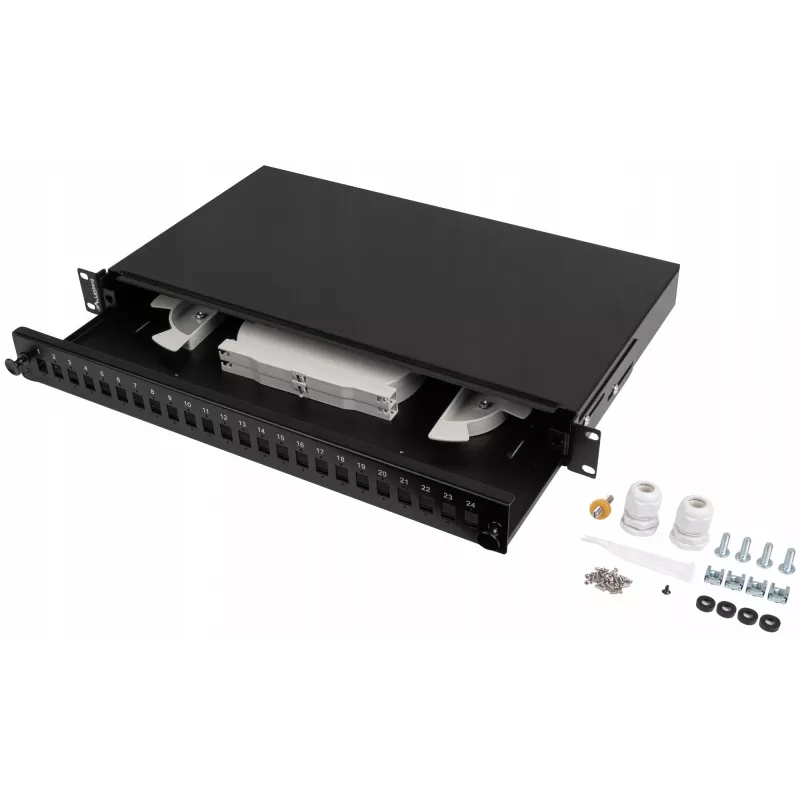

• Included accessories: 2 x PG13.5 cable glands, splice cassettes, cable ties, M6x16 mm screws with cages, M2x8 mm screws for adapters, screw with knurled nut for optional splice tray

Tips

For best results, use LC duplex adapters to maximize fiber density. When mounting, adjust the rack ears to align the panel with your cabinet depth, and use the rear cable entries to route incoming cables neatly. The sliding drawer allows you to perform splices and maintenance without disturbing existing connections.
