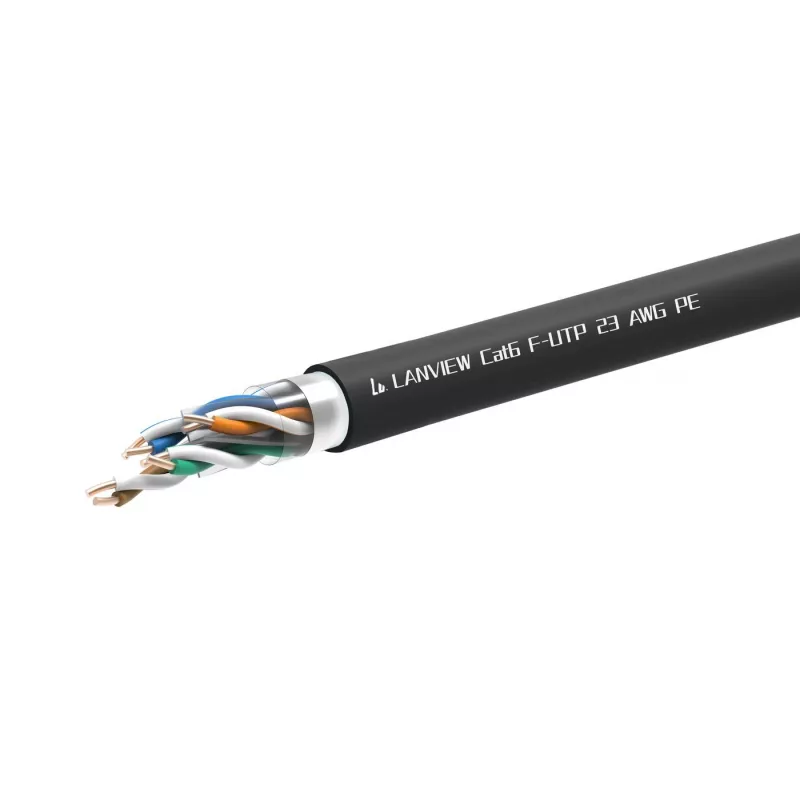

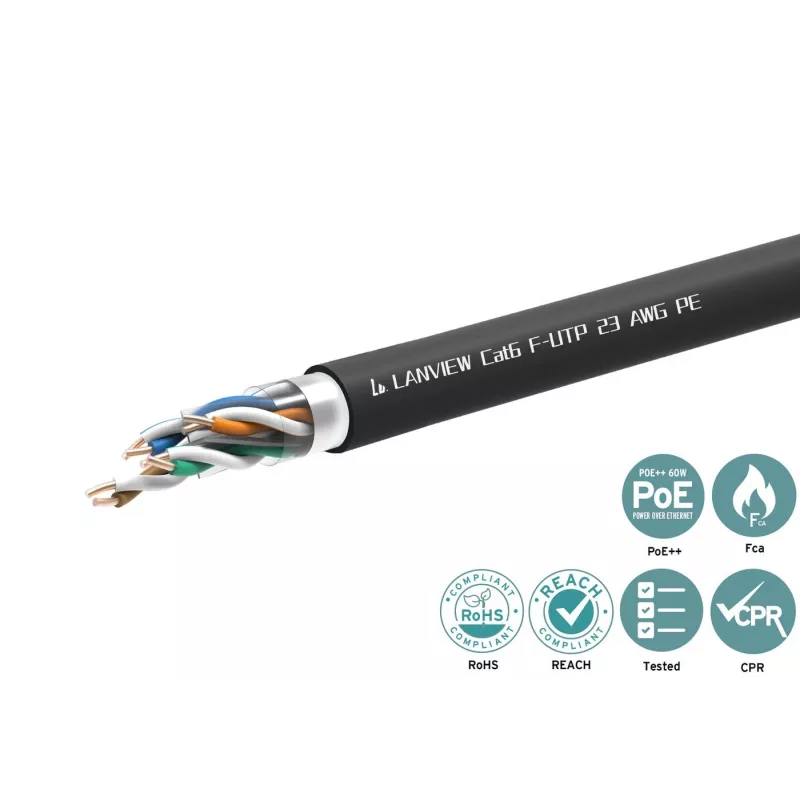

Lanview LVN-CAT6PE-FUTP-305M Cavo di rete Cat6 F/UTP (FTP)

Lanview LVN-CAT6PE-FUTP-305M F/UTP Cat6 is a 305-meter networking cable designed for structured cabling systems and for transmission of telecommunications and high-speed data. The cable comprises four pairs of color-coded polyethylene (PE) insulated conductors with foil shielding (F/UTP) to limit external interference and maintain signal integrity. It is manufactured and tested to ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards and supports data transfer rates up to 10000 Mbit/s.

Advantages

The foil shielding provides improved protection against electromagnetic interference compared with unshielded cables while maintaining flexibility suitable for typical installation scenarios. Conformance to international cabling standards ensures predictable electrical performance and compatibility with common network equipment. The 305 m reel length reduces the need for splicing in long runs.

Suitable for

• Structured cabling in offices and commercial premises
• High-speed Ethernet links (up to Cat6 performance)
• Data centers and wiring closets where foil-shielded UTP is required
• Telecommunications infrastructure and backbone runs

Key specifications

• Type: F/UTP Cat6 network cable
• Length: 305 m
• Conductors: 4 pairs, PE insulated, color coded
• Standards: ISO/IEC 11801, EIA/TIA 568B, EN50173-2
• Data rate: up to 10000 Mbit/s
• Weight: 10 kg
• Manufacturer part number (MPN): LVN-CAT6PE-FUTP-305M
• EAN: 5715063129203

How to use

Measure and cut the required length from the 305 m reel, taking care to leave service loops where needed. Terminate each pair to RJ45 connectors or keystone jacks following the color code and the chosen wiring scheme (TIA/EIA 568A or 568B). Ensure the foil shield is correctly grounded at the patch panel or shielded connector to maintain shielding effectiveness. Test each terminated link with a cable tester to verify continuity, pair mapping and performance parameters.

Recommendations

For optimal performance, avoid running the cable parallel and close to power lines or large electrical equipment. Use appropriate bend radius during installation and secure the cable without excessive tension. Ground the foil shield at a single point and perform certification testing if the installation must meet formal channel performance requirements.
