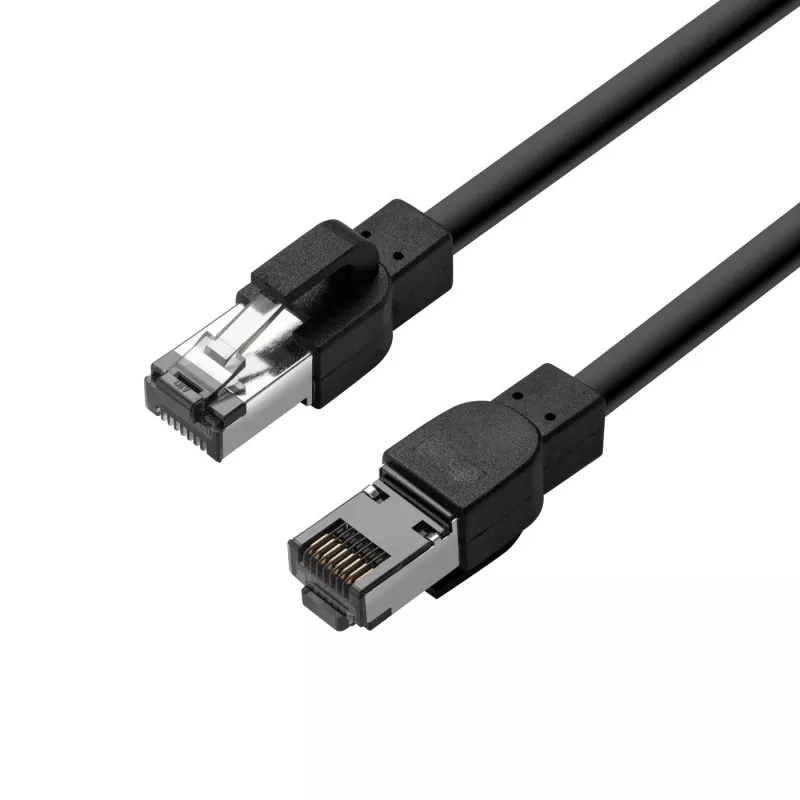

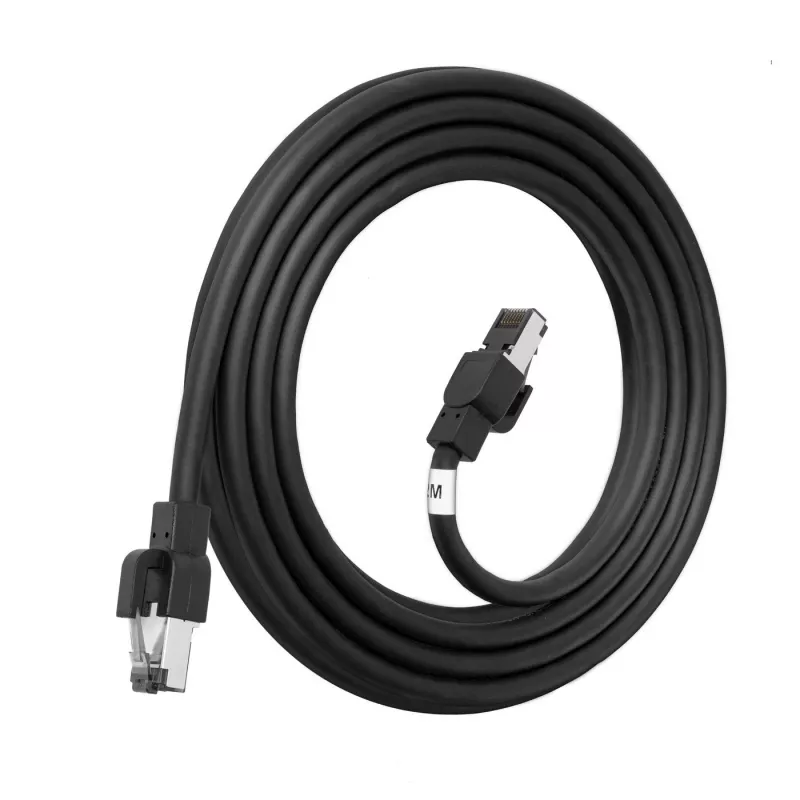

Lanview LVN6020SOUT Cavo di rete nero 20 m Cat6a S/FTP (S-STP)

Lanview LVN6020SOUT is a 20 m Cat6a S/FTP networking cable designed for outdoor and industrial use. The cable features a high-flex PUR jacket that provides resistance to UV and oil, gold-plated connector contacts for reliable signal transfer, and S/FTP shielding to support Class EA performance up to 500 MHz and 10 Gbps Ethernet for voice, data and video applications.

Advantages

The high-flex PUR jacket increases durability in harsh environments and reduces the risk of mechanical damage during frequent movement. S/FTP shielding minimises crosstalk and electromagnetic interference, while gold-plated contacts improve corrosion resistance and maintain consistent connectivity. The cable is Fluke DSX-8000 Channel compliant and meets Cat6a/Class EA specifications for up to 500 MHz.

Suitable for

• Outdoor network links and industrial environments
• 10 Gbps Ethernet backbone and high-speed data transfers
• Voice, data and video transmission
• Environments requiring flexible, oil- and UV-resistant cabling

Key specifications

• Standard: Cat6a / Class EA
• Shielding: S/FTP (foiled twisted pairs with overall braid)
• Length: 20 m
• Maximum data rate: up to 10000 Mbit/s (10 Gbps)
• Frequency: up to 500 MHz
• Connector contacts: gold-plated
• Colour: Black
• Weight: 0.12 kg

How to use

Install the Lanview LVN6020SOUT cable between network devices by inserting the RJ45 connectors into compatible ports. Route the cable in a way that avoids sharp bends and excessive tensile stress to preserve the PUR jacket and internal pairs. For outdoor installations, secure the cable with appropriate clips or conduits and ensure connectors are protected from direct water ingress.

Recommendations

For best performance, use the cable within recommended bend radius and avoid prolonged exposure to chemicals not specified for PUR materials. Verify compatibility with your network equipment for 10 Gbps operation and test the link with appropriate certification tools when commissioning critical links.
