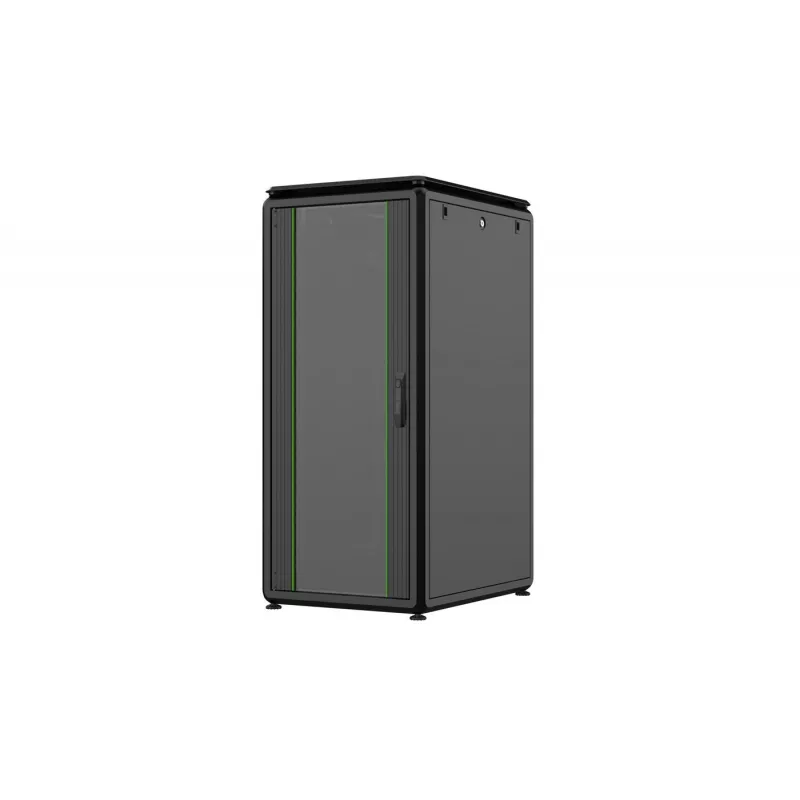

Rack autoportante LOGON RDL26U68BL 26U 600 kg nero

The LOGON RDL26U68BL freestanding rack cabinet is a 26U 19" enclosure designed for office and server-room installations. Constructed with a robust metal frame and a smoked 4 mm safety glass front door with a lock, the cabinet supports up to 600 kg of equipment and provides organized cable entry at the top, back and bottom. The roof sits 10 mm above the cabinet top to allow passive ventilation and to reduce ingress of dust and water; the cabinet meets IP40 protection class. Adjustable 19" mounting rails, removable rear door and height-adjustable levelling feet simplify installation and relocation.

Advantages

The cabinet combines a sturdy load-bearing capacity (up to 600 kg) with adjustable 19" rails that slide in depth for flexible device mounting. The front door uses a spring-loaded hinge system for tool-free removal and can be fitted to open in either direction; a keyed lock on the front and a barrel lock on the rear door secure installed equipment. Large rubber-edged cable entry on the floor, brush-strip cable feeds and multiple 3U cable entry panels provide practical cable management. The elevated roof and venting slots enable passive airflow without a fan, while the framed glass door and metal frame provide structural strength and a neat appearance.

Suitable for

• Small and medium office server and network racks
• Telecommunications and network equipment housing
• IT closets, wiring and structured cabling installations
• Locations requiring organized cable management and restricted access

Key specifications

• Model: LOGON RDL26U68BL
• Rack capacity: 26U, 19" compatible
• Maximum load: 600 kg
• Protection class: IP40
• Dimensions (HxWxD): 1342 x 600 x 800 mm
• Weight: 60 kg
• Front door: 4 mm smoked safety glass with lock, opening angle 180°
• Rear door: lockable steel door (barrel locking mechanism)
• Mounting rails: adjustable in depth, front and rear
• Cable management: 3U bottom and top cable entries, rubber-edged floor entry, brush strips
• Feet: height-adjustable levelling feet

How to use

Position the cabinet on a flat surface and adjust the levelling feet to stabilise the unit. Install equipment on the adjustable 19" mounting rails, moving the rails to the appropriate depth for the devices. Route cables through the top, rear or bottom cable entries; use the rubber-edged floor entry and brush strips to protect and organise cable bundles. The front door can be removed or reversed without tools via the spring-loaded hinges to allow easier access during installation or maintenance. Secure the doors with the provided lock mechanisms once equipment is mounted.

Recommendations

Place the cabinet in a ventilated environment and avoid direct exposure to liquid ingress. For improved thermal performance in dense equipment installations, consider adding a compatible roof fan module from the cabinet's accessory range. Ensure proper earthing and distribute load evenly across mounting rails to stay within the 600 kg limit.
