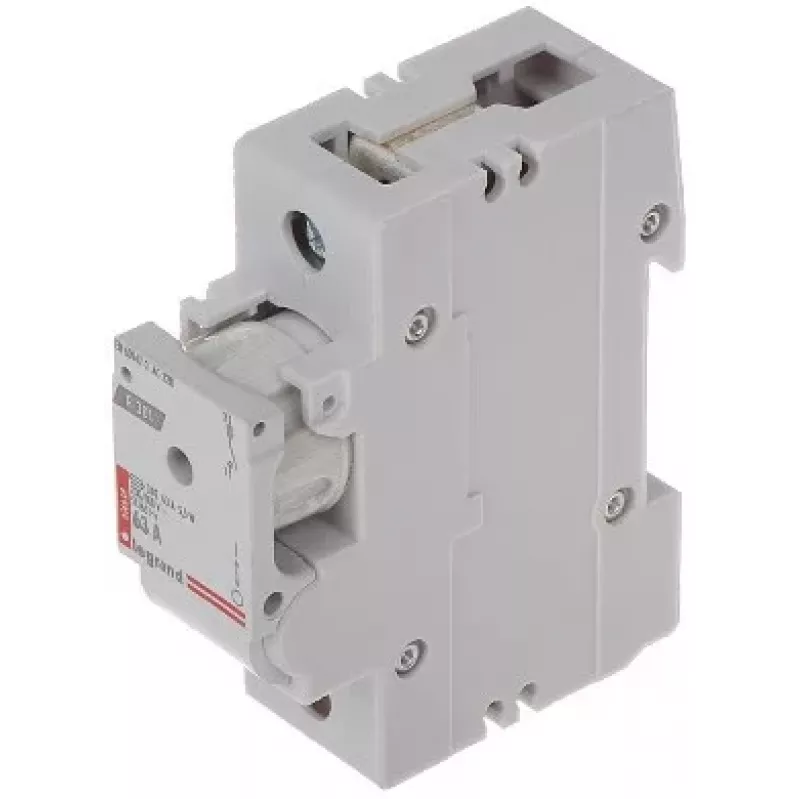

LEGRAND LE-606609 sezionatore portafusibile 1 fase 63 A D02

The LEGRAND LE-606609 is a high-quality single-phase fuse switch disconnector designed for reliable circuit protection and isolation. Rated at 63 A and compatible with D02 fuse links, this device ensures safe operation in industrial and commercial electrical installations. Its compact 1-module design (18 mm) mounts easily on DIN rails, saving space in distribution boards.

Advantages

Robust construction with IP40 front protection and IP20 terminal protection. Screw terminals accommodate rigid cables up to 25 mm² and flexible cables up to 16 mm², ensuring secure connections. Complies with IEC/EN 60947-3 and IEC/EN 60269-1 standards for safety and performance.

Suitable for

• Single-phase fuse protection in distribution boards
• Industrial control panels
• Commercial electrical systems requiring reliable disconnection

Key specifications

• Rated current: 63 A
• Fuse size: D02
• Number of poles: 1P
• Rated operational voltage: 400 V AC
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 4 kV
• Mounting: DIN rail (EN 60715)
• Module width: 1 module (18 mm)
• Degree of protection: IP40 front, IP20 terminals
• Terminal capacity: 1.5 - 25 mm² rigid, 1.5 - 16 mm² flexible
• Operating temperature: -25°C to +60°C
• Frequency: 50/60 Hz
• Connection type: Screw terminals

Recommendations

For optimal performance, use with compatible D02 fuse links and ensure proper tightening of screw terminals. Suitable for use in environments with moderate dust and moisture exposure.
