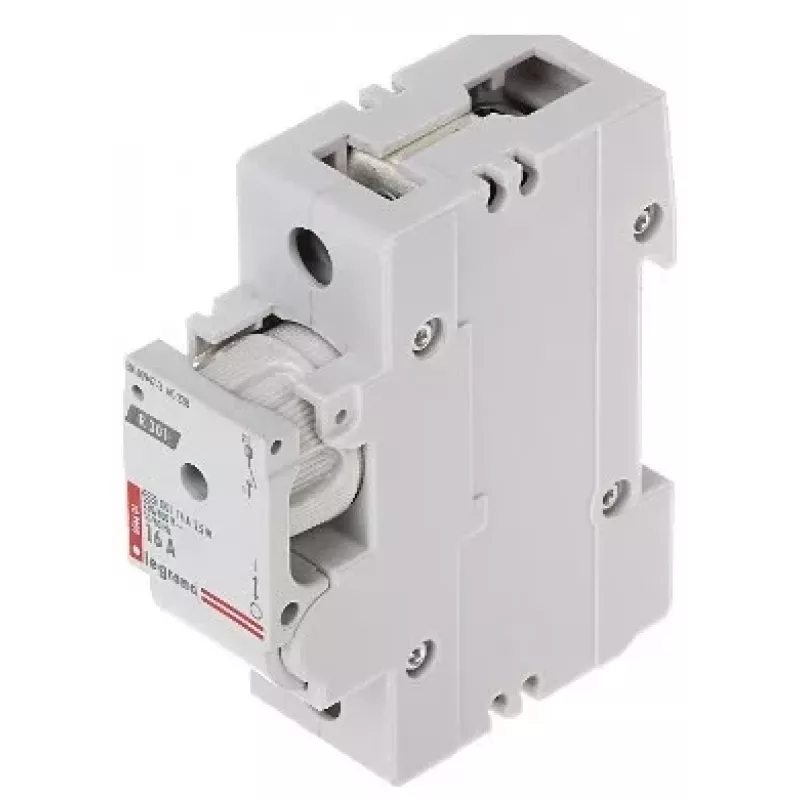

LEGRAND sezionatore portafusibile 1 polo 16A D01 606604

The LEGRAND 606604 is a high-quality single-phase fuse switch disconnector designed for reliable circuit protection and isolation. Suitable for industrial and commercial applications, this device ensures safe disconnection of electrical circuits with a rated current of 16 A and a rated operational voltage of 400 V AC. It accepts D01 (Neozed) fuse links and is mounted on a DIN rail (EN 60715) with a modular width of 1 module (18 mm).

Advantages

Compact design saves space in distribution boards. Screw terminals accommodate conductors from 1.5 to 25 mm², ensuring secure connections. Complies with IEC/EN 60947-3 for safety and performance. Operating temperature range from -25 to +60 °C allows use in various environments.

Suitable for

• Single-phase circuit protection in residential and commercial buildings
• Industrial control panels and machinery
• Lighting and power distribution systems

Key specifications

• Device Type: Fuse Switch Disconnector
• Number of Poles: 1-pole (Single-phase)
• Rated Current (In): 16 A
• Fuse Size/Type: D01 (Neozed)
• Rated Operational Voltage (Ue): 400 V AC
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Type: DIN Rail (EN 60715)
• Modular Width: 1 module (18 mm)
• Terminal Capacity: 1.5 - 25 mm² (flexible/rigid)
• Degree of Protection: IP20 (terminals), IP40 (front)
• Standard: IEC/EN 60947-3
• Operating Temperature: -25 to +60 °C
• Connection Type: Screw terminals
• Fuse Status Indication: No

Recommendations

For optimal performance, use with compatible D01 fuse links. Ensure proper installation by a qualified electrician. Verify voltage and current ratings match your application.
