Legrand TX3 interruttore automatico tipo B 1

Legrand TX3 interruttore automatico tipo B 1
Legrand TX3 interruttore automatico tipo B 1
20,75 €
PDF
PDF
Stock 132 Codice 2230521 Modello 403353 Garanzia 2 anni

Spedizioni e resi

Consegna stimata giovedì 10 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

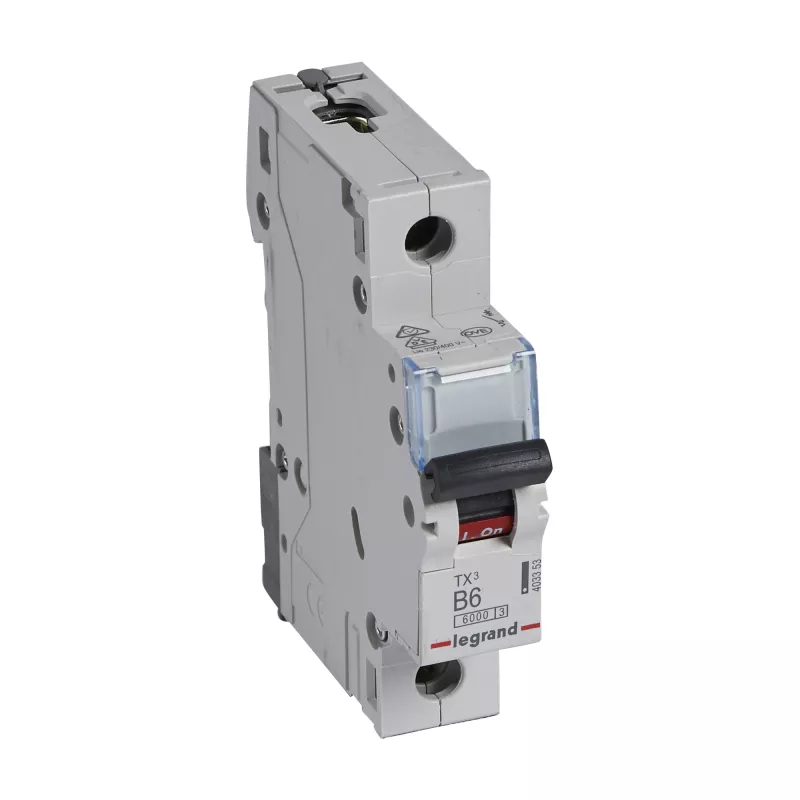

Single‑pole circuit breaker Legrand 403353 rated for 6 A at 230 V. Designed to protect electrical circuits from overload and short circuit in residential and light commercial installations. Compact DIN‑rail mounting, manual reset operation, and standard connection terminals provide reliable overcurrent protection and straightforward replacement or installation.

Advantages

This Legrand single‑pole breaker provides coordinated overcurrent protection with a precise 6 A trip characteristic suitable for low‑current circuits. The compact design conserves DIN‑rail space and simplifies panel layout. Manual reset ensures visible switching status and easy restoration after a trip, while standard connection terminals allow secure conductor connection with common tools.

Suitable for

Key specifications

How to use

Install the breaker on a compatible 35 mm DIN‑rail inside a distribution board following applicable electrical codes and safety standards. Ensure the mains supply is switched off before making connections. Connect the incoming phase conductor to the breaker line terminal and the load conductor to the load terminal, tightening terminals to the recommended torque. After wiring, switch on the supply and test the circuit by toggling the breaker; confirm correct operation by checking that the breaker trips under a controlled fault or overcurrent test performed by qualified personnel.

Recommendations

Use this 6 A, 230 V single‑pole breaker for dedicated low‑current circuits only; avoid oversizing it for circuits with higher expected continuous currents. Verify compatibility with the distribution board and downstream protective devices, and have installation and maintenance performed by a qualified electrician in accordance with local regulations.

Punti salienti
  • Protection of lighting circuits in residential buildings
  • Protection of small appliance circuits and control circuits
  • Use in distribution boards of light commercial premises
  • Replacement of existing single‑pole breakers with compatible DIN‑rail spacing
  • Poles: single‑pole (1P)
  • Rated current: 6 A
  • Rated voltage: 230 V AC
  • Mounting: DIN‑rail standard mounting (35 mm)
  • Operating mechanism: manual reset (toggle)
  • Tripping function: overcurrent and short‑circuit protection
  • Connection type: screw/clamp terminals for conductors
  • Form factor: compact housing for distribution panels

Specifiche

Specifiche
Altezza
88 mm
Classe di limitazione energia
3
Corrente nominale
6 A
Frequenza di ingresso
50 - 60 Hz
Grado di inquinamento
2
Grado di protezione (IP)
IP20
Larghezza
17.8 mm
Non contiene
Alogena
Numero di poli
1
Peso
0.12 kg
Profondità
77.8 mm
Rigidità dielettrica
4000 V
Temperatura di stoccaggio (T-T)
-40 - 70 °C
Tensione di ingresso
240 - 415 V
Tensione nominale
230 V
Tipo
Tipo B
Tipo di installazione
Guida DIN
Tipo di interruttore automatico
Interruttore magnetotermico miniaturizzato

Brochure

Apri documento
Storico prezzi degli ultimi 6 mesi
Legrand TX3 interruttore automatico tipo B 1
Attuale
20,75 €
Minimo 7 gg
20,75 €
Massimo 7 gg
20,75 €
Variazione 24 h
0,00 €   0%
Variazione 7 gg
0,00 €   0%
Variazione 30 gg
+4,58 €   +28%
