Lenovo ThinkPad Hybrid USB-C con dock USB-A con filo USB 3.2 Gen 2 (3.1 Gen 2) Type-C nero

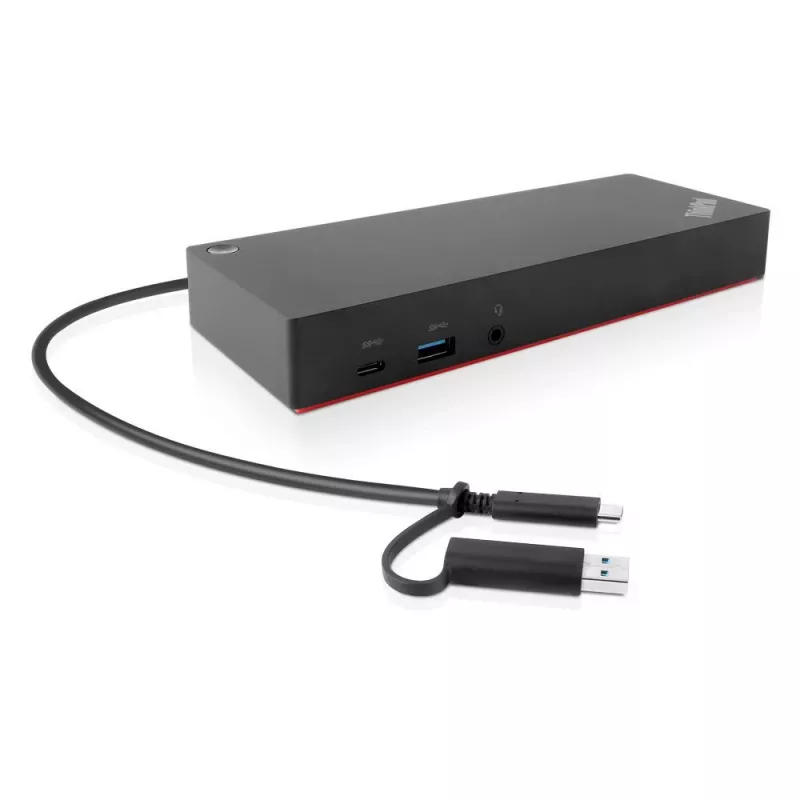

The ThinkPad Hybrid USB-C with USB-A Dock expands the connectivity and functionality of most laptops, new or old, by offering wired docking with USB 3.2 Gen 2 performance and a compact, black enclosure. It supports up to dual UHD 4K displays, includes Ethernet LAN up to 1000 Mbit/s, and delivers power and rapid charging for compatible ThinkPad notebooks. The dock ships with a USB-C to USB-A adapter so it can provide port replication for non-USB-C or non-Lenovo laptops.

Advantages

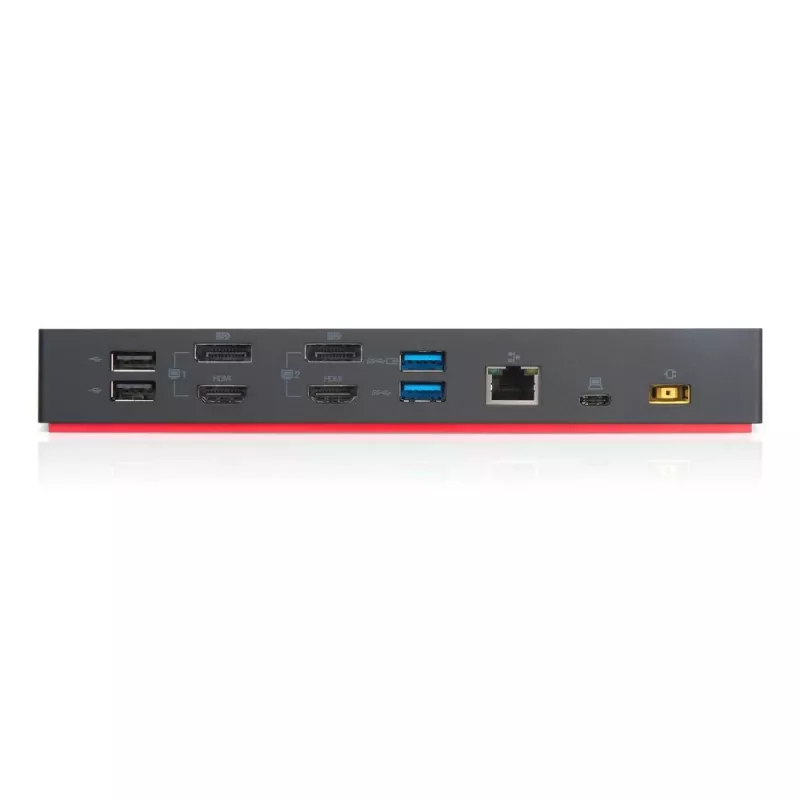

This wired docking station provides three high-speed USB 3.1/3.2 Gen 2 Type-A ports, dual HDMI outputs for up to UHD 4K resolution, and a dedicated RJ-45 Ethernet port for reliable network access. It includes enterprise-class features such as PXE boot and MAC address pass-through for manageability in mixed-PC or shared-desk environments. The compact dimensions (210 mm x 80 mm x 30 mm) and 0.48 kg weight make it suitable for both office and home setups, and the included USB-C to USB-A adapter increases compatibility with older systems.

Suitable for

• Enterprise workstations with mixed PC fleets or hot-desking environments
• Home office setups requiring wired Ethernet and multiple displays
• Users needing additional USB 3.2 Gen 2 Type-A ports for peripherals
• Non-USB-C or non-Lenovo laptops using the included USB-C to USB-A adapter

Key specifications

• Model: ThinkPad Hybrid USB-C with USB-A Dock (MPN 40AF0135DE, EAN 5715063023518)
• Connectivity: Wired docking, USB 3.2 Gen 2 (3.1 Gen 2)
• USB ports: 3 × USB 3.2 Gen 2 Type-A, 2 × USB 2.0
• Video outputs: 2 × HDMI (supports up to dual UHD 4K)
• Ethernet: 1 × RJ-45, up to 1000 Mbit/s
• Power supply: 135 W
• Dimensions: 210 mm × 80 mm × 30 mm; Weight: 0.48 kg
• Colour: Black

How to use

Place the dock on a stable surface near your laptop and connect it to mains power using the supplied 135 W power adapter. Attach your external displays to the HDMI ports, plug peripherals into the USB Type-A ports, and connect your network cable to the RJ-45 port if required. For laptops without a USB-C port, attach the included USB-C to USB-A adapter to the dock cable and connect the adapter to the laptop. If using a ThinkPad, ensure firmware and drivers are up to date to enable rapid charging and manageability features such as PXE boot and MAC pass-through.

Recommendations

For optimal performance, connect displays and high-bandwidth peripherals directly to the dock when possible, keep the dock firmware and laptop drivers updated, and use the supplied 135 W power adapter to ensure sufficient power delivery for charging and connected devices.
