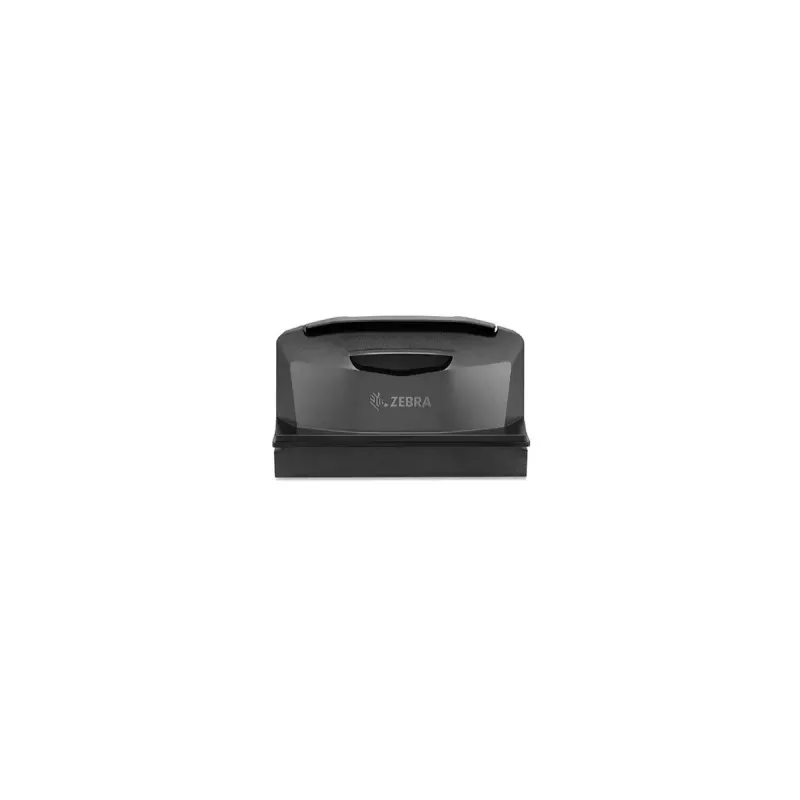

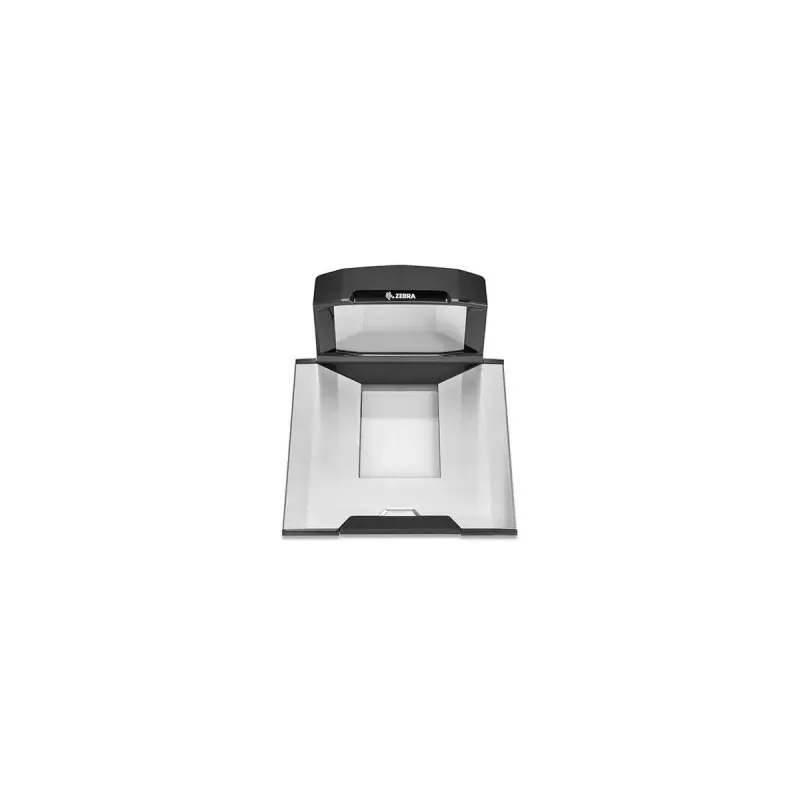

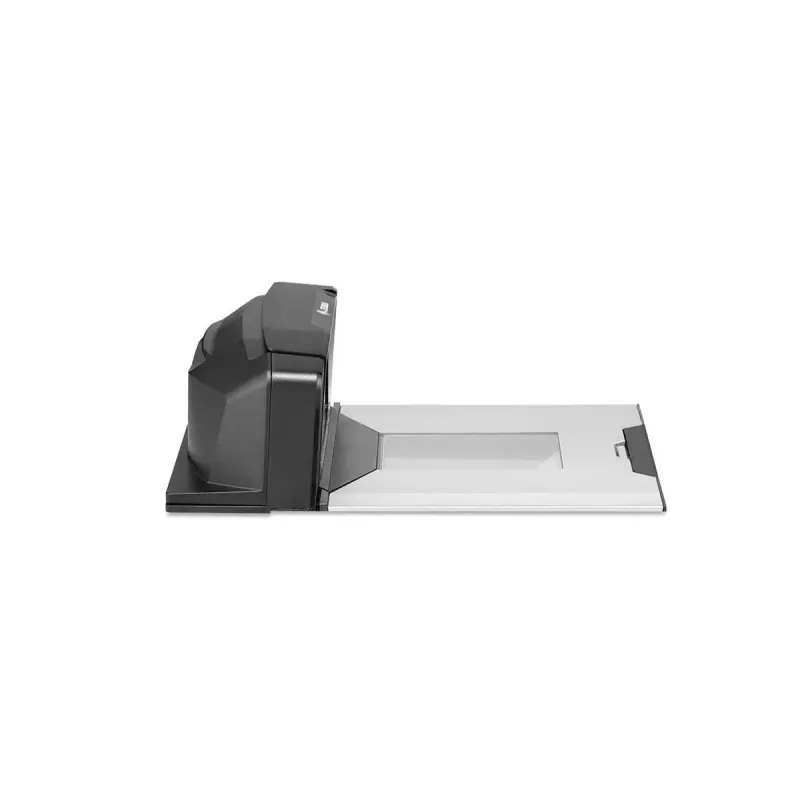

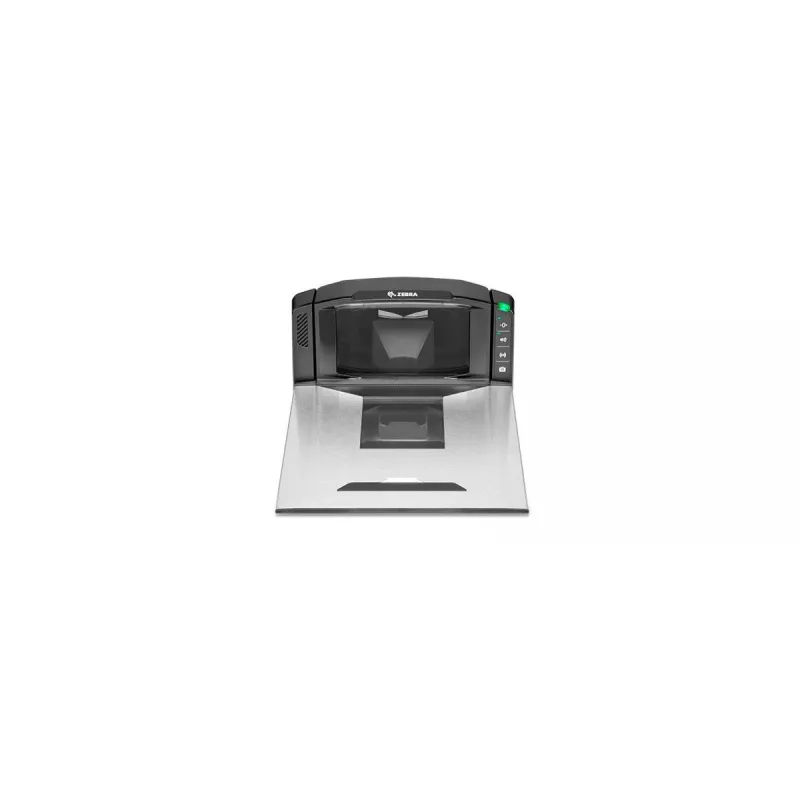

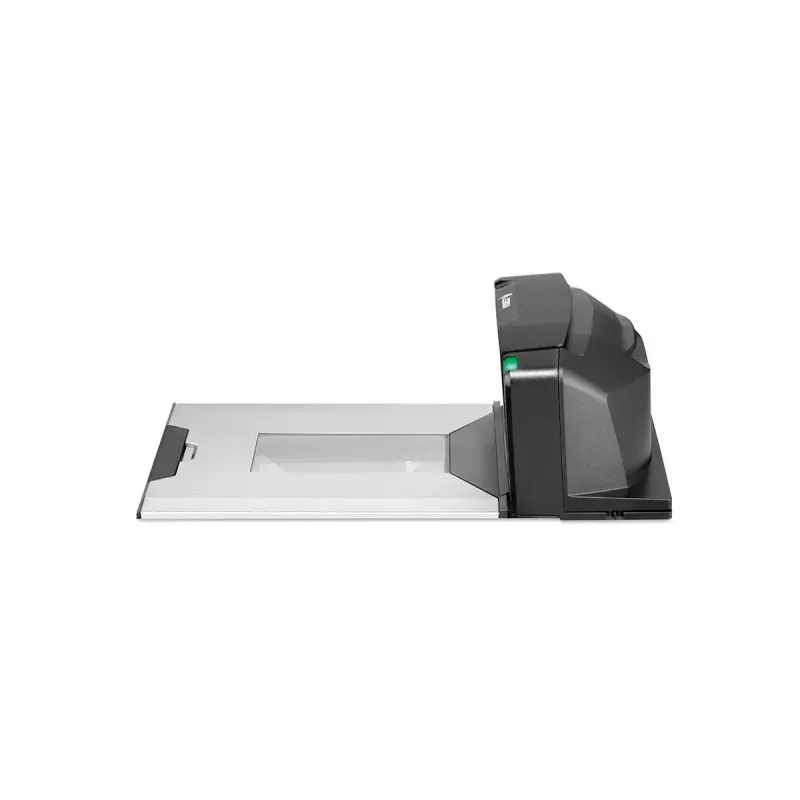

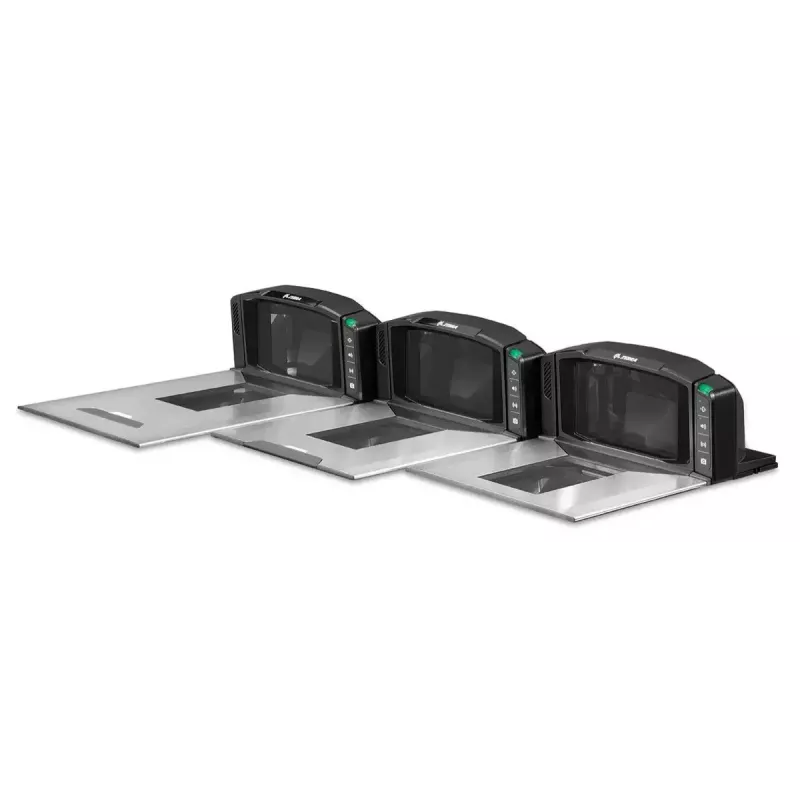

Lettore di codici a barre integrato Zebra MP7000 1D/2D CMOS nero, acciaio inox

The Zebra MP7000 built-in bar code reader is a multi-plane 1D/2D bioptic imager designed for high-volume point-of-sale lanes. Combining a CMOS sensor with wired RS-232, RS-485 and USB connectivity, the unit is supplied in stainless steel and black finishes and includes four operator keys. The MP7000 supports BMP and JPEG image formats and can be powered via AC, RS-232 or USB with a typical power consumption of 5.5 W. Its large scan zone and solid-state construction aim to improve checkout speed and reliability in cashier-manned and self-checkout environments.

Advantages

The MP7000 delivers rapid capture of printed and electronic 1D and 2D barcodes through advanced scanning algorithms and the largest scan zone in its class for true swipe-and-go performance. Solid-state design with no moving parts reduces failure points and lowers maintenance needs, while tool-free access to the upper housing simplifies servicing. The device offers industry-leading total cost of ownership with up to 60% lower power consumption compared with competing devices. An optional customer-side scanner and a 2.3 megapixel color camera expand functionality for coupon, loyalty card scanning and item recognition.

Suitable for

• High-volume supermarket and grocery checkout lanes
• Cashier-manned POS lanes and self-checkout stations
• Retail environments requiring fast barcode throughput and low maintenance

Key specifications

• Scanner type: Multi-plane 1D/2D bioptic imager
• Sensor type: CMOS
• Supported barcode symbologies: Common linear 1D (EAN, UPC, Code 128, Code 39, GS1 DataBar, etc.) and 2D (QR, Data Matrix, PDF417, Aztec, Han Xin)
• Connectivity: Wired — RS-232, RS-485, USB
• Image formats: BMP, JPEG
• Power: AC, RS-232 or USB; typical consumption 5.5 W
• Weight: 5.5 kg
• Dimensions (approx.): 292 mm width × 102 mm depth
• Color: Stainless steel and black
• Controls: 4 keys
• Optional: Customer-side scanner; 2.3 MP color camera for product recognition

How to use

Install the MP7000 into the checkout counter opening designed for embedded readers, connecting power and host interfaces via the supported wired ports (RS-232, RS-485 or USB). Position the unit so the largest scan zone is accessible to cashiers and, if fitted, the optional customer-side scanner is reachable by shoppers. Use the front operator keys to configure basic settings or access diagnostic functions. Scan conventional printed barcodes or present electronic barcodes on mobile devices within the scan field for immediate capture.

Recommendations

For reliable long-term operation, keep the scan window clean and avoid placing strong direct light sources that cause glare across the scan zone. Use the device’s solid-state design and tool-free upper housing to schedule quick maintenance and reduce downtime. When deploying in self-checkout, enable the customer-side scanner to reduce cashier interactions and streamline coupon and loyalty card scanning.
