Lettore di codici a barre portatile Equip scanner 2D wireless con supporto

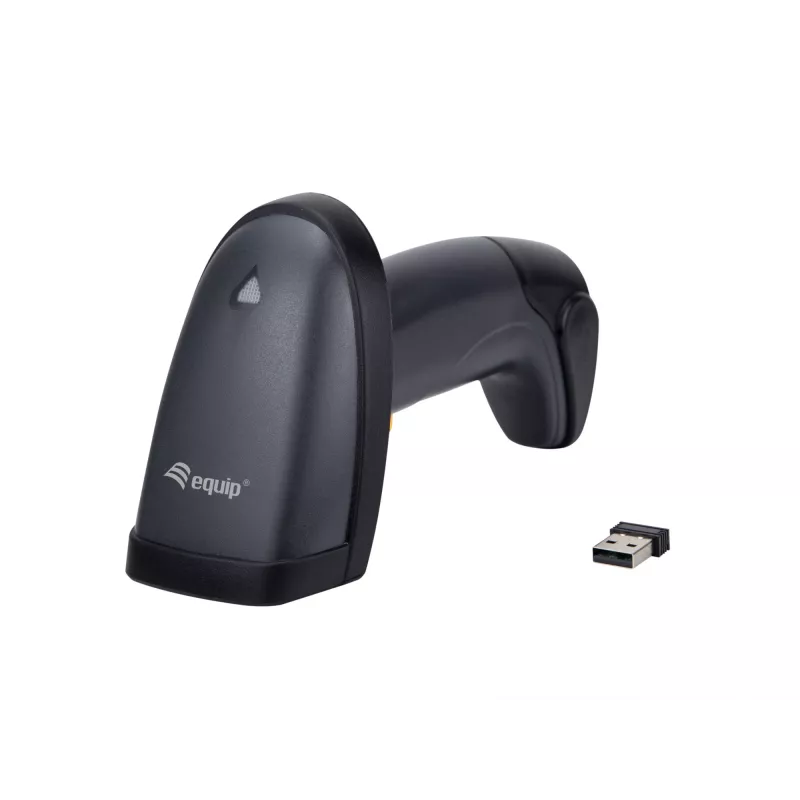

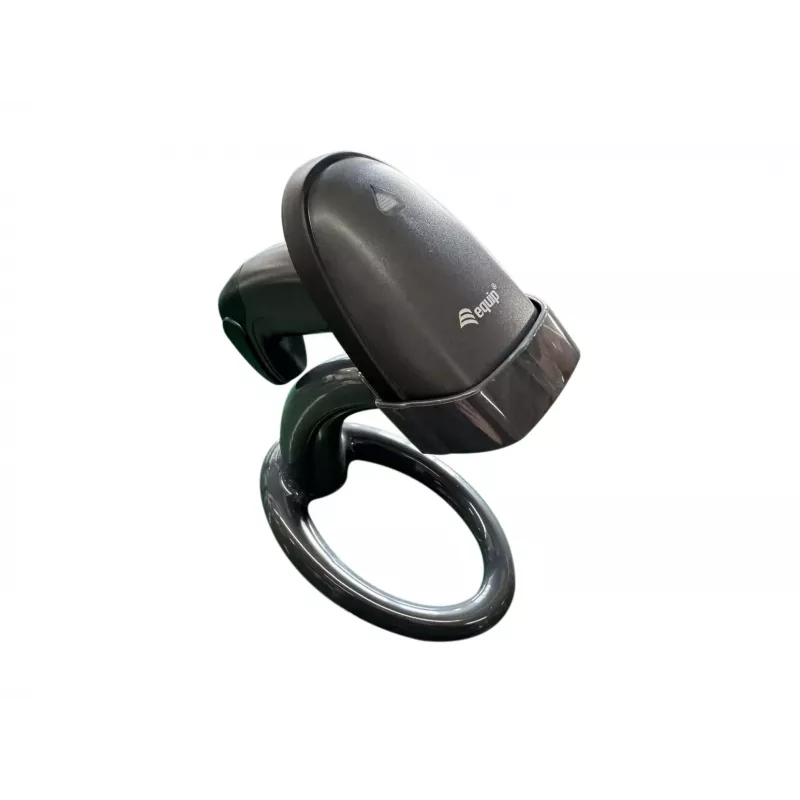

The Handheld Barcode Reader Equip Wireless 2D Barcode Scanner with Stand is a compact wireless scanner designed to read both 1D and 2D barcodes. It uses RF wireless connectivity (2400 MHz) to allow freedom of movement and includes a stand for hands-free operation. The scanner has a durable ABS housing with an IP54 rating, a built-in Lithium‑Ion battery, and a lightweight design (187 g) suitable for retail, warehousing and inventory tasks.

Advantages

The scanner supports a wide range of linear (1D) and 2D codes including QR Code and Data Matrix, provides a high read rate (up to 220 reads/s) and a long working distance (up to 1500 mm). Wireless connectivity simplifies integration into existing systems and the included stand enables efficient hands-free scanning to reduce operator fatigue. The ABS housing and IP54 protection increase durability in typical commercial environments.

Suitable for

• Retail point-of-sale scanning
• Warehouse receiving and picking
• Inventory counting and stock management
• Package and label verification

Key specifications

• Scanner type: 1D/2D
• Sensor type: LED
• Working distance: up to 1500 mm
• Read rate (max): 220 reads/s
• Connectivity: Wireless (RF 2400 MHz)
• Weight: 0.187 kg
• Housing material: ABS (Acrylonitrile butadiene styrene)
• Ingress protection: IP54
• Supported 1D codes: Codabar, Code 11, Code 128, Code 39, Code 93, EAN‑128, EAN‑13, EAN‑8, GS1 DataBar, ISBN, ISSN, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Plessey, UPC‑A, UPC‑E
• Supported 2D codes: Data Matrix, PDF417, QR Code
• Colour: Black

How to use

Charge the built-in Lithium‑Ion battery before first use and place the base station or stand on a stable surface. Power on the scanner and pair it with the host system via the RF wireless connection according to the supplied pairing instructions. For handheld scanning, aim the scanner at the barcode and press the trigger or use automatic scan mode if enabled. For hands-free operation, position barcoded items in front of the scanner while it is mounted in the stand.

Recommendations

For reliable performance, keep the scanner lens clean and avoid direct exposure to strong liquids. Use the stand for high-volume operations to reduce operator fatigue, and verify pairing with the host system after significant changes to the workspace or wireless environment.
