Lettore di codici a barre portatile Zebra DS2208 1D/2D LED nero, bianco

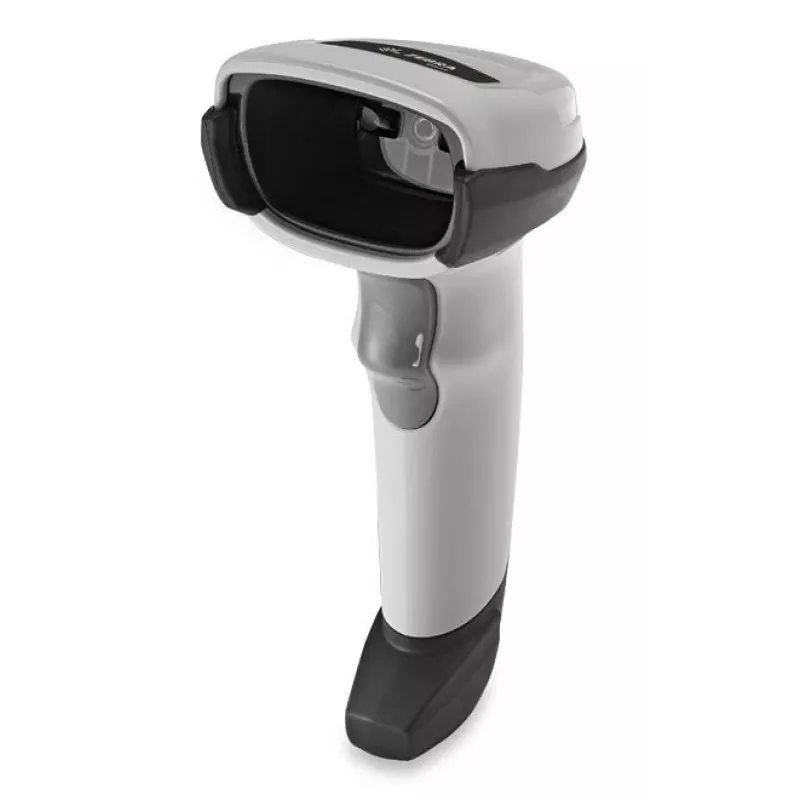

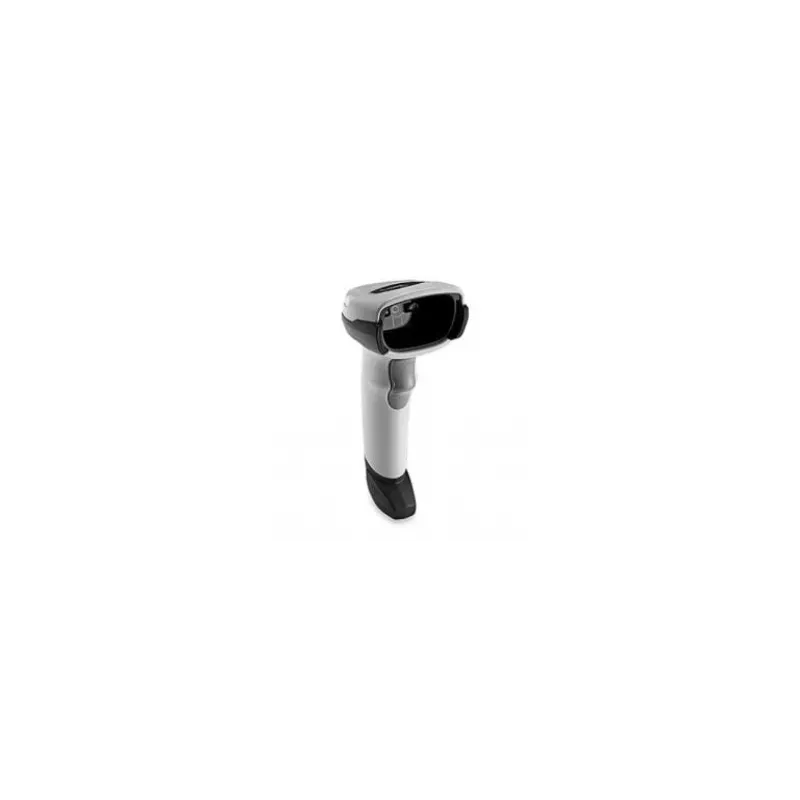

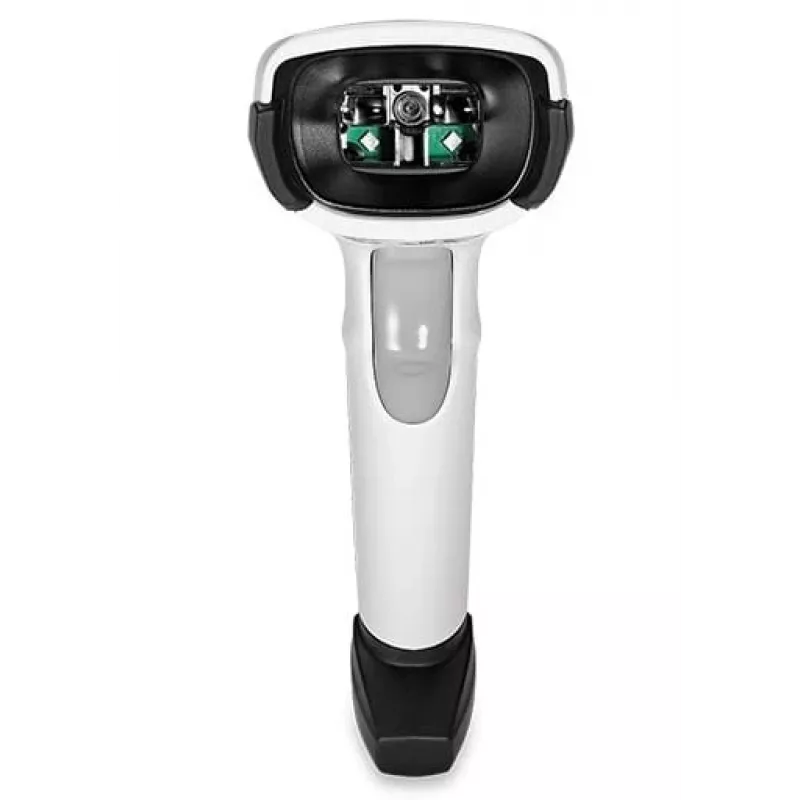

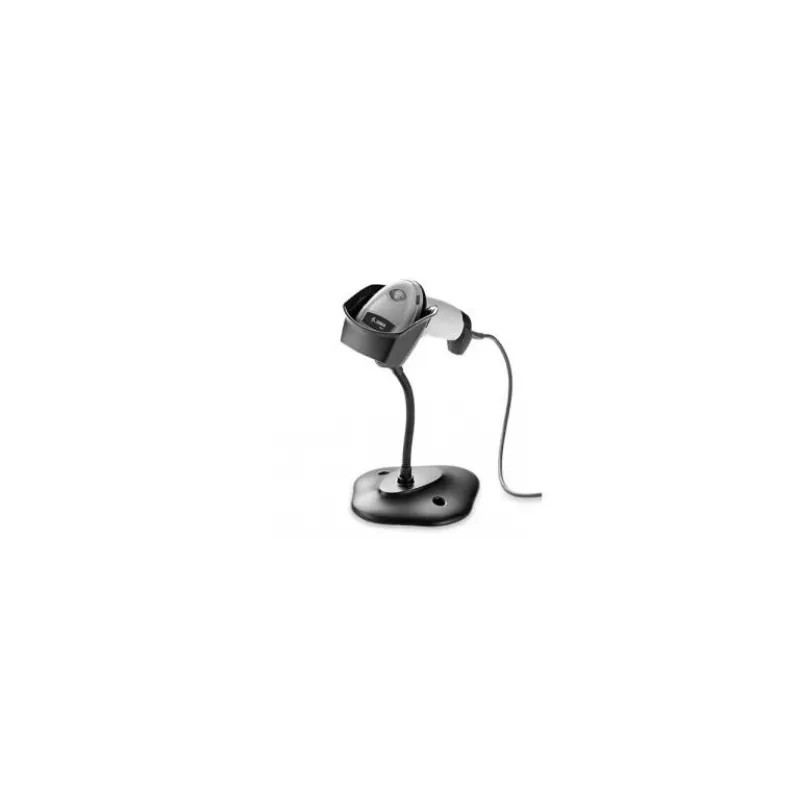

The Zebra DS2208 handheld bar code reader is a compact 1D/2D imager designed for point-of-sale and general scanning tasks. It reads both linear and 2D barcodes, connects via wired interfaces (USB, RS-232, RS-485) and combines LED sensor technology with a lightweight, durable design. Available in corded (DS2208) and cordless-style model names in the series, the scanner supports common retail workflows while remaining cost-effective and simple to deploy.

Advantages

The DS2208 delivers reliable capture of 1D and 2D codes, reducing checkout exceptions caused by unreadable barcodes. Its LED sensor and industry-standard barcode support ensure fast, accurate scanning of printed and electronic codes. With a compact form factor, IP42-rated durability and multiple wired connectivity options, the device balances performance and affordability for everyday POS use.

Suitable for

• Retail point-of-sale scanning of product barcodes and mobile coupons
• Small and medium-sized business checkout counters
• Inventory checks and price verification tasks
• Any environment needing a lightweight, wired 1D/2D scanner

Key specifications

• Scanner type: 1D/2D imager
• Sensor type: LED
• Working distance: up to 368 mm
• Connectivity: Wired (USB, RS-232, RS-485)
• Weight: 0.1616 kg
• Supported 1D codes: Code 93, UPC, MSI, Interleaved 2 of 5, GS1 DataBar Expanded, EAN-13, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: PDF417, QR Code, TLC-39, Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code
• Product colour: White, Black
• Power: 5 V, 250 mA consumption

How to use

Connect the DS2208 to your POS terminal using the appropriate wired interface (USB, RS-232 or RS-485) and install any required drivers or configuration utility. Hold the scanner so the aiming pattern covers the barcode, then press the trigger to capture the code. For mobile coupons or phone-displayed codes, align the imager with the screen and scan in the same manner. Refer to the user manual for host configuration and programming of symbologies.

Recommendations

For consistent performance, keep the scanner window clean and allow adequate ambient lighting when scanning mobile device screens. Choose the corded DS2208 model for fixed checkout stations and verify interface compatibility with your POS system before installation.
