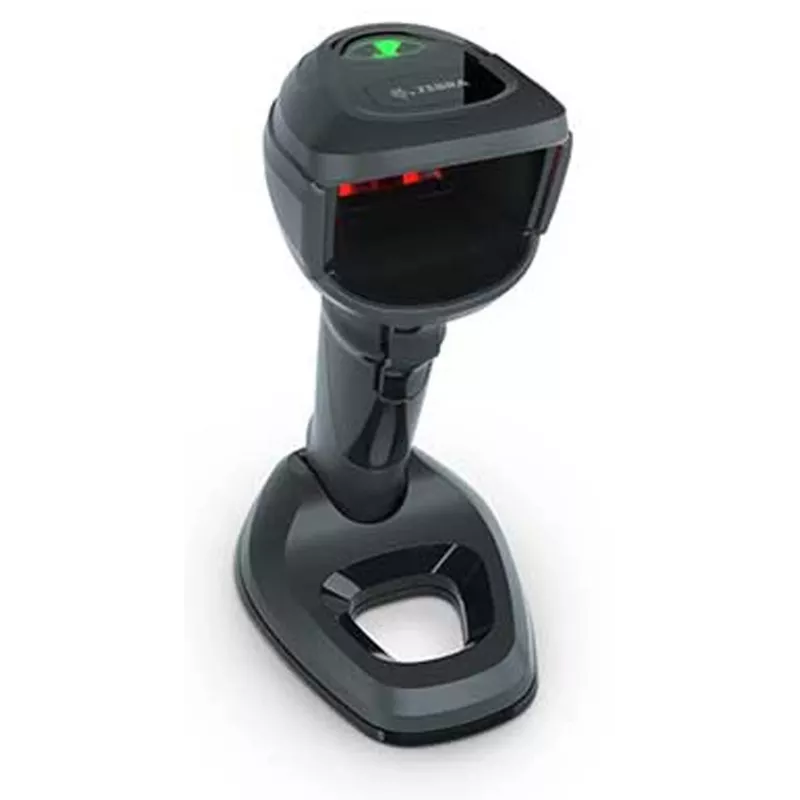

Lettore di codici a barre portatile Zebra DS9908-SR 1D/2D nero

The Zebra DS9908-SR handheld bar code reader is designed for laboratory and retail environments where high-density, curved and color-coded barcodes must be read reliably. This hybrid presentation imager combines handheld and hands-free operation in a single, compact unit with wired USB connectivity and an IP52 rating for dust and moisture protection. The built-in megapixel sensor, 800 MHz processor and PRZM Intelligent Imaging technology enable fast, accurate capture of both 1D and 2D barcodes on microscope slides, vials, bottles and specimen trays.

Advantages

The DS9908-SR provides consistent first-time capture of small and dense barcodes, including curved and color-coded codes, thanks to white illumination LEDs and a high-density focus. Its hybrid design allows seamless switching between handheld scanning and hands-free presentation modes without replacing the scanner, while a sturdy one-piece housing and ergonomic shape support extended use. Management tools and auto-host-detect cables simplify remote configuration, firmware updates and integration with host systems.

Suitable for

• Laboratory sample tracking (microscope slides, biopsy cassettes)
• Pharmacy and medication verification (bottles, vials)
• Retail point-of-sale and inventory scanning
• Specimen tray and cassette identification

Key specifications

• Scanner type: 1D/2D imager
• Supported 1D barcodes: U.P.C., Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417
• Supported 2D codes: MaxiCode, Han Xin, Data Matrix, Composite Codes, Aztec Code, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
• Connectivity: Wired (USB)
• Processor & sensor: 800 MHz microprocessor and megapixel sensor with PRZM Intelligent Imaging
• Environmental rating: IP52 (dust and moisture protection)
• Weight: 0.33 kg
• Product colour: Black

How to use

Connect the DS9908-SR to your host system using the supplied USB cable; the scanner supports auto-host-detect for correct interface selection. For handheld use, grip the ergonomic housing and aim the imager at the barcode until a tone or LED confirms a successful read. For hands-free mode, place the scanner in its presentation stand and present barcodes to the scanning window. Use the management tools provided to configure data formatting, enable or disable symbologies, and apply firmware updates as needed.

Recommendations

Position the barcode within the scanner’s field of view and ensure illumination is not blocked for optimal first-pass reads; clean the scanning window regularly and prefer USB wired connection in environments requiring stable host communication.
