Lettore di controllo accessi Hikvision DS-K1T805MBWX Basic grigio 12V 1A

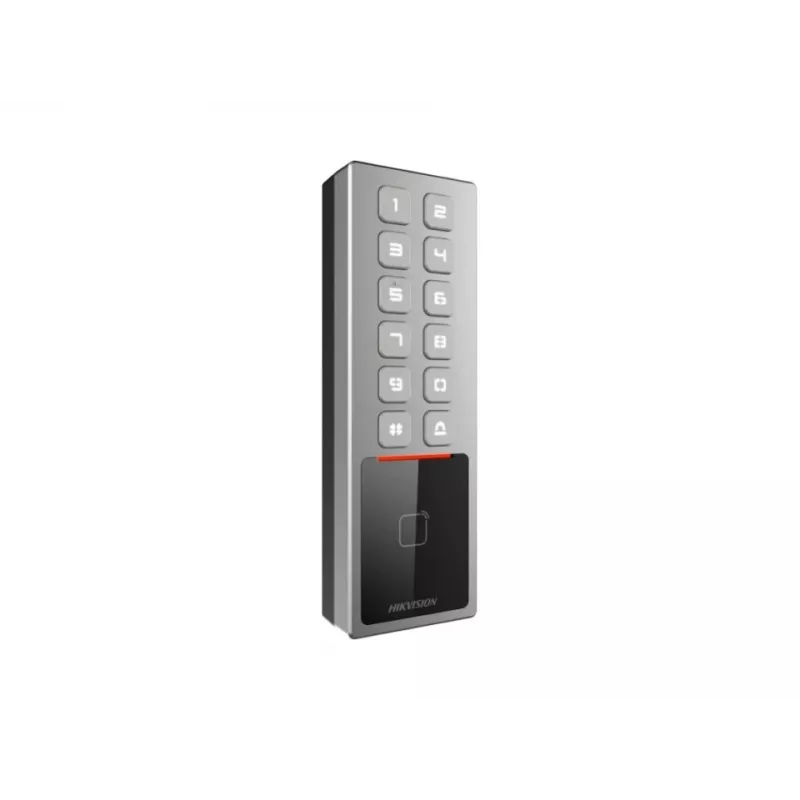

The Hikvision DS-K1T805MBWX Basic Grey is a compact card terminal designed for non-biometric access control. It supports card reading combined with PIN code entry to provide reliable, basic access management for a variety of indoor and outdoor installations. The unit runs on Linux, connects via Ethernet at 10/100 Mbit/s, requires a 12 V DC input and has a power consumption of 12 W.

Advantages

The reader offers a compact, weather-resistant design suitable for many mounting locations and supports both card and PIN authentication for two-factor-like control without biometric components. Its Ethernet connectivity and Linux-based firmware provide stable network integration and straightforward deployment in existing access control systems. Low power requirements simplify installation and power provisioning.

Suitable for

• Small and medium office entrances
• Residential gating and community access points
• Utility rooms, warehouses, and service doors
• Outdoor access where a basic, non-biometric reader is needed

Key specifications

• Model: Hikvision DS-K1T805MBWX Basic Grey
• Operating system: Linux
• Network: Ethernet 10/100 Mbit/s
• Power input: 12 V DC, 1 A (12 W)
• Form factor: compact card terminal supporting card + PIN
• Manufacturer codes: MPN/EAN 6942160415659

How to use

Mount the reader at the required entry point following local wiring standards. Connect it to the LAN using an Ethernet cable and supply 12 V DC power. Configure network settings and access control parameters via the management interface compatible with Hikvision systems or integrated access controllers. Register cards and assign PINs to users according to your access policies, then test read and PIN functions before regular operation.

Recommendations

Install the reader in a sheltered location if exposed to severe weather, use surge protection on network and power lines where appropriate, and ensure firmware is updated to the latest stable release from the manufacturer for security and compatibility.
