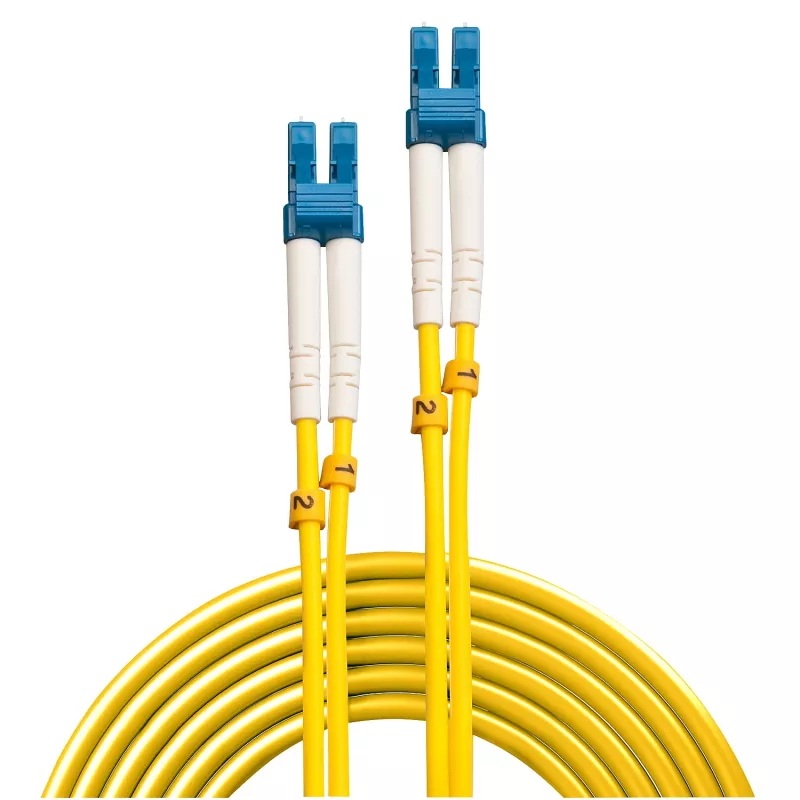

Lindy 15m LC-LC OS2 9/125 cavo patch in fibra ottica

The Lindy 15m LC-LC OS2 9/125 Fibre Optic Patch Cable is designed for high-speed data transmission in telecom and networking environments. It uses a 9 µm singlemode OS2 core and LC connectors on both ends to provide reliable, low-loss connections suitable for long-distance links and current high-bandwidth demands.

Advantages

Ceramic ferrules in the LC connectors reduce signal loss and improve durability. The LC-LC termination ensures compatibility with standard fibre optic equipment and full duplex communication. A 15 m length offers installation flexibility while maintaining the performance characteristics of OS2 singlemode fibre.

Suitable for

• Telecommunications backbone links
• Long-distance high-speed Ethernet and data centre connections
• FTTH and building distribution where singlemode OS2 fibre is required
• Interconnects between optical equipment with LC ports

Key specifications

• Length: 15 m
• Connector type: LC to LC
• Fibre type: OS2 singlemode
• Core/cladding: 9/125 µm
• Duplex: Yes (LC duplex)
• Manufacturer: Lindy, MPN 47455, EAN 4002888474559

How to use

Inspect connector end-faces for cleanliness before installation and clean if necessary using appropriate fibre cleaning tools. Insert the LC connectors into compatible LC ports on networking or telecom equipment until they click into place. Ensure bend radii are maintained according to singlemode fibre guidelines and avoid tight loops. For removal, depress the LC latch and pull straight out to prevent damage.

Recommendations

Store the cable coiled loosely and protect connector end-caps when not in use. Use OS2 singlemode patch cables for links where long-distance, low-attenuation performance is required; verify port types and duplex requirements prior to connection.
