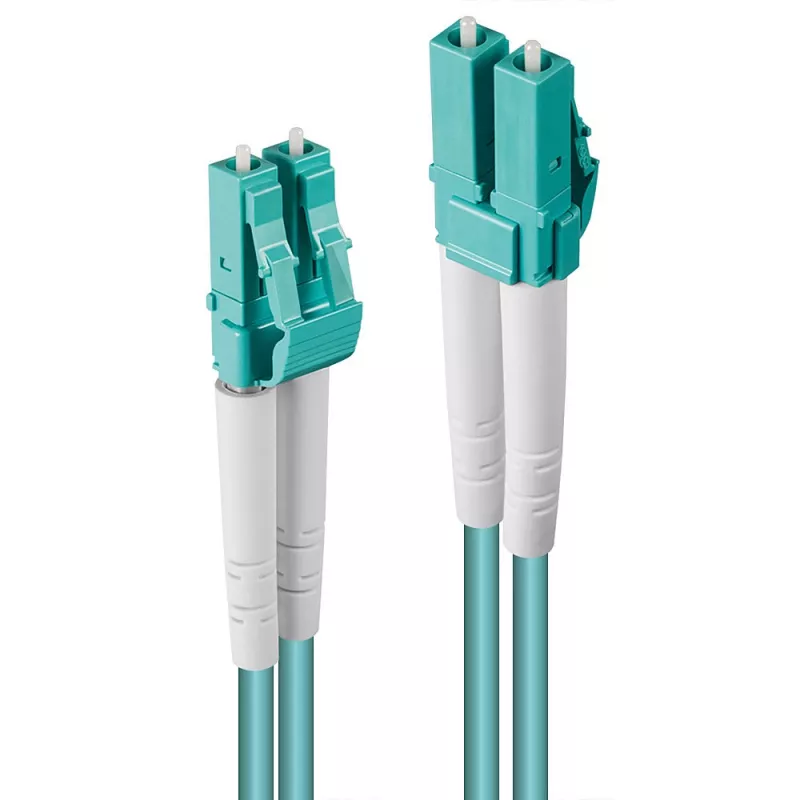

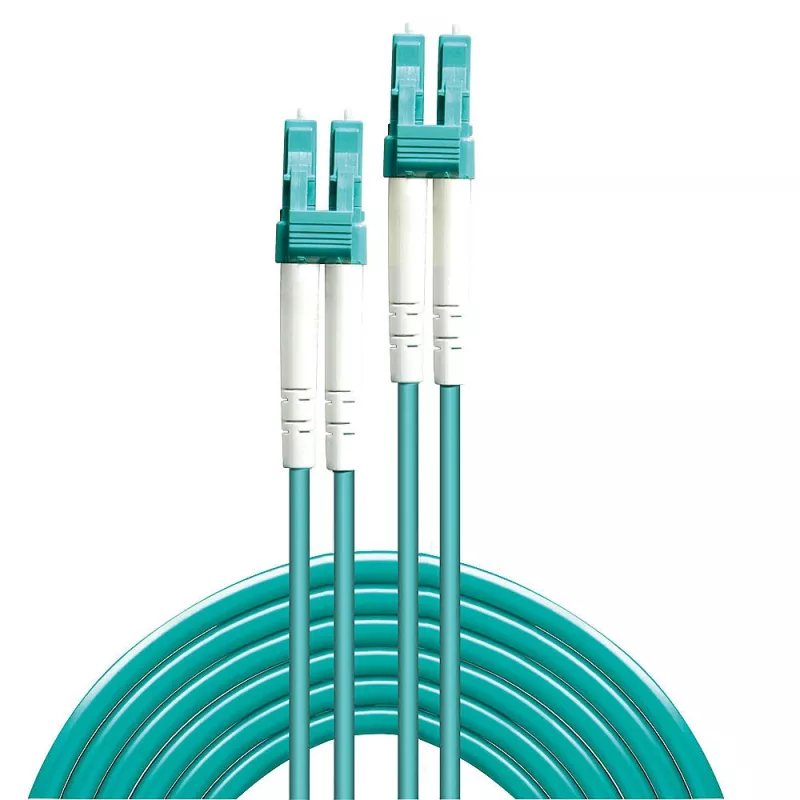

Lindy 200m LC-LC OM3 50/125 cavo patch in fibra ottica

The Lindy 200m LC-LC OM3 50/125 fibre optic patch cable is designed for high-speed data transmission and long-distance links in data centres and network environments. The cable uses OM3 multimode fibre with a 50 µm core diameter and LC connectors on both ends, providing full duplex communication and support for high bandwidth applications.

Advantages

Ceramic ferrule LC connectors reduce signal loss and offer stable, repeatable connections. The OM3 multimode construction supports higher data rates over extended distances compared with lower grade multimode fibres. At 200 metres length, the cable simplifies inter-rack and room-to-room connections without the need for repeaters.

Suitable for

• Data centre uplinks and interconnects
• High-speed LAN and backbone connections
• Server-to-switch and switch-to-switch links
• Telecommunications and enterprise network infrastructure

Key specifications

• Brand: Lindy
• Model / MPN: 46406
• EAN: 4002888464062
• Type: Multimode fibre optic patch cable
• Fiber type: OM3
• Core/cladding: 50/125 µm
• Connector: LC — LC (ceramic ferrule)
• Length: 200 m

How to use

Inspect connector endfaces for cleanliness before installation and clean if necessary using appropriate fibre cleaning tools. Route the cable avoiding sharp bends and excessive tensile load, maintaining the manufacturer’s minimum bend radius. Plug LC connectors into matching LC ports on equipment, ensuring proper alignment and secure latching for stable full duplex links.

Recommendations

Use in structured cabling where OM3 performance is required; avoid kinking or crushing the cable and store coiled with a radius greater than the minimum bend specification. For critical links, test the installed link with an optical tester to verify loss and continuity.
