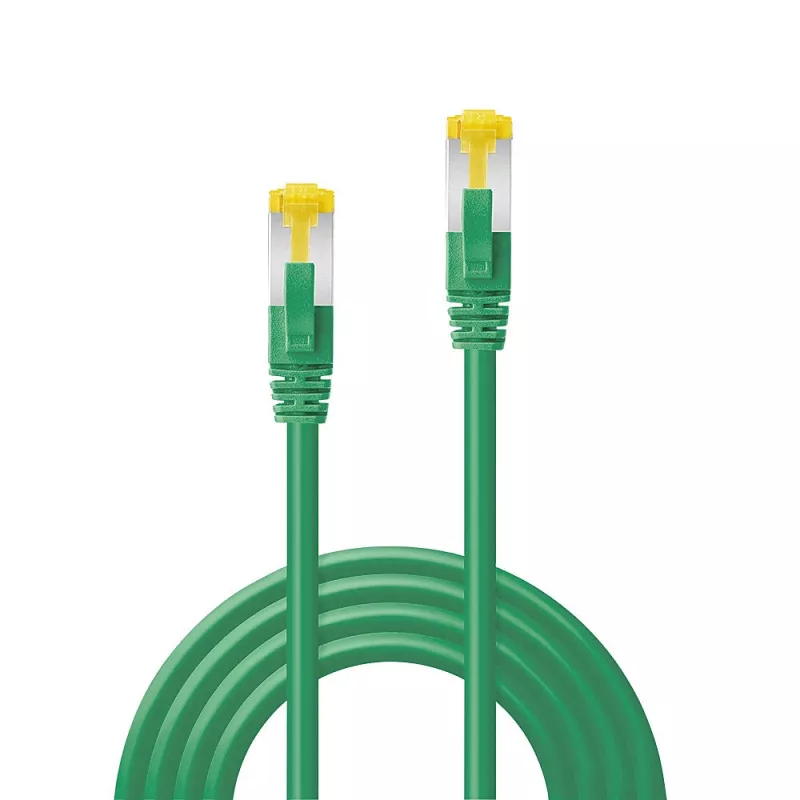

Lindy 47644 Cavo di rete verde 1,5 m Cat7 S/FTP (S-STP)

Cat.7 S/FTP network cable designed for operating frequencies up to 600 MHz, supporting Ethernet standards up to 10GBase-T. The cable uses fully braided shielding with additional foil shielding around each pair (S/FTP) and is individually packaged in a polybag. Gold-plated contacts and a snagless strain relief protect the connector and ensure long-term, corrosion-free connections. Although Cat.7 originally specified GG45, this product uses RJ-45 connectors developed to meet Cat.7 performance; the cable marking may read "Cat.6A S/FTP patch cords with 600MHz raw cable".

Advantages

The S/FTP construction provides high protection against electromagnetic interference and crosstalk, enabling stable transmission at frequencies up to 600 MHz for networks up to 10GBase-T. Gold-plated contacts improve contact reliability and corrosion resistance, while the snagless strain relief reduces the risk of latch damage during installation and removal. Individual polybag packaging protects the cable during storage and transport.

Suitable for

• Data centres and server rooms
• Rack-mounted network and control cabinets
• High-speed 10GBase-T networks
• Patch panels and switch connections requiring S/FTP shielding
• Home or office network installations where reduced interference is required

Key specifications

• Standard: Cat.7 cable material (S/FTP) tested to ISO/IEC 11801
• Bandwidth: up to 600 MHz
• Transmission: up to 10GBase-T

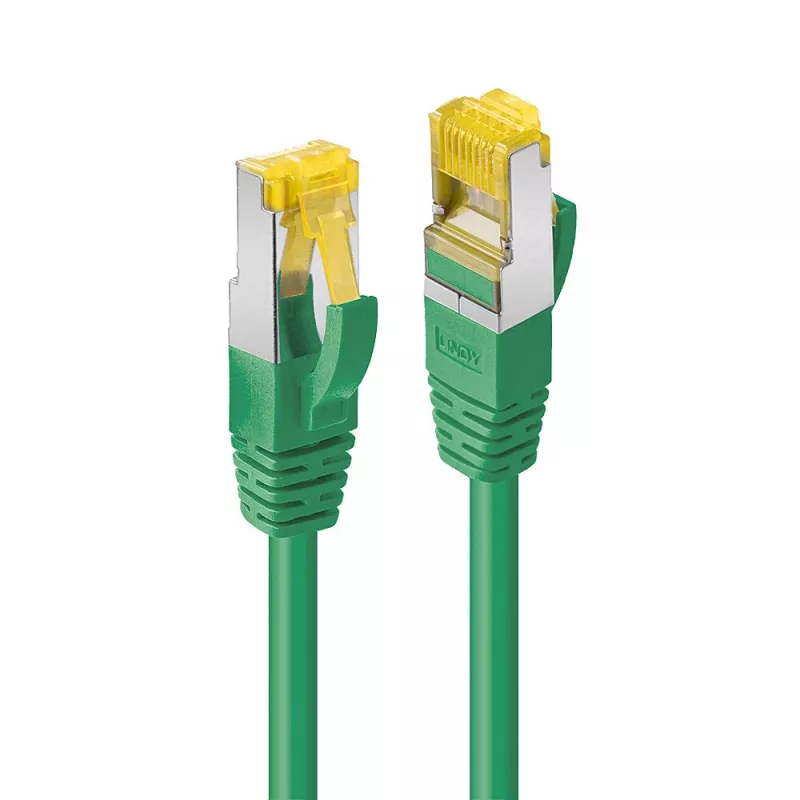

• Connectors: RJ-45 on both ends (nickel/gold plated contacts)
• Shielding: braided overall shield plus foil around each pair (S/FTP)
• Length (this product): 1.5 m
• Colour: Green

How to use

Connect one RJ-45 plug to the network port of your switch, patch panel or device and the other to the corresponding port. Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the cable to avoid tight bends and excessive tension; use cable management in racks or along walls to maintain bend radius and prevent strain on the connectors.

Recommendations

For optimum performance in 10GBase-T environments, use this S/FTP cable in shielded or grounded installations where possible and avoid running the cable in close parallel to high-power electrical lines to minimise interference.
