Livella laser Bosch GCL 2-15 Professional

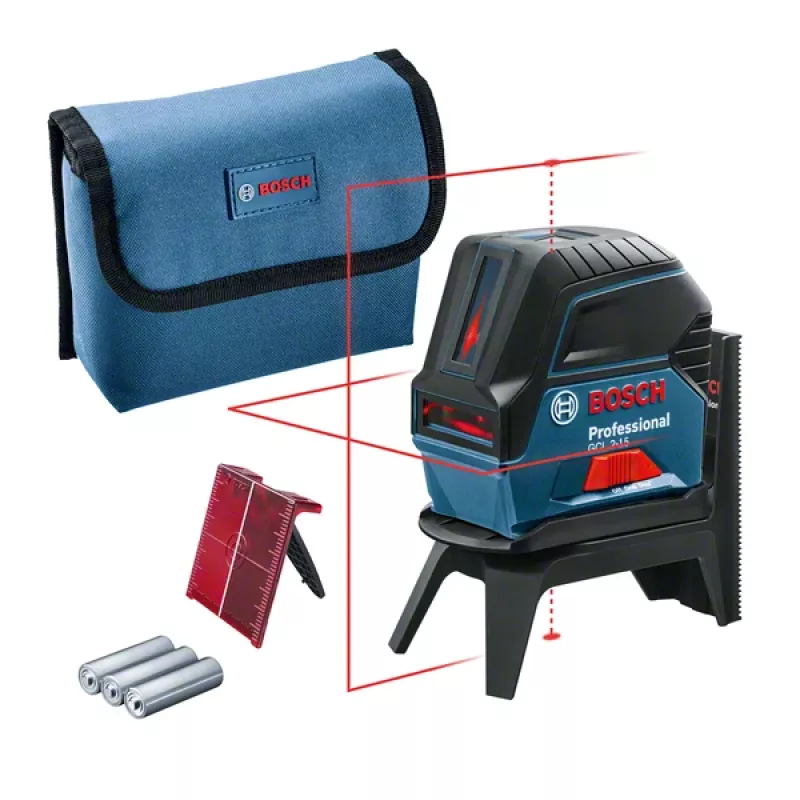

The Bosch GCL 2-15 Professional is a compact combi laser level designed for short-distance levelling and alignment tasks. It projects horizontal and vertical laser lines plus two centred plumb points, supports quick point transfers and aligns easily on the rotating RM 1 Professional mount. The unit is self-levelling and protected against dust and splashes with an IP54 rating.

Advantages

The GCL 2-15 Professional offers a working range for line projection up to 15 m and self-levels in under 4 seconds, which speeds up layout work. Its two centred plumb points enable precise transfer applications. The device is lightweight and portable (operates on a 1.5 V battery, weight approx. 490 g) and features an integrated pendulum lock for safe transport. Robustness is increased by IP54 dust and splash protection, and the product is compatible with the RM 1 Professional rotating mount for simple alignment.

Suitable for

• Mounting shelves and windows
• Installing drainage pipes and basic plumbing alignments
• Laying floors and aligning tiles over short distances
• Light point transfer tasks and simple interior fit-outs

Key specifications

• Brand: Bosch
• Model: GCL 2-15 Professional (MPN 0 601 066 E02)
• EAN: 3165140837224
• Projection range (lines): up to 15 m
• Self-levelling time: < 4 s
• Protection class: IP54 (dust and splash water protection)
• Power supply: 1.5 V battery
• Weight: approx. 490 g

How to use

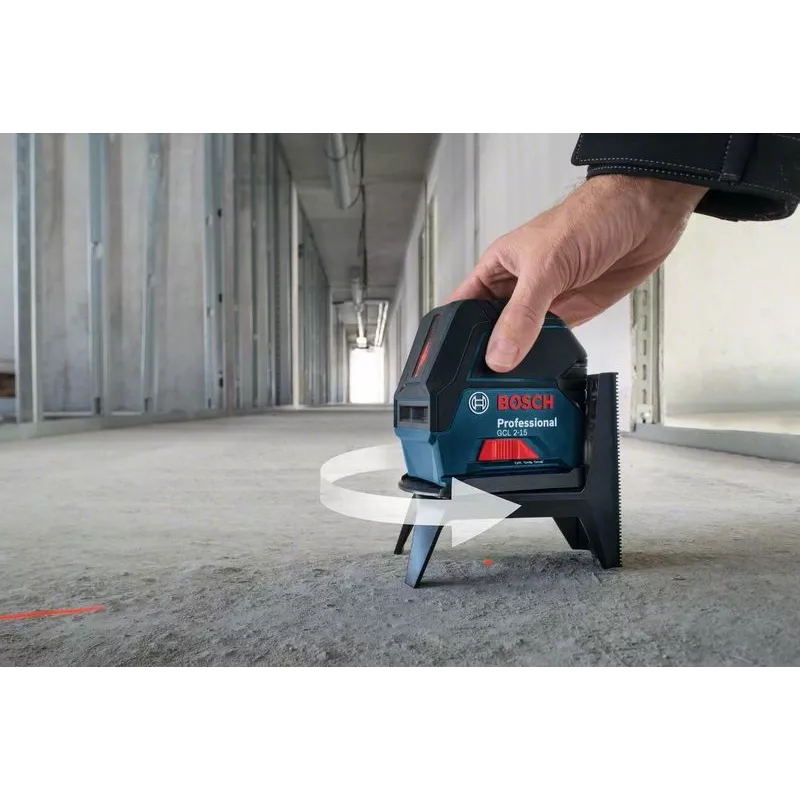

Place the GCL 2-15 on a stable surface or attach it to the RM 1 Professional rotating mount using the slide mechanism. Switch on the device and allow the pendulum to self-level (under 4 seconds). Use the horizontal and vertical lines to align fixtures or the two centred plumb points for point transfers. When transporting the unit, engage the pendulum lock to protect the pendulum mechanism. Replace batteries as needed according to usage and the manufacturer’s battery recommendations.

Recommendations

For best results in short-distance interior tasks, position the laser close to the working area (within the specified 15 m range) and use the RM 1 Professional mount for fine rotational alignment. Keep the laser and lenses clean and dry, and store the device with the pendulum locked during transport.
