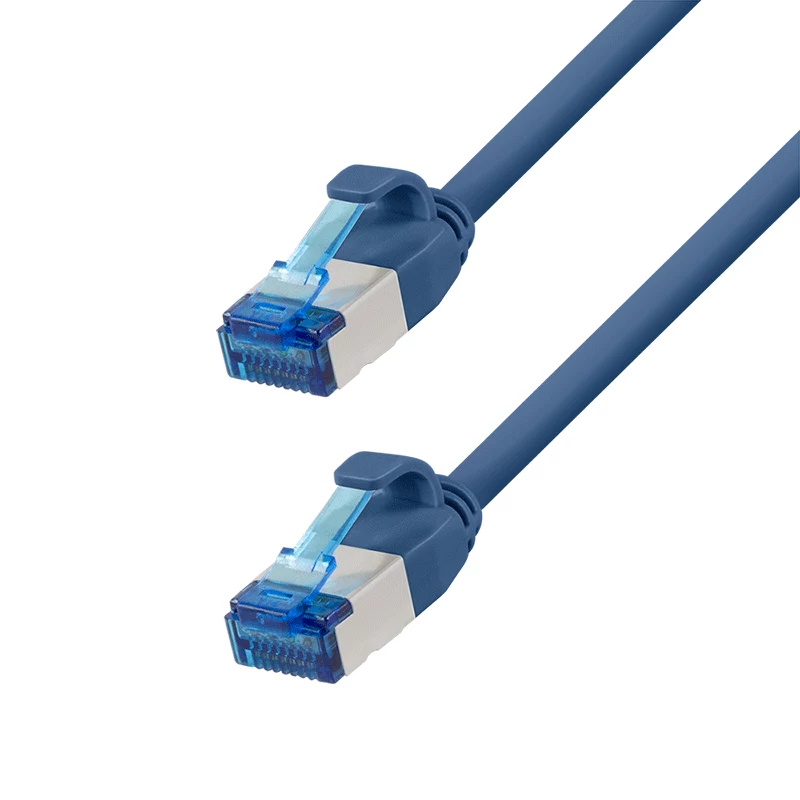

LogiLink Cat.6A Slim S/FTP LSZH cavo patch, blu, 5 m, SlimLine

Experience 10 Gigabit Ethernet performance in a cable that's 30% slimmer than standard Cat.6A—the LogiLink SlimLine CP5076S delivers 500 MHz bandwidth and S/FTP shielding in a low-smoke, halogen-free jacket.

Overview

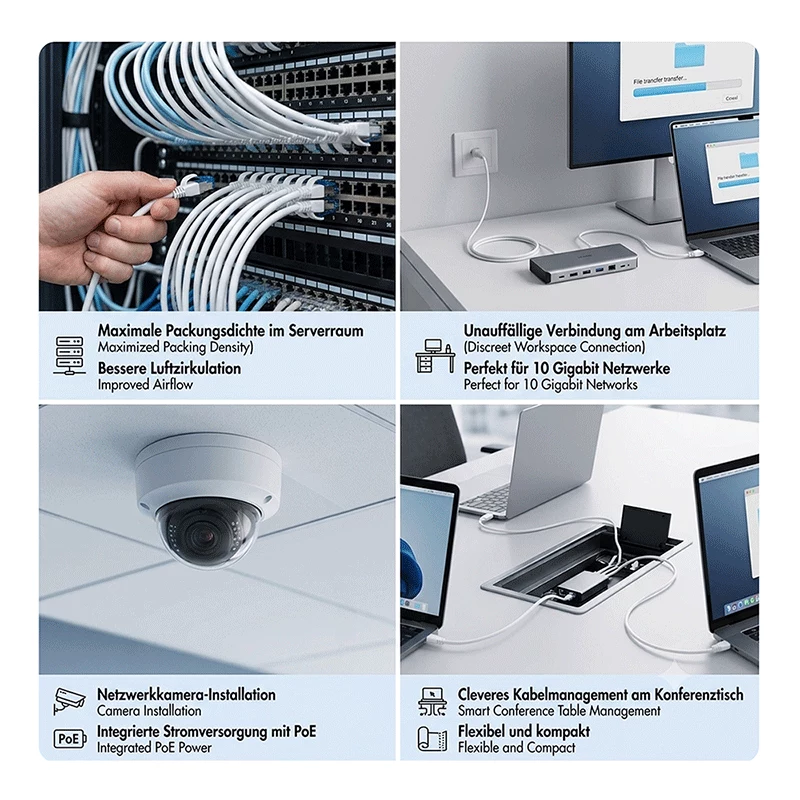

The LogiLink CP5076S is a premium Cat.6A patch cable engineered for high-density data center and office environments. Its ultra-slim 3.8 mm diameter and snagless molded boots allow easy routing through cable managers and tight spaces, while the S/FTP construction (foiled twisted pairs plus overall braid) provides superior immunity to EMI/RFI. The LSZH jacket ensures safety in case of fire, emitting very low smoke and no toxic halogens.

What stands out

• 10 Gbps data transfer rate over 500 MHz bandwidth

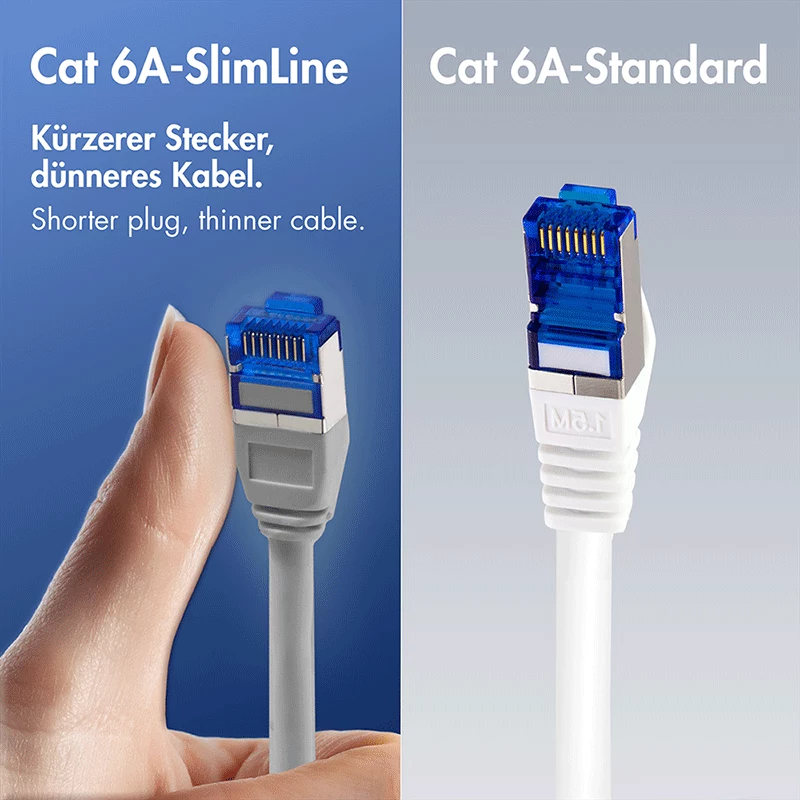

• Ultra-slim 3.8 mm diameter for high-density patching
• S/FTP shielding with gold-plated contacts (50µ)
• LSZH jacket: low smoke, zero halogen, flame retardant
• Snagless molded boots protect the locking tab
• Stranded 28 AWG copper conductors for flexibility

Technical details

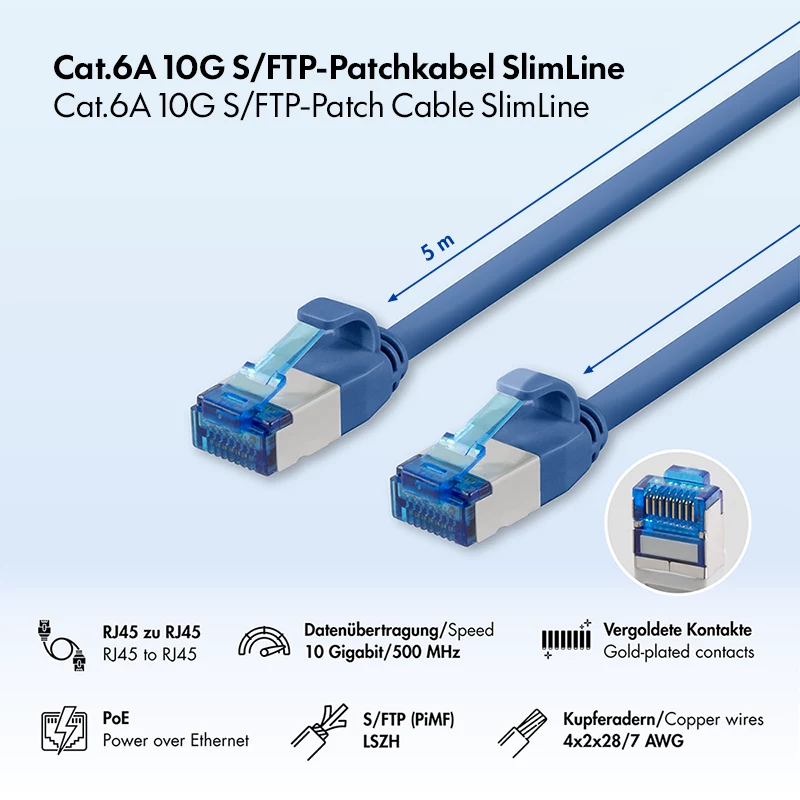

• Cable type: Cat.6A S/FTP patch cable
• Length: 5.00 m
• Colour: Blue
• Connectors: RJ45 male to RJ45 male, 50µ gold plated
• Conductor: 28 AWG stranded copper, 4 pairs
• Wiring: T568B
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS
• Halogen-free: Yes

Our verdict

For professionals who need reliable 10G links without bulky cabling, the LogiLink SlimLine CP5076S is an excellent choice—combining performance, safety, and space efficiency.
