LogiLink Cat.7 600 MHz cavo di installazione 23 AWG CCA, S/FTP 30 m, arancione

Electromagnetic interference and alien crosstalk can cripple high-speed network performance in offices, data centers, and industrial settings. This LogiLink Cat.7 installation cable eliminates those issues with S/FTP shielding and 600 MHz bandwidth, ensuring reliable 10 Gigabit Ethernet over distances up to 30 meters. Its solid CCA conductors and LSZH orange jacket make it a safe, cost-effective backbone for structured cabling.

Who is it for

Network installers, IT administrators, and system integrators who need a dependable Cat.7 cable for high-speed backbone connections, PoE applications, and future-proofing network infrastructure. It is also suitable for home users setting up 10G networks or demanding multimedia streaming.

Main features

• Cat.7 performance with 600 MHz bandwidth and 10GBASE-T support

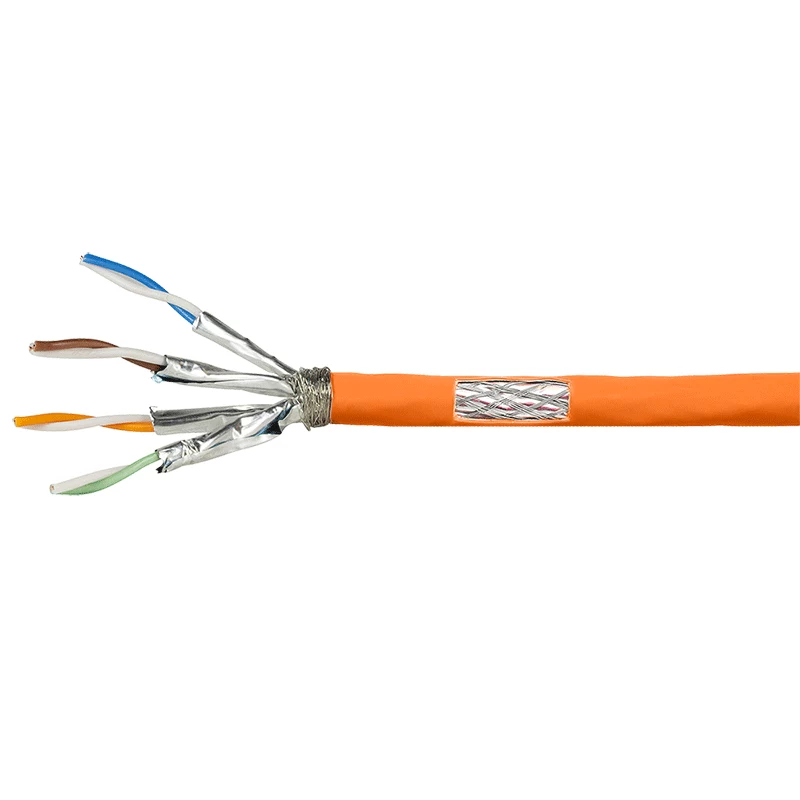

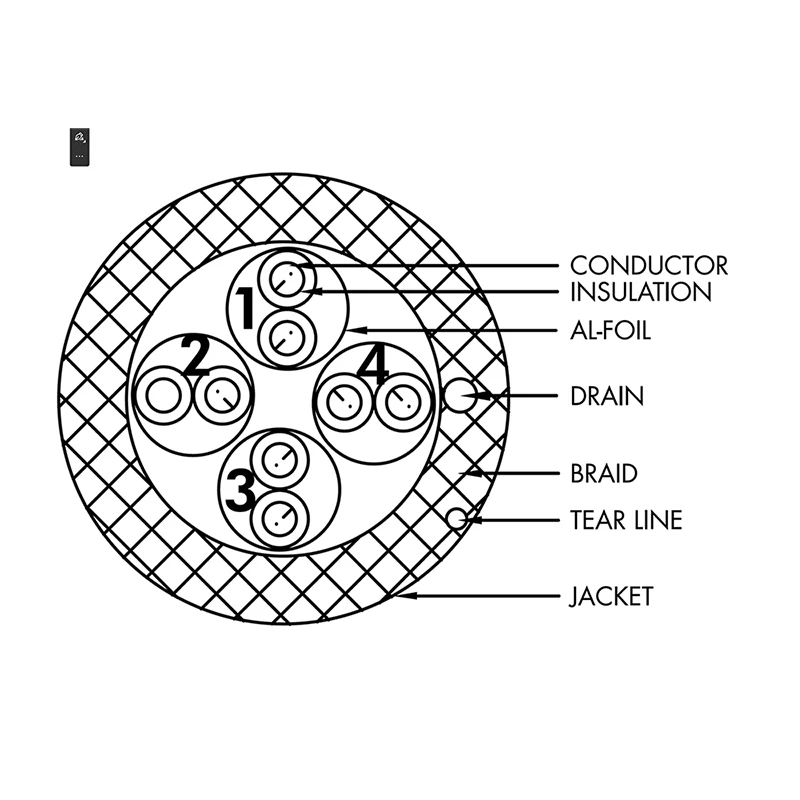

• S/FTP shielding: each pair individually wrapped in aluminum foil (PIMF) plus overall tinned copper braid
• 23 AWG solid CCA conductors for stable signal transmission over long distances
• LSZH (Low Smoke Zero Halogen) orange jacket for safety in public and commercial spaces
• Complies with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards
• 30-meter length ideal for longer runs between patch panels, wall outlets, and active equipment

Specifications

• Cable Category: Cat.7
• Shielding Type: S/FTP (Screened Foiled Twisted Pair)
• Conductor Material: CCA (Copper Clad Aluminum)
• Wire Gauge: 23 AWG
• Frequency Bandwidth: 600 MHz
• Cable Length: 30 m
• Jacket Color: Orange
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Conductor Type: Solid
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Impedance: 100 Ohm
• Number of Pairs: 4
• Pair Shielding: Aluminium Foil (PIMF)
• Overall Shielding: Tinned Copper Braid
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Application: Structured Cabling, Installation
• Outer Diameter: Approx. 7.5 mm
• Flame Retardancy: IEC 60332-1
• Operating Temperature: -20°C to +60°C

Tips

For best performance, avoid sharp bends and maintain the minimum bend radius. Use proper cable management to prevent stress on connectors. When installing in plenum spaces, verify local fire codes for LSZH compliance.
