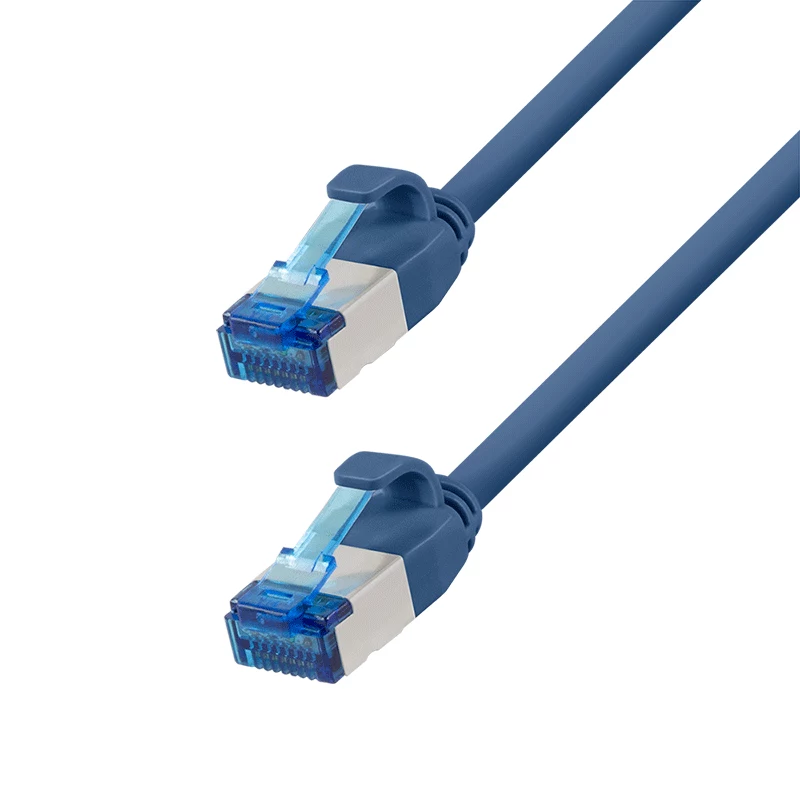

LogiLink Cavo Patch Cat.6A S/FTP LSZH SlimLine, 20 m, Blu

Standard Cat.6A cables are often thick and stiff, but the LogiLink SlimLine patch cable delivers full 10-Gigabit performance in an ultra-slim 3.8 mm profile. This 20-meter blue cable is engineered for high-density patching and tight cable management without compromising shielding integrity or signal quality.

Highlights

• Cat.6A performance up to 500 MHz and 10GBASE-T Ethernet
• S/FTP shielding with individually foiled pairs (PiMF) and overall braid for superior EMI immunity

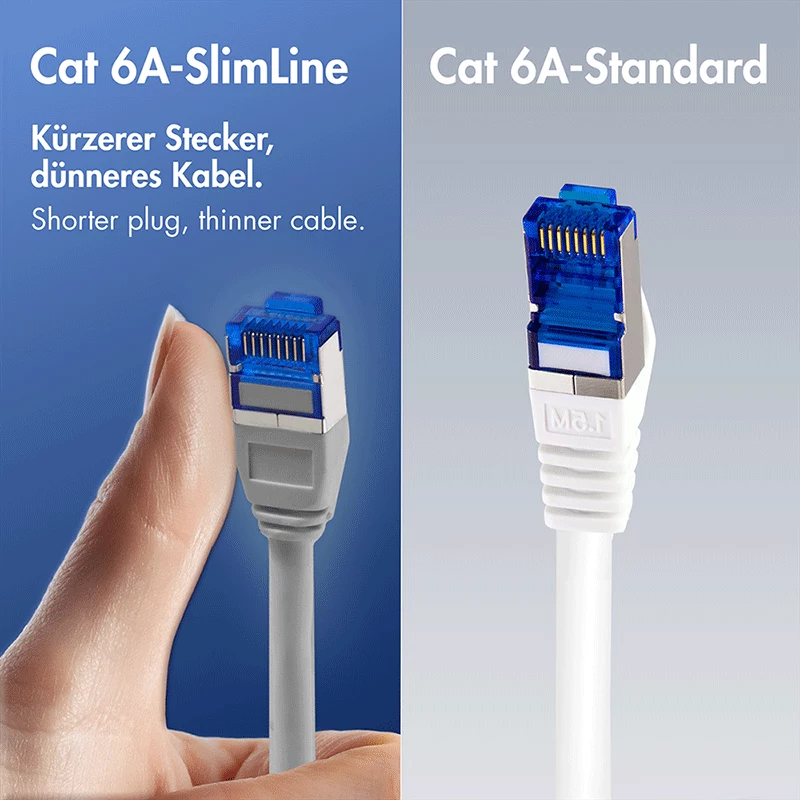

• Ultra-slim 3.8 mm outer diameter – ideal for high-density patching
• LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Gold-plated RJ45 connectors with snagless boots for long-term reliability
• 20-meter length in blue for easy identification

In daily use

Upgrading a data center, wiring a high-performance workstation, or connecting PoE devices? This cable maintains stable 10G links even in electrically noisy environments. The stranded 28 AWG copper conductors offer flexibility for tight bends, while the snagless boot protects the locking tab during frequent moves. The LSZH jacket emits very low smoke and no corrosive halogens, making it suitable for public buildings and enclosed spaces.

Full specifications

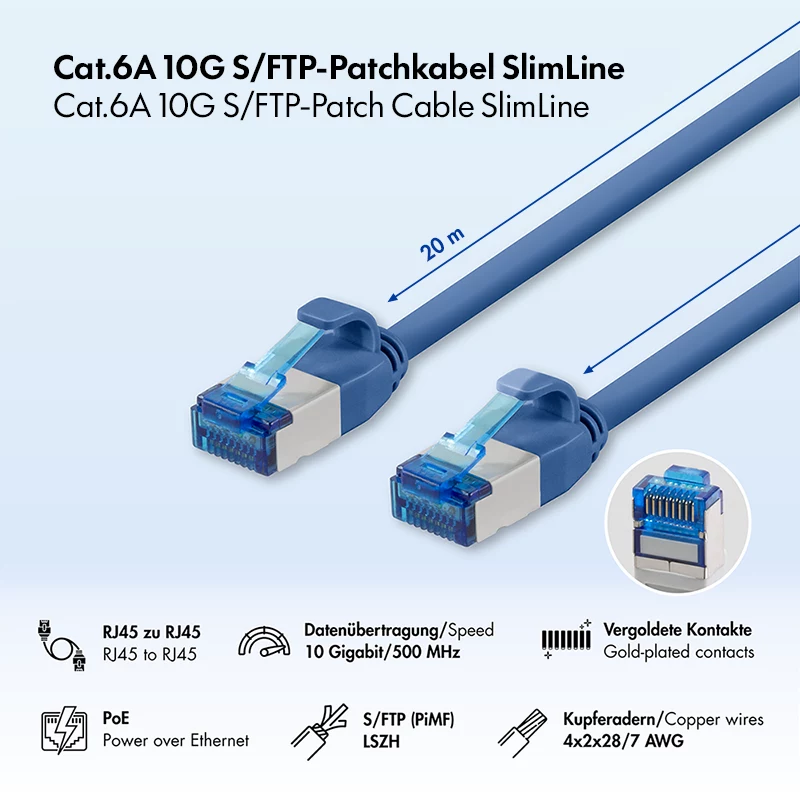

• Cable type: Cat.6A S/FTP (Screened Foiled Twisted Pair, PiMF)
• Length: 20 m
• Colour: Blue
• Conductor: Stranded copper, 28 AWG
• Shielding: S/FTP (individual pair foil + overall braid)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 (8P8C) male to RJ45 (8P8C) male, gold-plated contacts
• Wiring standard: TIA/EIA 568B
• Bandwidth: Up to 500 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Cable diameter: Approx. 3.8 mm
• Boot type: Snagless
• Compliance: RoHS, CE, ISO/IEC 11801, EN 50173

Final note

The LogiLink SlimLine patch cable combines space-saving design with robust Cat.6A performance, making it an excellent choice for modern network installations where both density and reliability matter.
