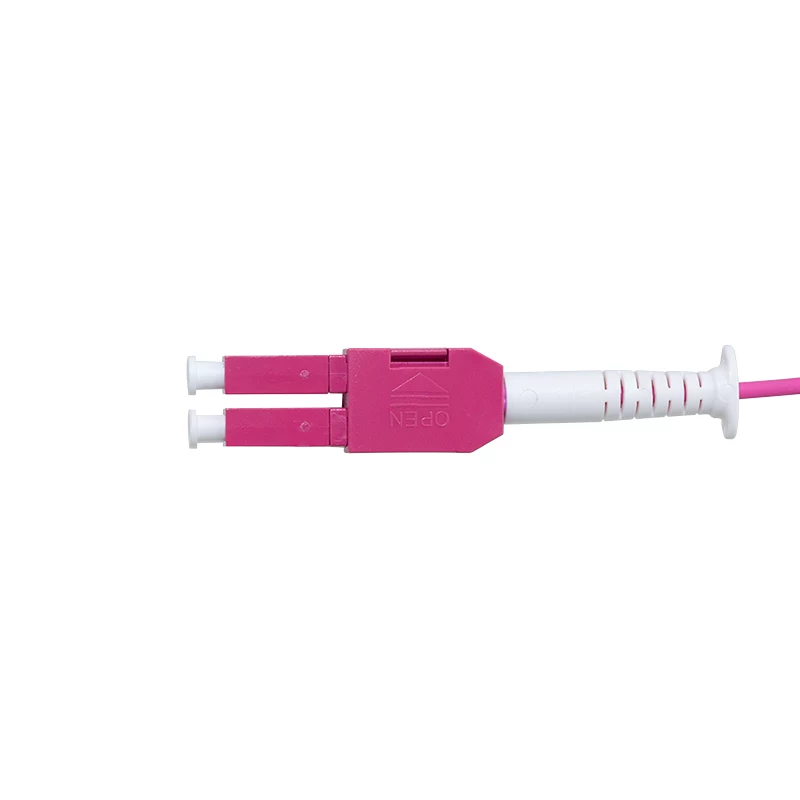

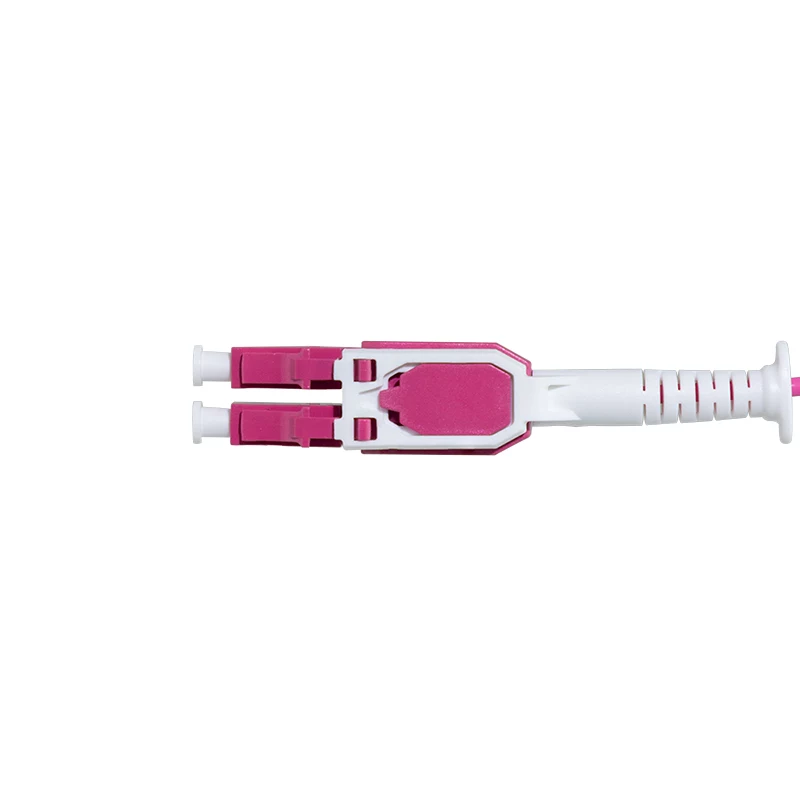

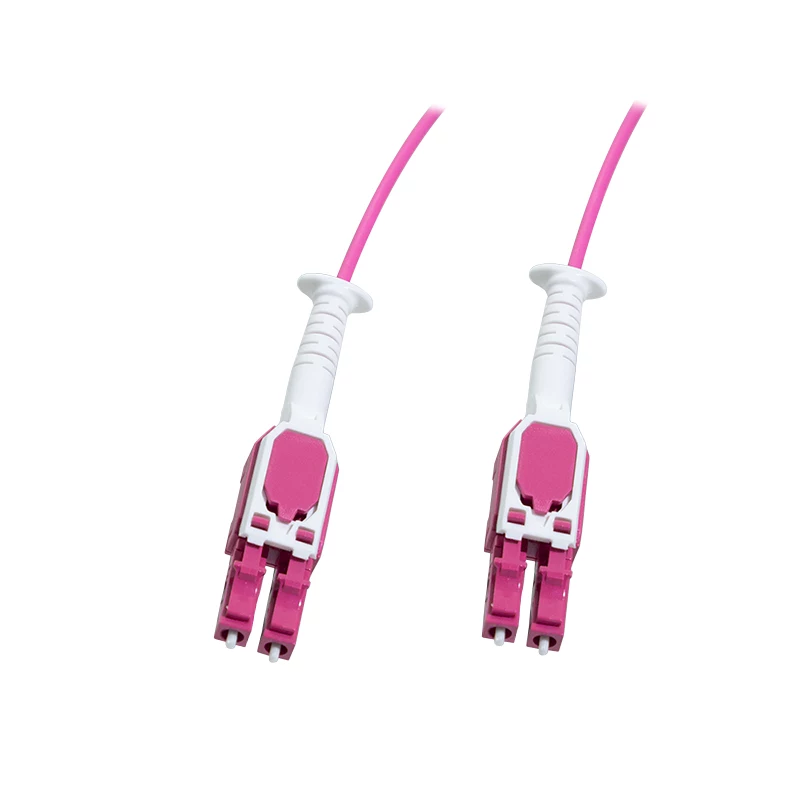

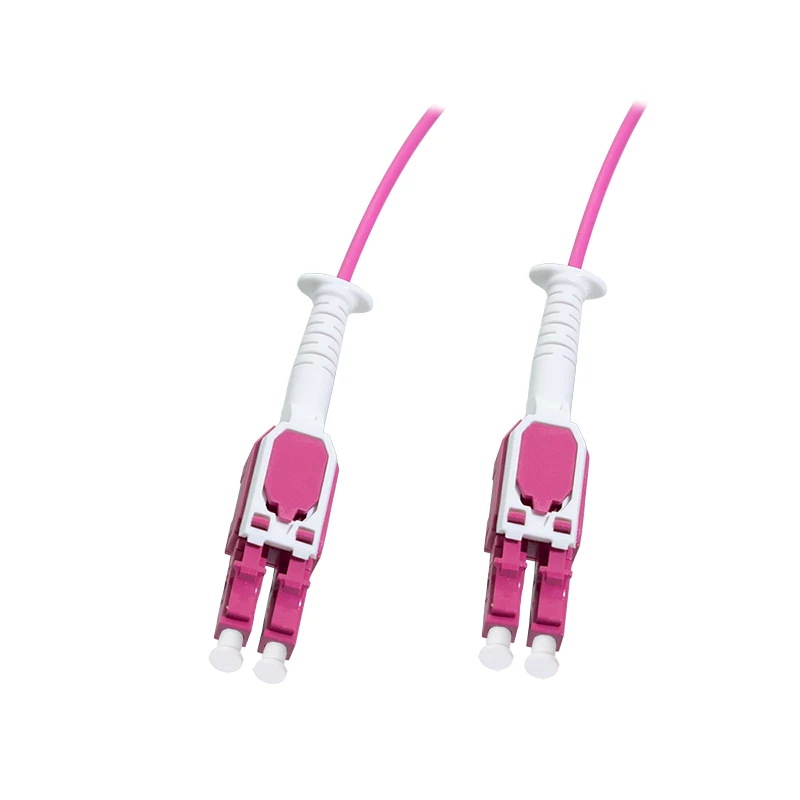

LOGILINK cavo patch in fibra ottica Uniboot Push-Pull LC-LC OM4, 0,5 m

With an insertion loss of just ≤0.3 dB and return loss ≥30 dB, this LOGILINK Uniboot push-pull patch cord keeps signal integrity intact for 10GbE, 40GbE, and 100GbE links. The duplex LC connector combines both fibers into a single compact boot, while the push-pull tab enables one-handed insertion and extraction even in densely packed patch panels.

Overview

This 0.5-meter fiber optic patch cable features a uniboot design that merges duplex fibers into one connector body. The LSZH (Low Smoke Zero Halogen) jacket in aqua ensures safety in enclosed environments, and the push-pull mechanism simplifies cable management in data centers, SANs, LANs, and telecommunications rooms. With OM4 multimode fiber (50 µm core, 125 µm cladding), it supports high-speed data transfer at 850 nm and 1300 nm wavelengths.

What stands out

• Uniboot push-pull connector for effortless handling in high-density areas
• OM4 multimode fiber supports 10GbE, 40GbE, and 100GbE
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire
• Aqua color coding for quick identification of OM4 cabling
• Duplex LC connectors on both ends for reliable bidirectional communication

Technical details

• Cable length: 0.5 m
• Fiber type: OM4 multimode
• Core/cladding diameter: 50/125 µm
• Connector type: LC to LC, duplex
• Connector style: Uniboot push-pull
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Jacket material: LSZH
• Jacket color: Aqua
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, CE

Our verdict

A space-saving and reliable solution for high-density fiber optic networks, delivering excellent performance and easy handling.
