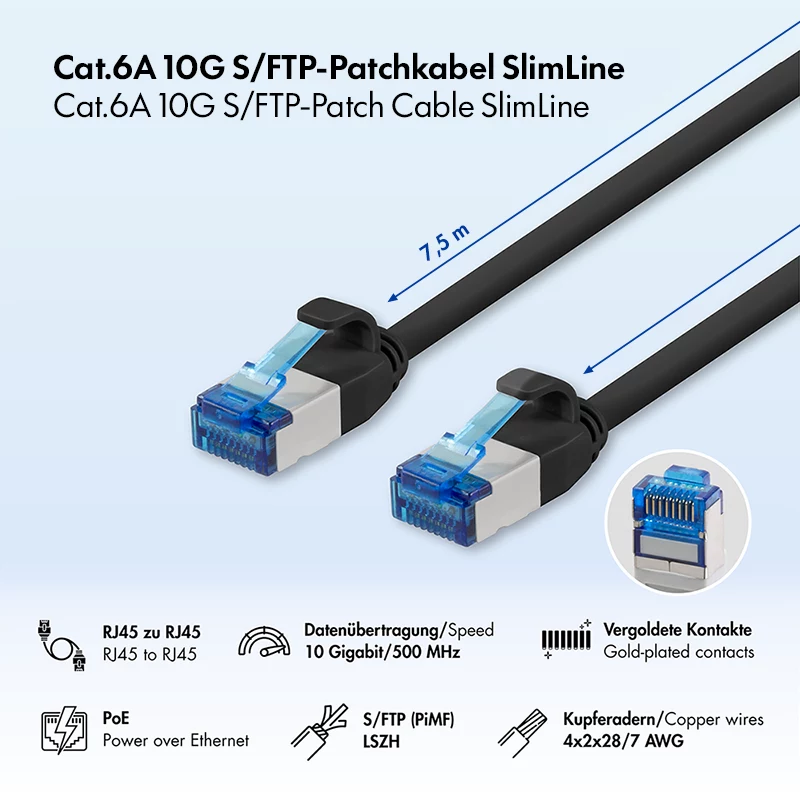

LogiLink cavo patch SlimLine Cat.6A S/FTP LSZH, 7,5 m, nero

Experience 10 Gigabit Ethernet with the LogiLink SlimLine Cat.6A S/FTP LSZH Patch Cable. Its ultra-slim 3.8 mm outer diameter and 28 AWG stranded copper conductors deliver high-density connectivity without compromising on performance, supporting up to 500 MHz bandwidth and 10GBASE-T data transfer rates. The S/FTP shielding (screened foiled twisted pair) ensures excellent protection against electromagnetic interference, while the LSZH jacket provides safety in fire-sensitive environments. With gold-plated contacts and a snagless molded boot, this 7.5-meter black cable is built for reliable, long-lasting connections in data centers, offices, and home networks.

Overview

The LogiLink SlimLine Cat.6A patch cable is engineered for modern high-speed networks where space is at a premium. Its slim profile allows for neat cable management in high-density patch panels and tight spaces, while the S/FTP construction guarantees superior signal integrity. The cable is compliant with ISO/IEC 11801 and TIA/EIA-568-C.2 standards, ensuring compatibility with all Cat.6A and lower category systems. The LSZH (Low Smoke Zero Halogen) jacket reduces toxic smoke and corrosive gases in the event of fire, making it ideal for public buildings, data centers, and enclosed spaces.

What stands out

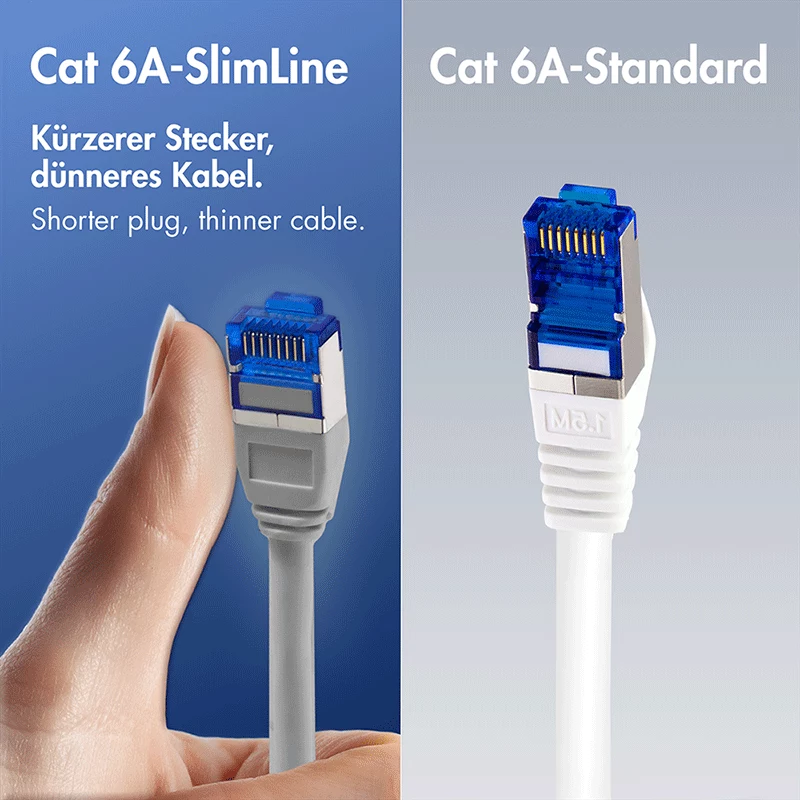

• Ultra-slim 3.8 mm outer diameter for space-saving installations
• S/FTP shielding for maximum EMI/RFI protection
• Supports 10 Gigabit Ethernet up to 500 MHz
• LSZH jacket for enhanced fire safety
• Gold-plated contacts (50µm) for reliable connectivity
• Snagless molded boot protects the locking tab during installation

Technical details

• Cable Type: Patch Cable
• Category: Cat.6A (Category 6A)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Length: 7.5 meters
• Color: Black
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Type: RJ45 Male to RJ45 Male
• Conductor Material: 100% Copper
• AWG: 28 AWG
• Bandwidth: Up to 500 MHz
• Data Transfer Rate: Supports 10 Gigabit Ethernet (10GBASE-T)
• Cable Construction: Stranded
• Connector Plating: Gold-plated contacts (50µm)
• Boot Type: Molded, Snagless
• Wiring Standard: T568B
• Outer Diameter: Approx. 3.8 mm
• Special Feature: SlimLine Design for space-saving installation
• Compliance: RoHS, REACH, ISO/IEC 11801, TIA/EIA-568-C.2

Our verdict

The LogiLink SlimLine Cat.6A S/FTP LSZH Patch Cable delivers top-tier 10G performance in an ultra-slim, fire-safe package, making it an excellent choice for high-density network environments.
