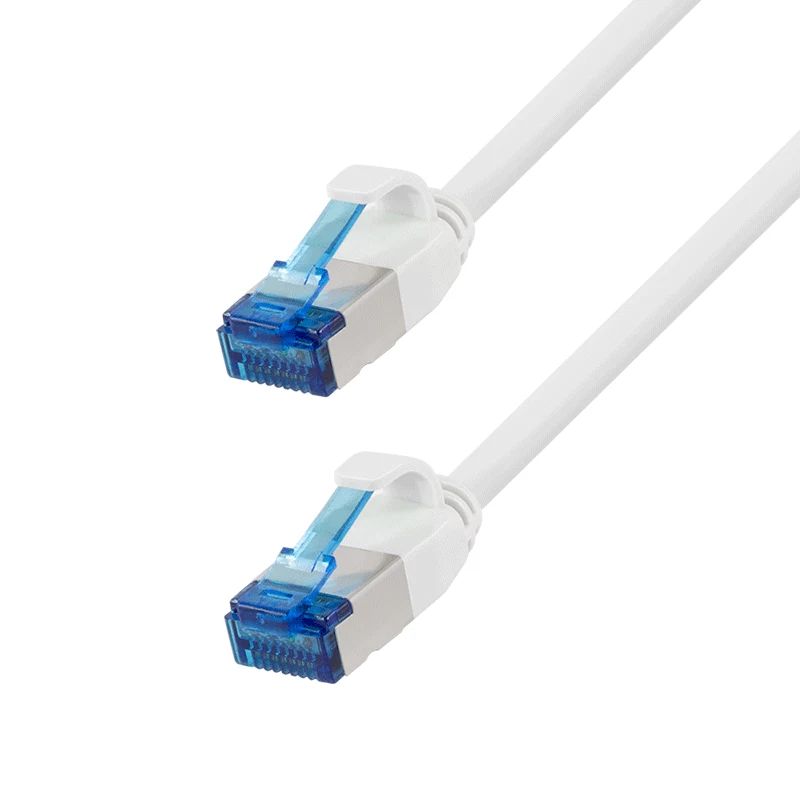

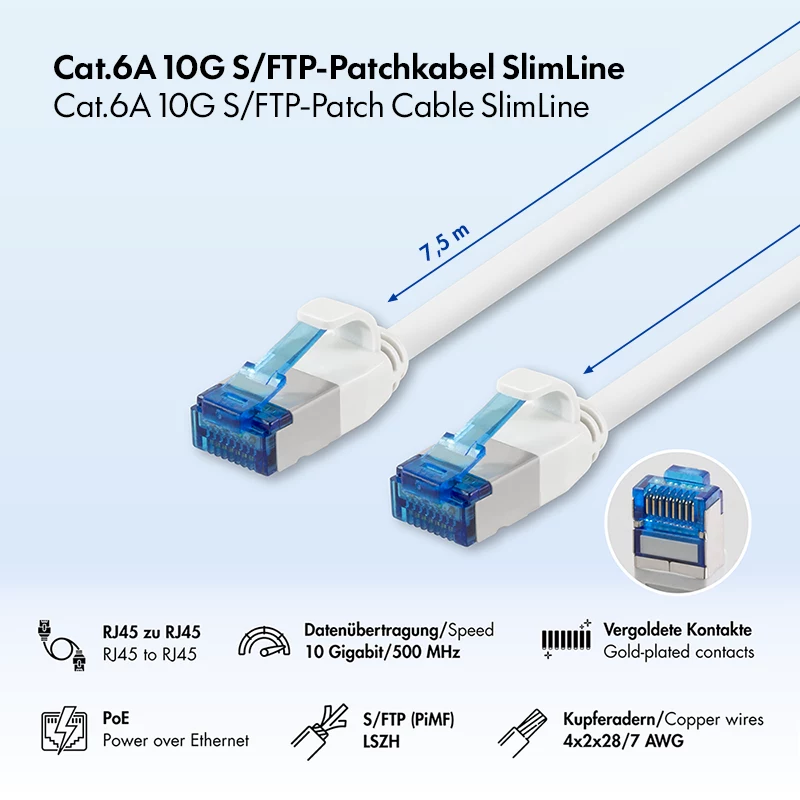

LogiLink cavo patch SlimLine Cat.6A S/FTP LSZH, bianco, 7,5 m

In high-density patching environments, traditional Cat.6A cables often become a bulky obstacle. This SlimLine patch cable from LogiLink solves that problem with a remarkably slim 3.8 mm outer diameter while delivering full 10-Gigabit performance. The S/FTP construction—individually foil-shielded pairs plus an overall braid shield—virtually eliminates alien crosstalk, making it ideal for data centres, office cabling, and any space-constrained installation. The white LSZH jacket adds safety with low smoke and zero halogen emissions.

Highlights

• Cat.6A performance up to 500 MHz and 10GBASE-T Ethernet

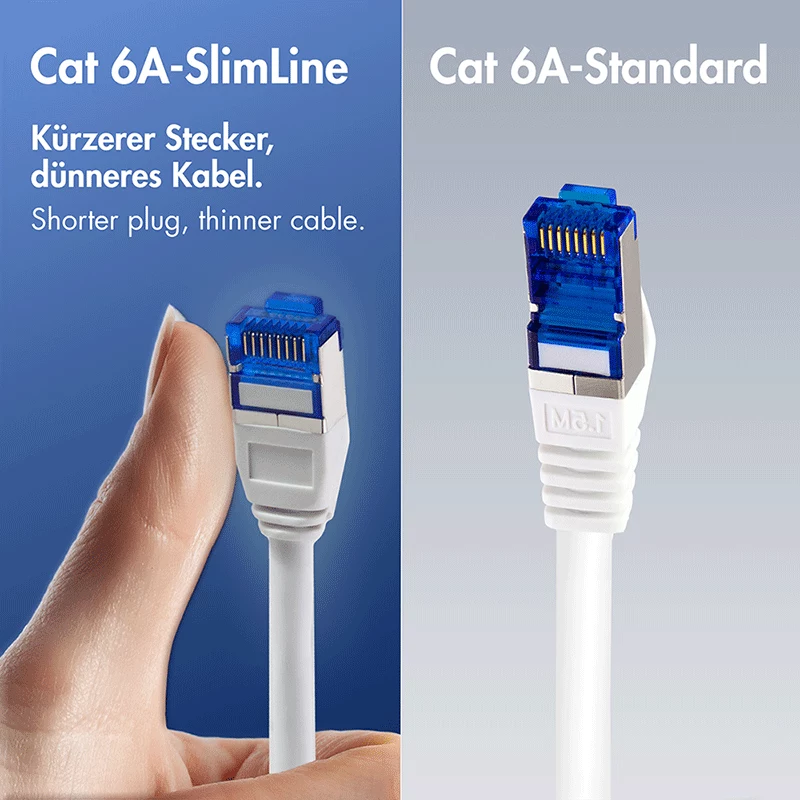

• SlimLine design with only 3.8 mm outer diameter – saves space in cable management
• S/FTP shielding: pairs in metal foil plus overall braid for superior EMI immunity
• LSZH (Low Smoke Zero Halogen) jacket for improved fire safety
• Gold-plated RJ45 connectors with 100% copper stranded conductors (AWG 30/7)
• Supports Power over Ethernet (PoE, PoE+, PoE++)
• Length: 7.5 m, colour: white

In daily use

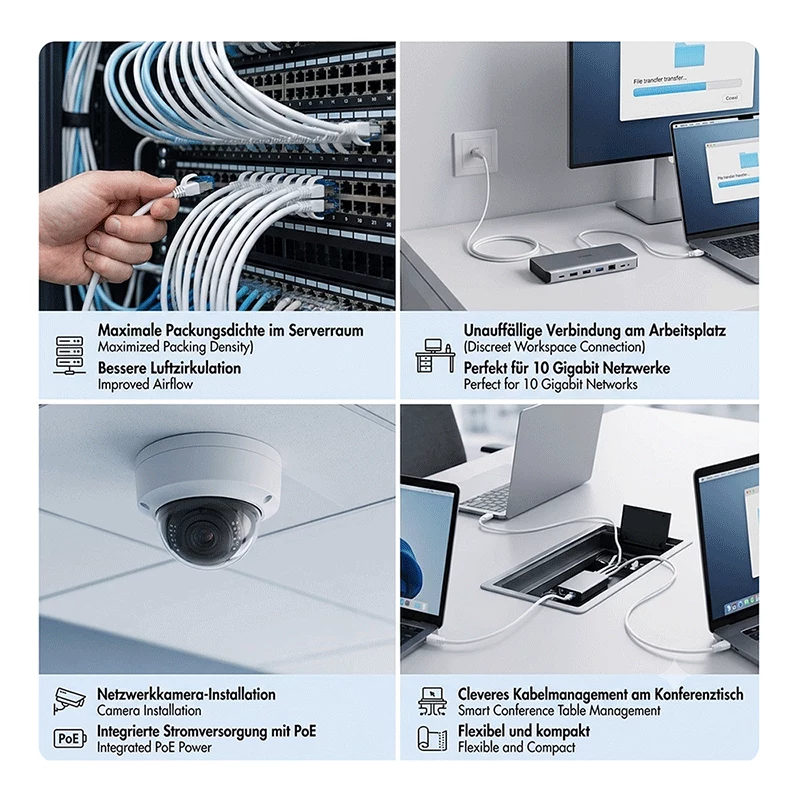

The slim profile makes this cable particularly useful in densely packed patch panels, behind desks, or in cable ducts where traditional Cat.6A cables would be too bulky. Despite its reduced diameter, it fully meets the performance requirements of ISO/IEC 11801 and TIA/EIA-568-B.2-10, ensuring reliable 10-Gigabit links over the full 7.5 m length. The stranded copper conductors provide flexibility for frequent re-patching, and the gold-plated contacts resist corrosion for long-term signal integrity.

Full specifications

• Cable Type: Patch Cable
• Cable Category: Cat.6A (Class EA)
• Shielding Type: S/FTP (PiMF - Pairs in Metal Foil, overall braid shield)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 7.5 m
• Color: White
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts
• Conductor Material: 100% Copper
• Conductor Gauge: AWG 30/7
• Bandwidth: Up to 500 MHz
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Cable Construction: Stranded
• Outer Diameter: Approx. 3.8 mm
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10
• Halogen Free: Yes
• Flame Retardant: Yes
• PoE Support: Yes (PoE, PoE+, PoE++)
• Wiring Standard: TIA/EIA 568B
• Special Feature: SlimLine Design

Final note

For installers and IT professionals who refuse to compromise between performance and space, the LogiLink SlimLine Cat.6A cable is the smart choice. Its slim profile, robust shielding, and safety-focused jacket make it a reliable backbone for modern high-speed networks.
