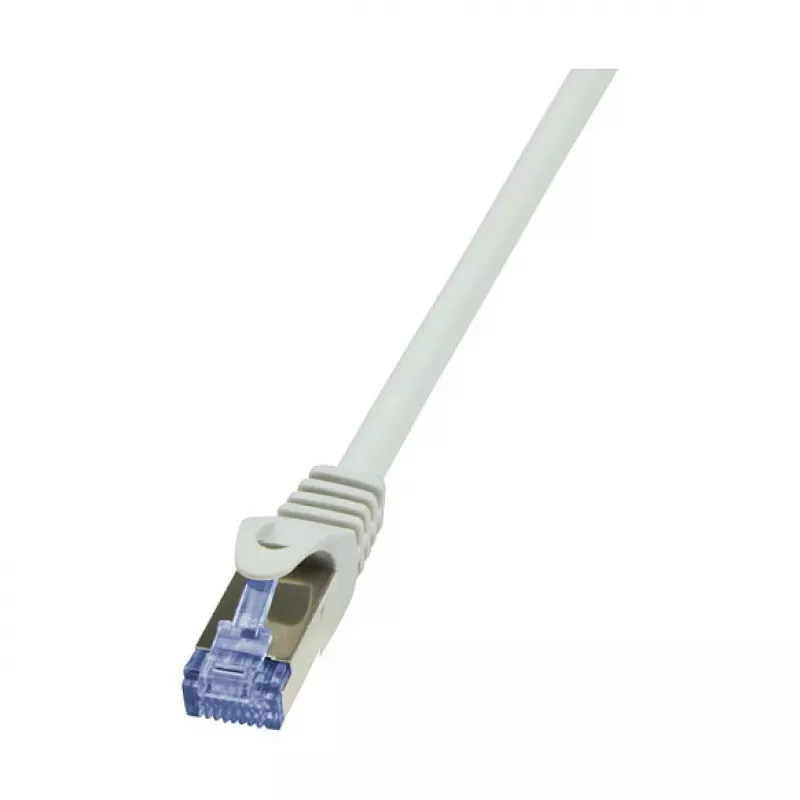

LogiLink CQ3132S Cavo patch Cat6a S/FTP, RJ45, 40 m, grigio, LSZH, 10 Gbps

Experience 10 Gigabit Ethernet at full 500 MHz bandwidth over 40 meters with the LogiLink CQ3132S Cat6a S/FTP patch cable. This high-performance cable ensures error-free data transmission in demanding network environments, from data centers to office backbones. The S/FTP shielding with PIMF (pairs in metal foil) and an overall braided shield provides superior protection against electromagnetic interference (EMI) and crosstalk, making it ideal for high-density installations.

Overview

The LogiLink CQ3132S is a premium Cat6a patch cable designed for 10GBASE-T applications. It features gold-plated RJ45 connectors (50 µm) for reliable, corrosion-resistant connections and a snagless, molded boot with strain relief to protect the locking tab and ensure long-term durability. The cable is constructed with stranded copper conductors (AWG 26/7) for flexibility and easy routing, and it is jacketed in LSZH (Low Smoke Zero Halogen) material, which emits low smoke and no toxic halogens in case of fire, making it safe for use in public buildings and confined spaces.

What stands out

• Supports 10 Gigabit Ethernet (10GBASE-T) with 500 MHz bandwidth
• S/FTP shielding: PIMF (pairs in metal foil) plus overall braided shield for maximum EMI protection
• Gold-plated RJ45 connectors (50 µm) for superior signal integrity and corrosion resistance
• LSZH jacket: halogen-free, low smoke, and flame retardant for enhanced safety
• Snagless molded boot with strain relief for durability and easy installation
• Stranded copper conductors (AWG 26/7) offer flexibility without compromising performance
• Wired to TIA/EIA-568B standard for universal compatibility

Technical details

• Cable type: Cat6a patch cable (S/FTP)
• Length: 40 m
• Colour: Grey
• Connector type: RJ45 (8P8C) male to male
• Connector plating: Gold (50 µm)
• Shielding: S/FTP (PIMF + braided shield)
• Conductor: Stranded copper, AWG 26/7
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Halogen-free: Yes
• Boot type: Molded, snagless with strain relief
• Wiring standard: TIA/EIA-568B
• Application: Network, Ethernet

Our verdict

The LogiLink CQ3132S is an excellent choice for professionals who need a long, high-speed, and interference-resistant network connection. Its robust shielding and LSZH jacket make it suitable for both performance-critical and safety-conscious environments.
