LogiLink FB2LC40 scatola di terminazione FTTH con cavo drop da 40m, 1x LC/APC, bianco

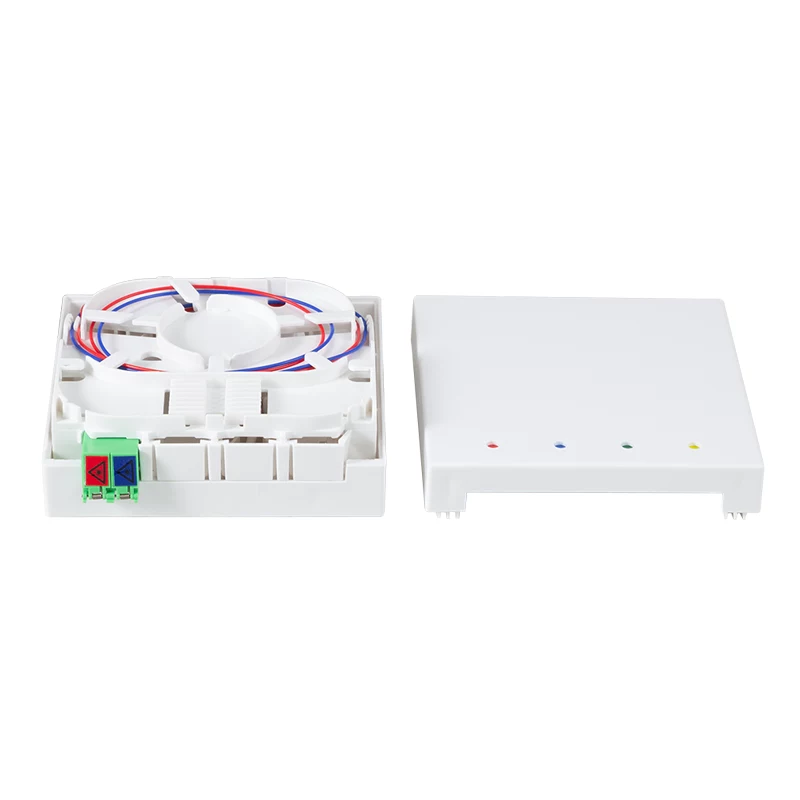

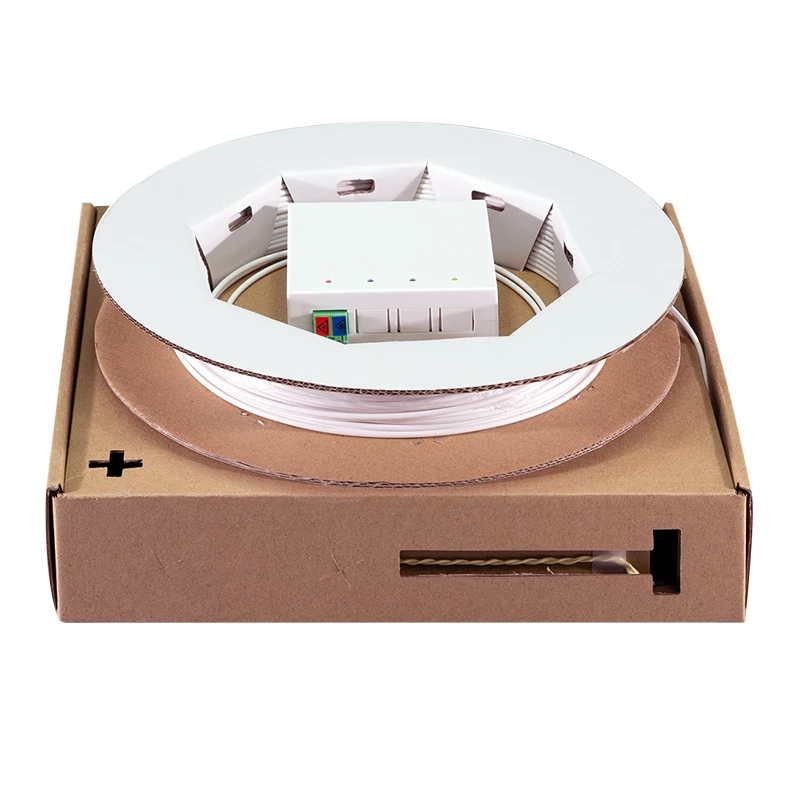

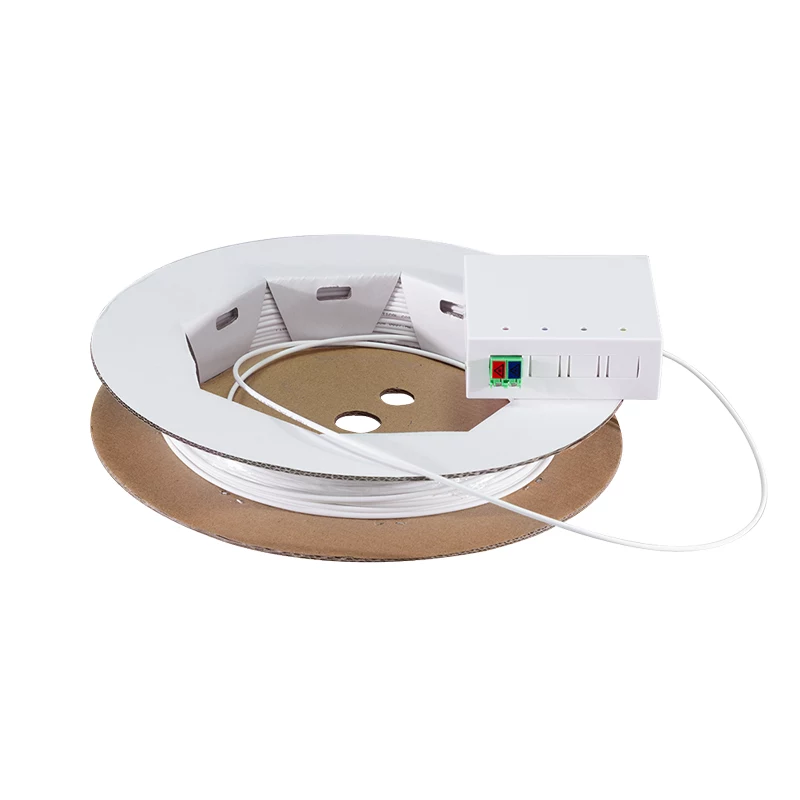

The LogiLink FB2LC40 is a professional FTTH (Fiber To The Home) termination box designed for reliable fiber optic connections in residential and commercial installations. It comes pre-terminated with a 40-meter single-mode drop cable, featuring an LC/APC connector on the box end and an unterminated open end for flexible field termination. The box is wall-mountable and offers IP54 protection, making it suitable for indoor and outdoor use.

Advantages

This FTTH termination box simplifies fiber installation by providing a ready-to-use solution with a pre-attached cable. The LC/APC connector ensures low insertion loss and high return loss, delivering excellent signal integrity. The compact ABS housing with IP54 rating protects against dust and water splashes, ensuring long-term reliability.

Suitable for

• Fiber to the Home (FTTH) installations
• Fiber to the Building (FTTB) applications
• Last-mile fiber connectivity for residential and small business users
• Indoor and outdoor wall-mounted termination points

Key specifications

• Product Type: FTTH Termination Box
• Fiber Optic Connector (Box): 1x LC/APC
• Included Cable Length: 40 m
• Included Cable Type: Single-mode Fiber Optic Drop Cable
• Fiber Type: OS2 (G.657.A2)
• Fiber Count: Simplex (1 Fiber)
• Cable Connector (Box End): LC/APC
• Cable Connector (Other End): Unterminated / Open
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss (Max): < 0.3 dB
• Return Loss (Min): > 60 dB
• Application: Fiber To The Home (FTTH)
• Mounting Type: Wall Mount
• Protection Rating: IP54
• Housing Material: ABS Plastic
• Color: White
• Operating Temperature: -20°C to +70°C
• Cable Diameter: Approx. 3 mm
• Standards Compliance: RoHS, CE

Recommendations

For optimal performance, ensure proper cable management and avoid sharp bends. The unterminated end should be spliced or connectorized by a qualified technician. This product is ideal for new FTTH deployments or upgrades.
