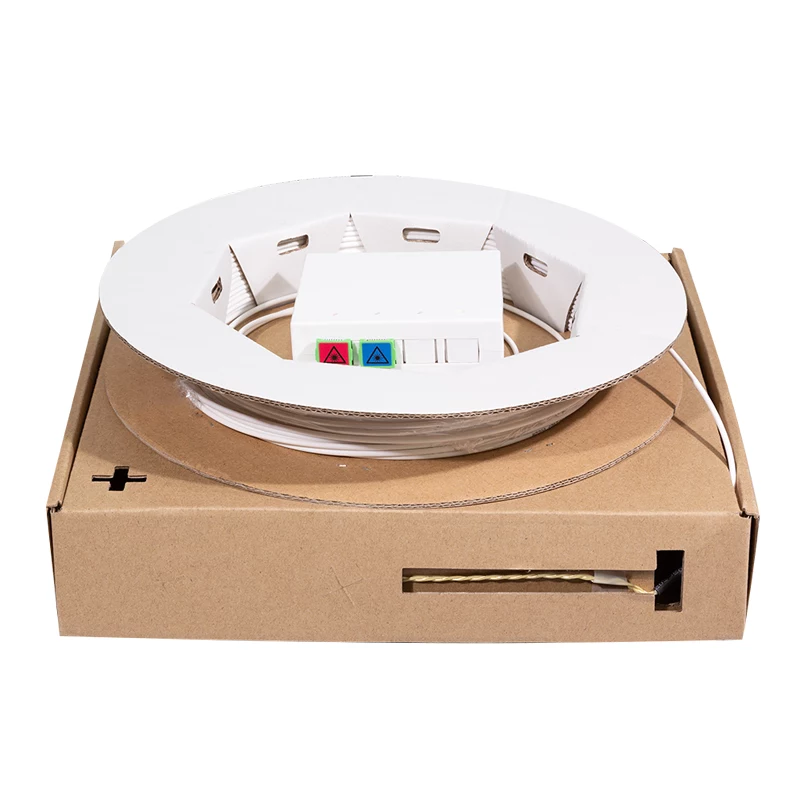

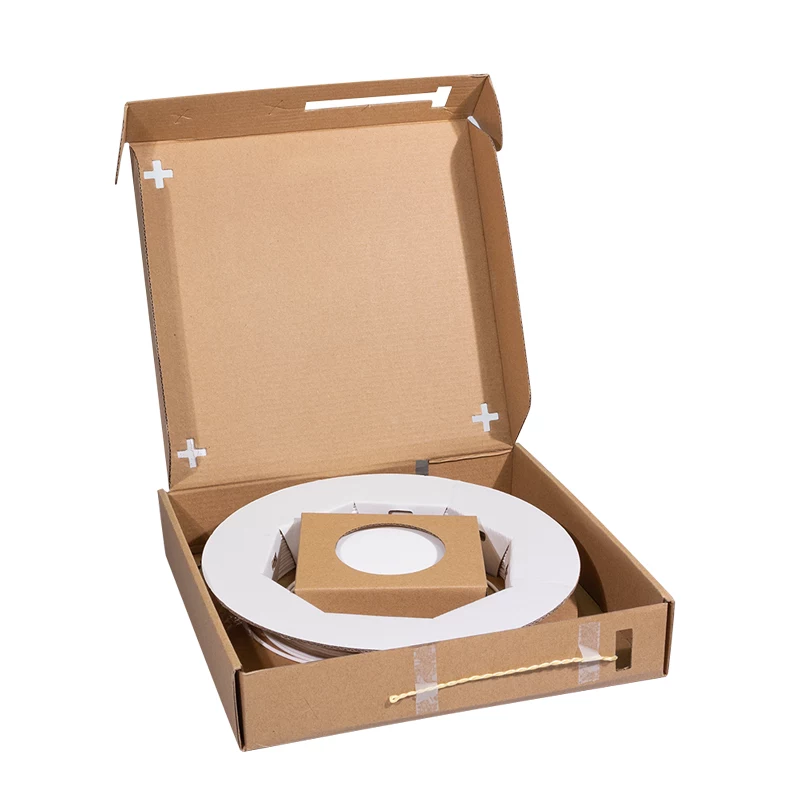

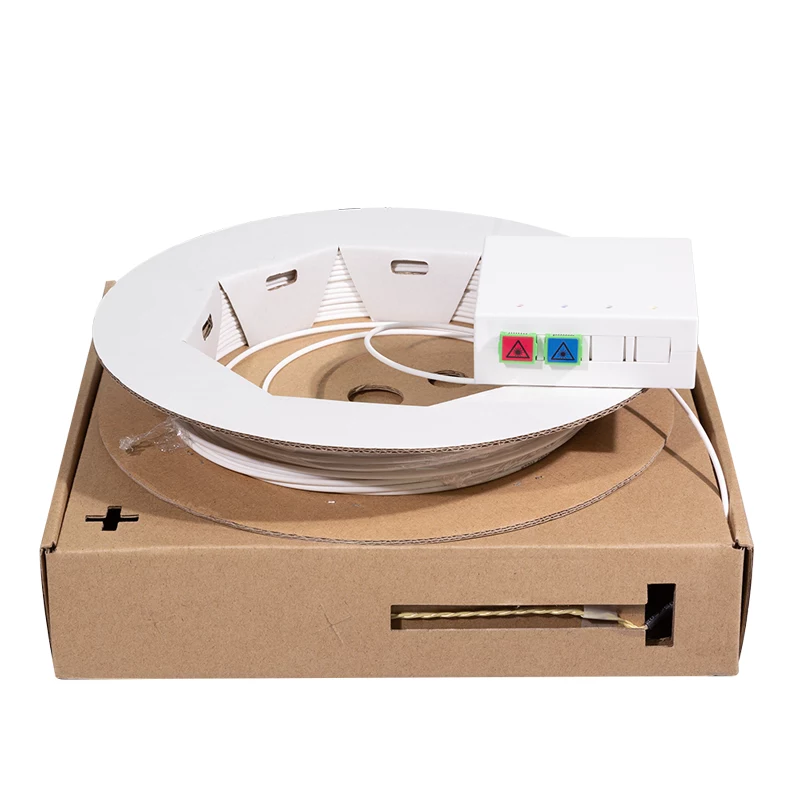

LogiLink FB2SC30 Cavo patch in fibra ottica monomodale OS2 SC/APC su SC/APC 30 m bianco

The LogiLink FB2SC30 is a high-quality fiber optic patch cable designed for reliable and high-speed data transmission in FTTx networks, data centers, and telecommunications. This singlemode OS2 cable features SC/APC connectors on both ends, ensuring low insertion loss and high return loss for optimal performance. With a length of 30 meters and a duplex fiber configuration, it is ideal for connecting FTTH connection boxes or other optical network equipment. The cable is made with LSZH (Low Smoke Zero Halogen) jacket material, providing safety in indoor installations. Its white color and 3.0 mm diameter make it easy to handle and install.

Advantages

High-quality singlemode OS2 fiber ensures long-distance transmission with minimal signal loss. SC/APC connectors provide low insertion loss (≤0.2 dB) and high return loss (≥60 dB), ensuring reliable connections. LSZH jacket material enhances safety by reducing toxic fumes in case of fire. The 30-meter length offers flexibility for various installation scenarios.

Suitable for

• FTTx networks (Fiber to the Home, Fiber to the Building)
• Data centers and server rooms
• Telecommunications infrastructure
• Indoor fiber optic cabling

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode
• Fiber Standard: OS2
• Connector Type A: SC/APC
• Connector Type B: SC/APC
• Cable Length: 30 m
• Fiber Count: Duplex (2 Fibers)
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: White
• Insertion Loss: ≤ 0.2 dB
• Return Loss: ≥ 60 dB
• Connector Polish: APC (Angled Physical Contact)
• Operating Wavelengths: 1310 nm, 1550 nm
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is designed for indoor use; for outdoor installations, use appropriate protection.
