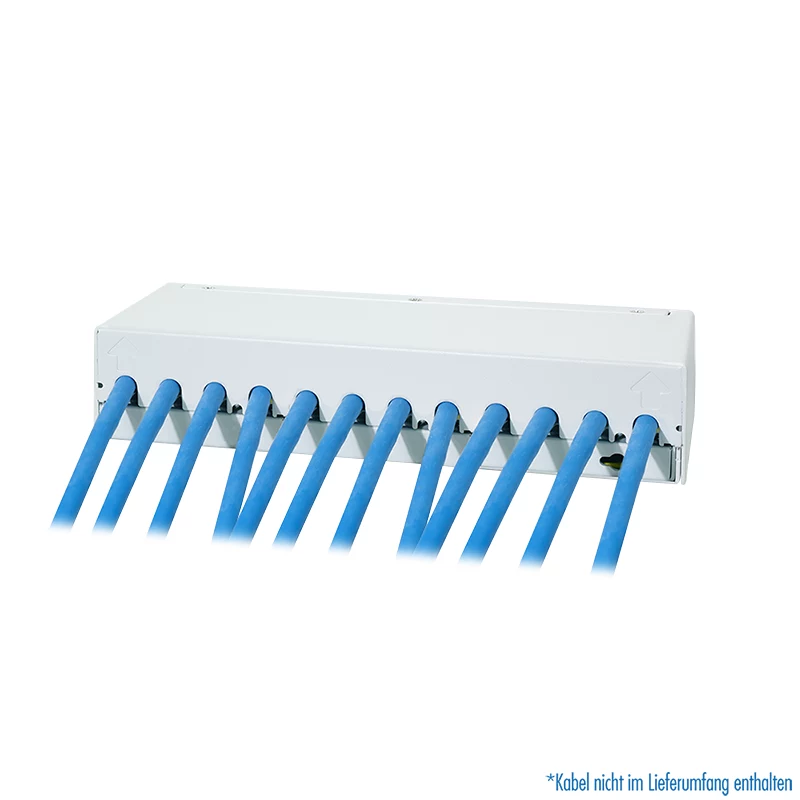

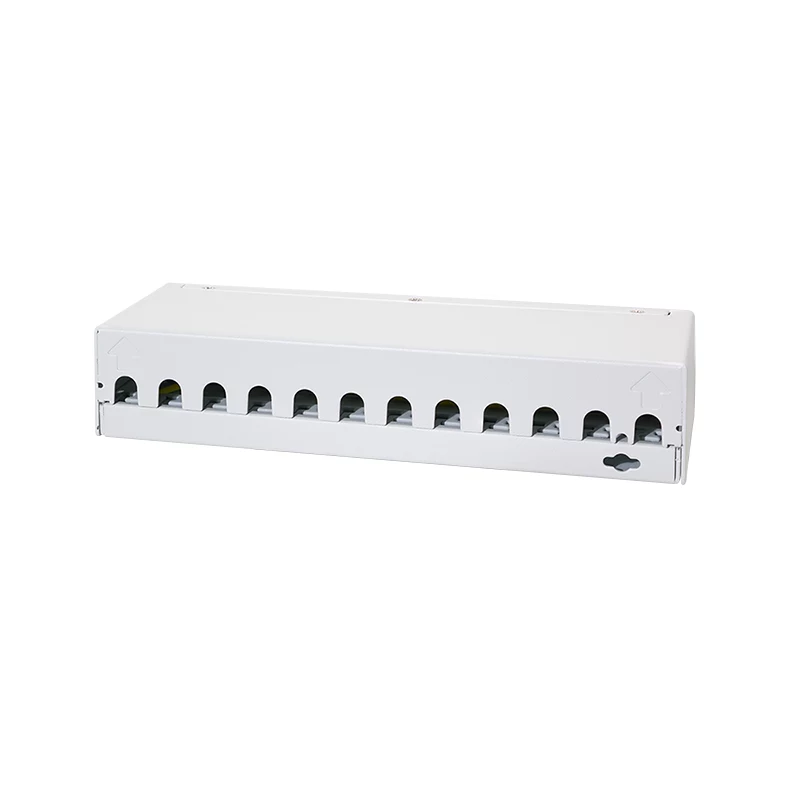

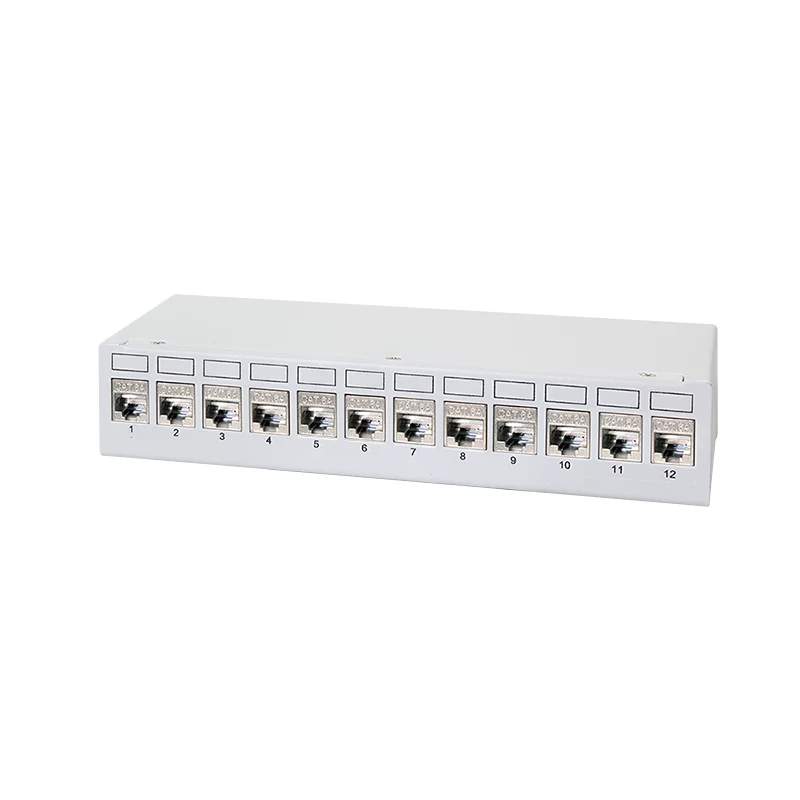

LogiLink NK4093 Patch panel desktop Cat.6A, 12 porte, grigio chiaro (RAL 7035), schermato, acciaio senza viti

In a busy office IT closet, a technician needs to organize a dozen network drops quickly and reliably. The LogiLink NK4093 desktop patch panel provides a compact, tool-free solution for terminating Cat.6A cables in a neat, professional manner. Its screwless steel housing and light grey finish blend into any rack or desk setup, while the 12 shielded RJ45 ports ensure high-speed connectivity for workstations, access points, and IP cameras.

Key specifications

• 12 shielded RJ45 ports, Cat.6A (Class EA) performance
• Supports 10 Gigabit Ethernet up to 500 MHz bandwidth
• Tool-free, screwless steel housing with integrated grounding
• Gold-plated contacts and LSA+ compatible IDC termination
• PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) ready
• Light grey colour (RAL 7035), desktop form factor
• Operating temperature: -10°C to 60°C, humidity 10%–90% non-condensing
• Certifications: RoHS, CE

Why choose it

This patch panel eliminates the need for special tools or complex assembly. The screwless design allows for quick installation, saving time during network deployments or reconfigurations. Its robust steel construction and shielding protect against electromagnetic interference, ensuring stable 10G connections even in electrically noisy environments. The integrated grounding connection further enhances signal integrity, making it a reliable choice for demanding applications.

Ideal use cases

• Small office or home office network distribution points
• Temporary network setups for events, labs, or training rooms
• IP surveillance systems requiring PoE for cameras
• High-speed workstation clusters with 10GBASE-T requirements
• Network testing and certification environments

Good to know

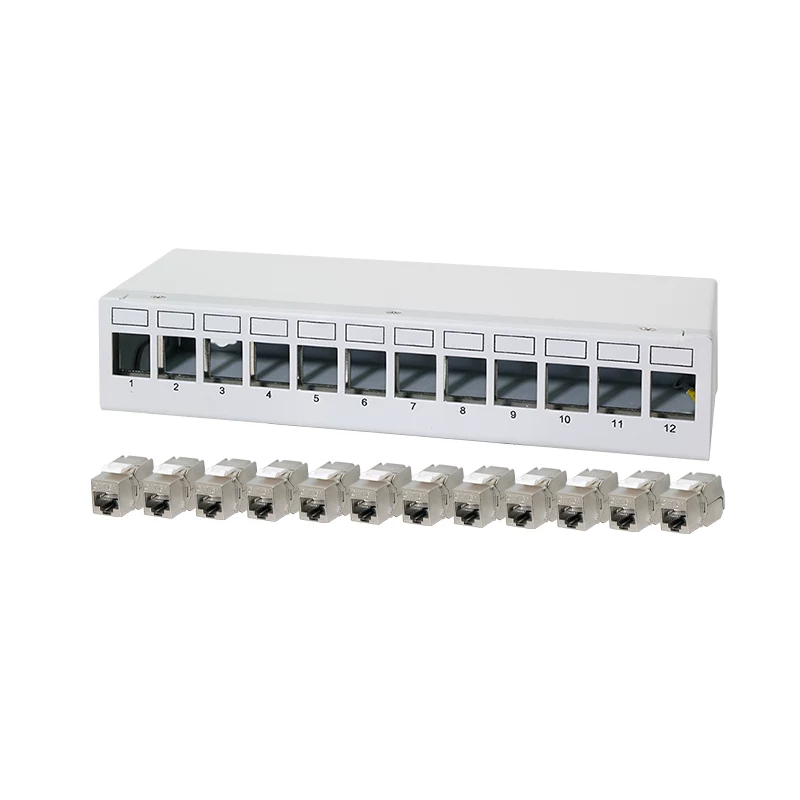

The panel is compatible with standard Cat.6A keystone modules and follows TIA/EIA 568 A/B wiring. It supports Power over Ethernet up to PoE++ (60W per port), making it suitable for powering devices like PTZ cameras or wireless access points. The desktop form factor allows placement on a shelf or desk, but it can also be mounted in a 19" rack with an optional bracket (not included).
