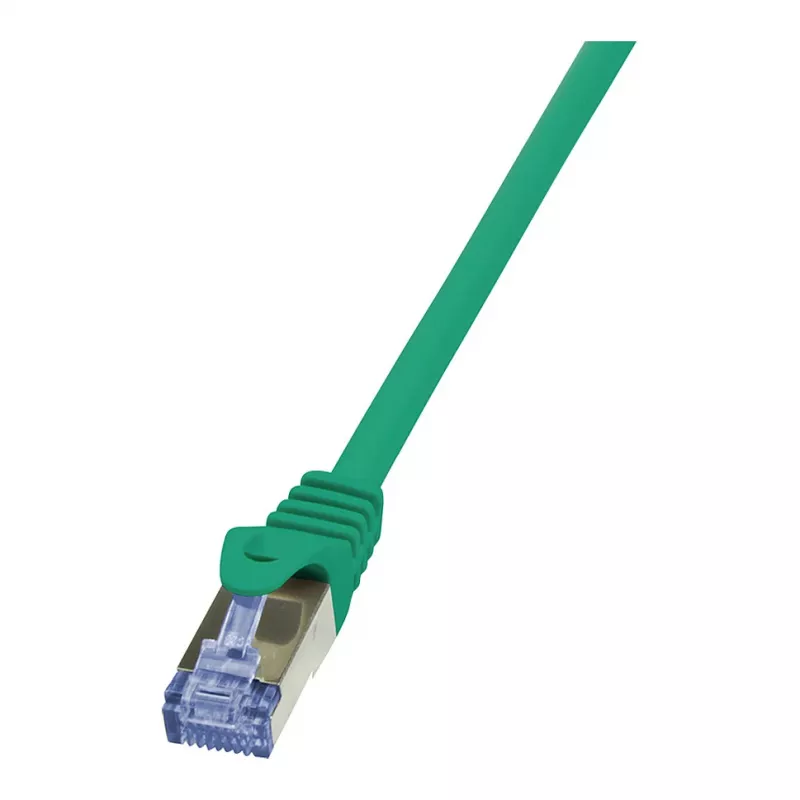

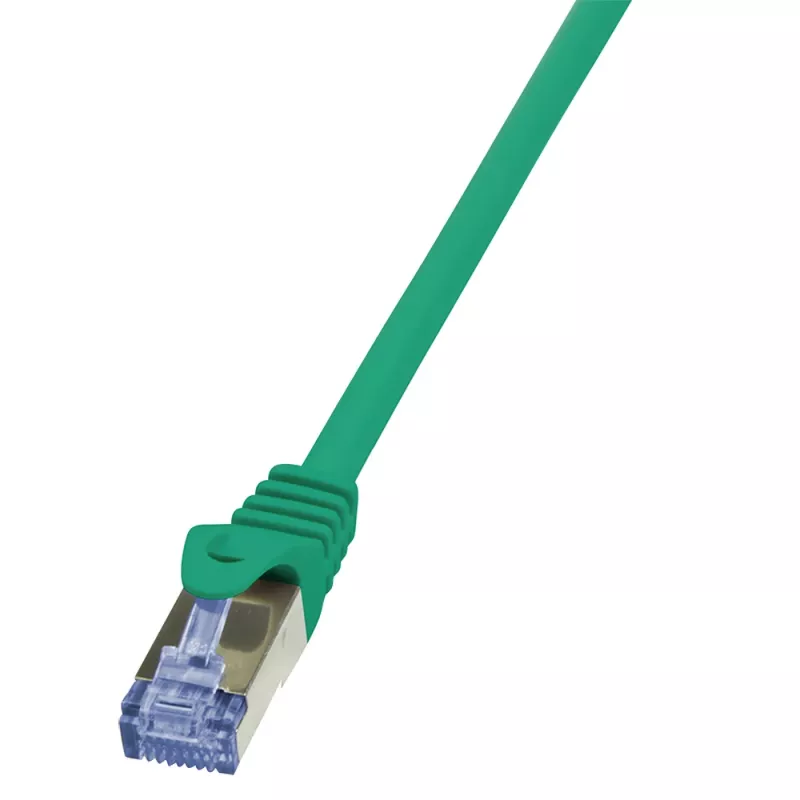

LogiLink PrimeLine Cat6a 10G S/FTP PIMF cavo patch RJ45 0,5 m verde LSZH (CQ3025S)

10 Gigabit Ethernet over a 0.5-meter link, with S/FTP PIMF shielding and a green LSZH jacket—this LogiLink PrimeLine patch cable is built for high-density, high-speed network environments.

Overview

The LogiLink PrimeLine CQ3025S is a premium Category 6a patch cable engineered for reliable 10GBASE-T performance. It features two RJ45 male connectors and a stranded copper conductor construction (AWG 26/7) that balances flexibility with durability. The cable’s S/FTP shielding—individually foil-wrapped pairs (PIMF) plus an overall braided shield—provides excellent protection against electromagnetic and radio frequency interference, ensuring signal integrity even in demanding server rooms or data centers.

What stands out

• Supports 10 Gigabit Ethernet (10GBASE-T) for future-proof network infrastructure
• S/FTP with PIMF shielding delivers superior EMI/RFI rejection
• Low Smoke Zero Halogen (LSZH) jacket minimizes toxic emissions in case of fire
• Stranded copper conductors (AWG 26/7) offer flexibility for frequent patching
• Green colour aids in cable management and colour-coding schemes
• Compliant with TIA/EIA-568B.2-10 and ISO/IEC 11801 standards

Technical details

• Cable type: Cat6a S/FTP (Screened Foiled Twisted Pair)
• Length: 0.5 m
• Connectors: RJ45 male to RJ45 male, 2 pieces
• Shielding: PIMF (Pairs in Metal Foil) plus overall braid
• Bandwidth: up to 500 MHz
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Conductor material: bare copper, AWG 26/7
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Outer diameter: approx. 6.0 mm
• PoE support: Yes (Power over Ethernet)

Our verdict

For short-range, high-speed connections where interference is a concern, this cable’s robust shielding and LSZH jacket make it a reliable choice for enterprise and data center applications.
