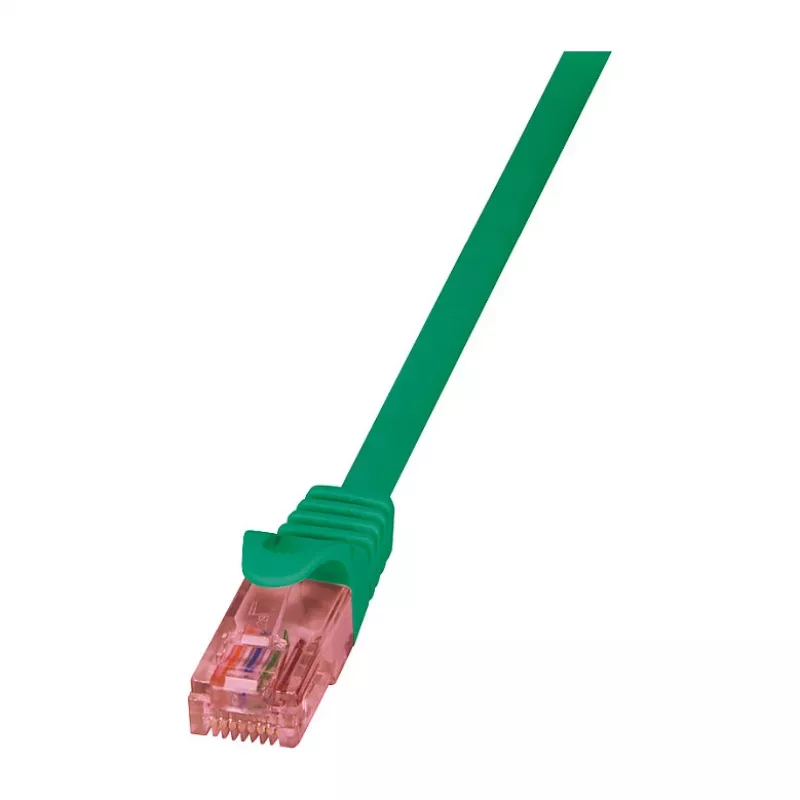

LogiLink PrimeLine Cavo patch Cat.6 U/UTP, RJ45, rame, verde, 1,5 m

For installations where signal clarity outweighs every other consideration, the LogiLink PrimeLine Cat.6 U/UTP patch cable stands apart through its use of bare copper conductors. Many cables in this class quietly substitute copper-clad aluminium, but this model keeps the full conductivity of pure copper across all four twisted pairs. The result is a 250 MHz channel that holds Gigabit Ethernet speeds without the subtle packet loss that cheaper materials can introduce. A green PVC jacket and snagless molded boots make the cable easy to identify and handle in dense patch fields.

Highlights

• Cat.6 performance with 250 MHz bandwidth and 1 Gbps data transfer
• Bare copper (BC) conductors, AWG 24/7 stranded, for reliable signal integrity
• U/UTP unshielded construction with 1:1 TIA/EIA 568B wiring
• Snagless molded boots with bend protection for frequent re-patching
• Green PVC jacket, 5.8 mm outer diameter, 1.5 m length

In daily use

The cable's stranded bare copper cores remain flexible after repeated moves, while the snagless boot prevents the locking tab from catching on adjacent ports. It is rated for operating temperatures from -20°C to +60°C, so it works in both air-conditioned server rooms and warmer wiring closets. The 1.5 m length suits direct connections between a patch panel and a switch, or between a wall outlet and a desktop device.

Full specifications

• Cable type: Ethernet patch cable
• Category: Cat.6
• Shielding: U/UTP (unshielded)
• Length: 1.5 m
• Colour: Green
• Connector type: RJ45 male to RJ45 male
• Conductor material: Bare copper (BC)
• Conductor gauge: AWG 24/7 (stranded)
• Wiring standard: TIA/EIA 568B, 1:1
• Jacket material: PVC
• Bandwidth: 250 MHz
• Data transfer rate: 1000 Mbps (1 Gbps)
• Boot type: Molded, snagless with bend protection
• Halogen-free: No
• Compliance: ISO/IEC 11801, EN 50173, EIA/TIA 568B
• Application: 10/100/1000Base-T networks
• Cable construction: 4 twisted pairs
• Outer diameter: 5.8 mm
• Product line: PrimeLine
• Operating temperature: -20°C to +60°C

Final note

A dependable Cat.6 link for Gigabit Ethernet, built around bare copper conductors and a robust snagless design.
