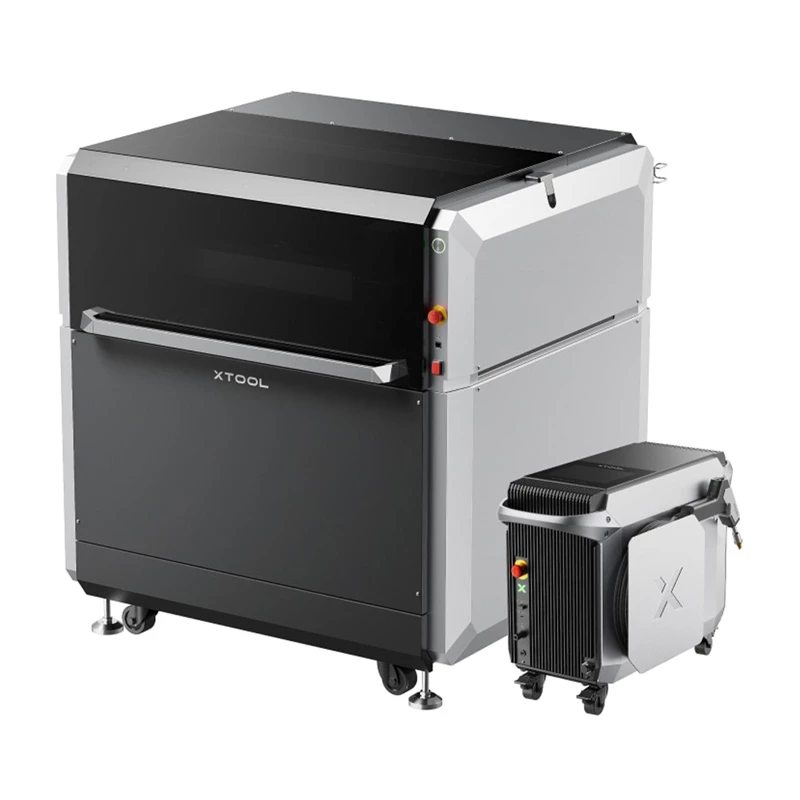

Macchina per saldatura laser e taglio CNC xTool MetalFab XMF-1200B potenza 1200 W

The xTool MetalFab XMF-1200B is a multifunctional laser welding and CNC cutting machine with 1200 W fiber laser power, designed for precision metal processing in professional workshops and advanced hobby use. The device integrates welding, metal cutting and surface cleaning (including rust removal) and can be combined with the included CNC cutter for expanded CNC cutting and cleaning capabilities. It supports continuous, spot and pulse welding and is compatible with common metal materials such as stainless steel, carbon steel, aluminum, brass and titanium.

Advantages

The MetalFab uses industrial-grade Coherent fiber laser chips with a wavelength of 1080 ±10 nm and a photoelectric conversion efficiency of 36%, providing stable high-power output and precise energy delivery. Fiber laser technology minimizes the heat-affected zone (≤ 0.05 mm) for low-distortion welding of thin metals while enabling deep, narrow welds. Cutting performance reaches up to 10 mm carbon steel in a single pass with high surface quality. Built-in technologies — VibeFreeCut™, FlexiTrack™ and ObstacleFree™ — maintain motion stability, automatic Z-axis adjustment and obstacle avoidance. The system also includes dual cameras with AI-assisted layout and precise close-range positioning, an 8-inch touchscreen with one-click material parameters and 10 safety functions with CE/FCC/FDA certifications.

Suitable for

• Welding and repair of metal parts and assemblies
• Precision cutting and prototyping of metal components
• Surface cleaning and rust removal on metal surfaces
• Small-series production and workshop fabrication
• Jewellery and delicate part welding requiring minimal heat distortion

Key specifications

• Manufacturer: xTool, Model: XMF-1200B
• Laser power: 1200 W, Fiber laser, Wavelength: 1080 ±10 nm
• Processing modes: Welding, Cutting, Rust removal/cleaning; Welding modes: Continuous/Spot/Pulse
• Supported materials: Stainless steel, aluminum, carbon steel, titanium, nickel alloy, brass, galvanized sheet metal, magnesium
• Processing thickness (welding): 0.2–5 mm; Maximum cutting thickness (with 1200 W): up to 10 mm
• Photoelectric conversion: 36%; Recommended gases: Nitrogen, Argon
• Cooling: Air cooling; Safety: Class 4 laser safety; Certifications: CE, FCC, FDA
• Rated power: 4500 W; Input voltage: 220–240 V AC, 50/60 Hz; Full load current: Max 23 A
• Operating temperature: -10°C to 40°C; Storage temperature: -10°C to 60°C

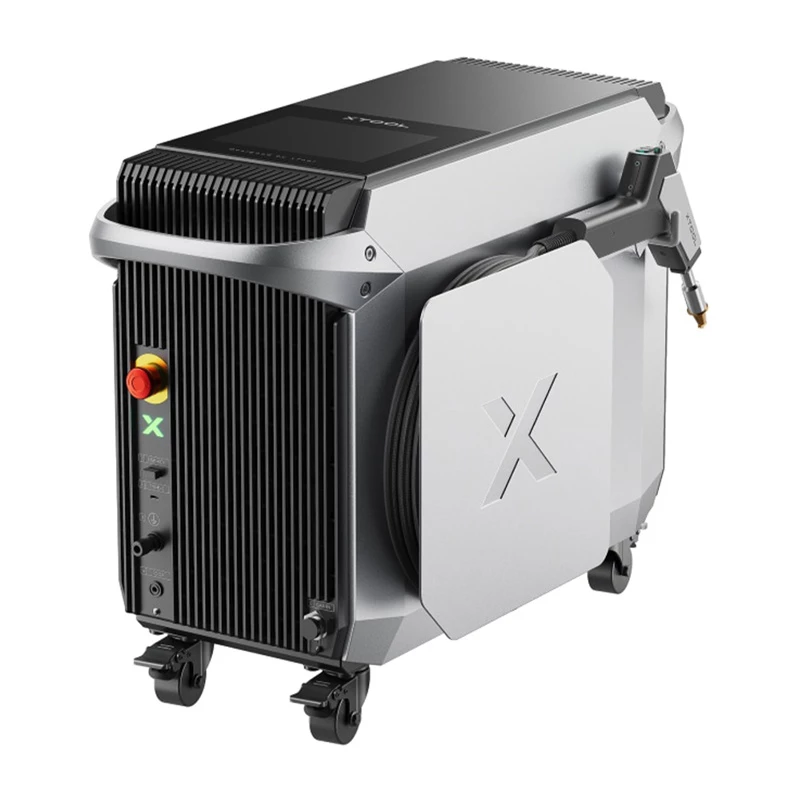

• Machine dimensions (laser unit): 728 x 327 x 512 mm; Weight (laser unit): 38.2 kg

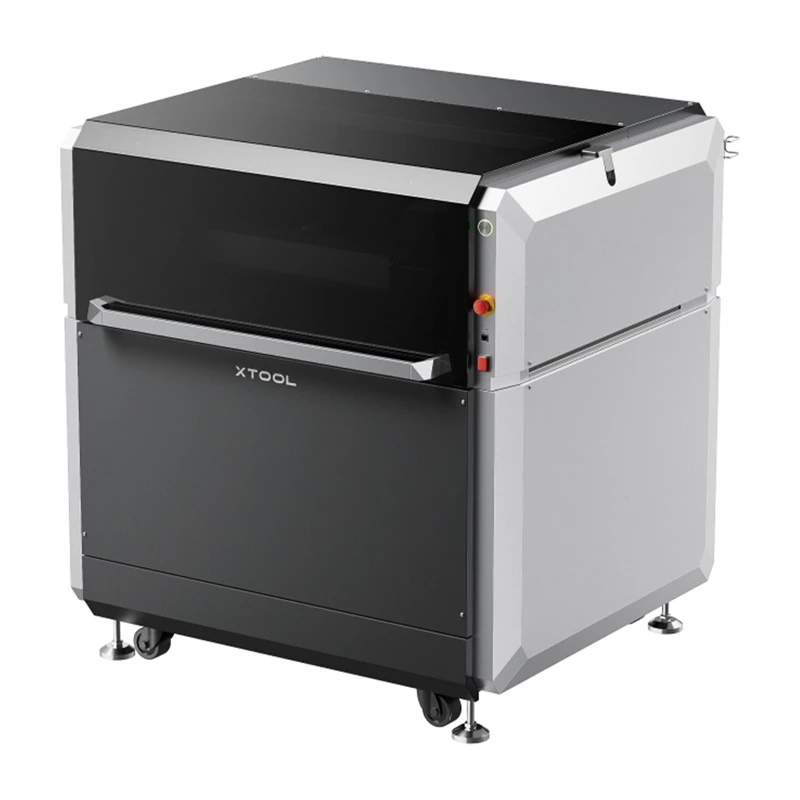

• CNC working area: 610 x 610 mm; Max. working speed: 400 mm/s (15.75 ips); Movement accuracy: ±0.1 mm

How to use

Place the xTool MetalFab on a stable, level surface and connect the power and required communication cables according to the quick reference guide. Install the appropriate nozzle or wire feeder parts from the included accessories for the selected process: welding, cutting or cleaning. Select the material type and thickness on the 8-inch touchscreen or use the supplied software for one-click parameter configuration. For CNC cutting, secure the workpiece within the 610 x 610 mm working area and confirm camera-assisted layout or manual positioning. Use recommended shielding gases (nitrogen or argon) where applicable and follow the on-screen welding mode options (continuous, spot or pulse) for the required joint and material.

Recommendations

Operate the machine with required personal protective equipment (protective goggles, heat-resistant gloves) and ensure adequate ventilation or the connected exhaust fan during cutting and cleaning. Follow safety checks: verify lid and drawer closures, monitor the three-zone temperature readouts and keep the OD5+ light filter cover in place. Use supplied calibration tools and camera calibration plate for accurate positioning and perform routine inspection of consumables (lens shields, nozzles, drive rollers) to maintain stable performance.
