Märklin H0 binario C scambio sinistro 188,3 mm con massicciata integrata, 24,3° 24611

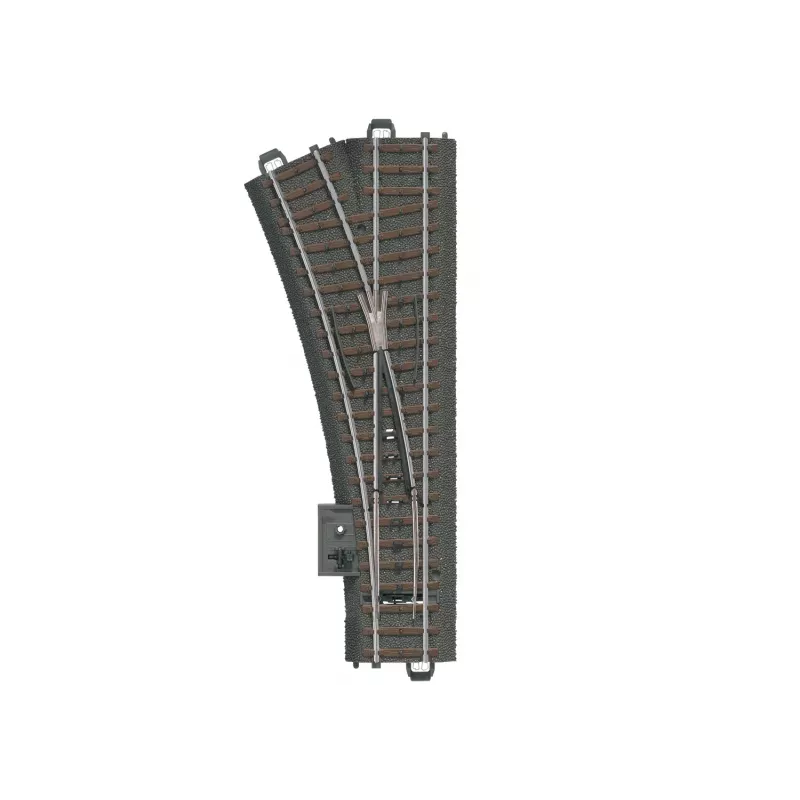

Expand your Märklin H0 layout with the 24611 left-hand turnout, a key component of the C-Track system. Designed for modellers building realistic station yards, industrial sidings, or branch lines, this turnout features an integrated ballast bed for quick, secure assembly without additional roadbed. The 188.3 mm straight length and 24.3° diverging angle provide smooth routing, while the R2 radius (437.5 mm) on the curved leg ensures reliable operation for most rolling stock. Compatible with all Märklin C-Track components, it can be operated manually or upgraded with the 74491 electric drive for remote control.

Key specifications

• Scale: H0 (1:87)
• Track system: Märklin C-Track
• Turnout direction: Left-hand
• Straight track length: 188.3 mm
• Turnout angle: 24.3 degrees
• Diverging track radius: R2 (437.5 mm)
• Integrated ballast bed: Yes
• Control mechanism: Manual (upgradeable to electric)
• Electrical system: 3-rail AC
• Material: Plastic base, nickel silver rails

Why choose it

The C-Track system offers a perfect blend of realism and convenience. The integrated roadbed eliminates the need for separate ballasting, saving time and ensuring consistent appearance. The turnout's geometry is precisely engineered for smooth operation, reducing derailments and improving reliability. Its compatibility with the optional electric drive allows for future automation, making it a versatile addition to any layout.

Ideal use cases

• Creating passing sidings or station tracks
• Building industrial spurs or freight yards
• Adding operational interest to a main line
• Expanding an existing C-Track layout

Good to know

The turnout is part of the Märklin C-Track system, which is known for its sturdy construction and easy assembly. It is designed for use with Märklin 3-rail AC locomotives and rolling stock. For electric operation, the Märklin 74491 electric drive can be installed (sold separately).
