MB AMD B850 SAM5 MATX/B850M FORCE WF6E 1.2 GIGABYTE

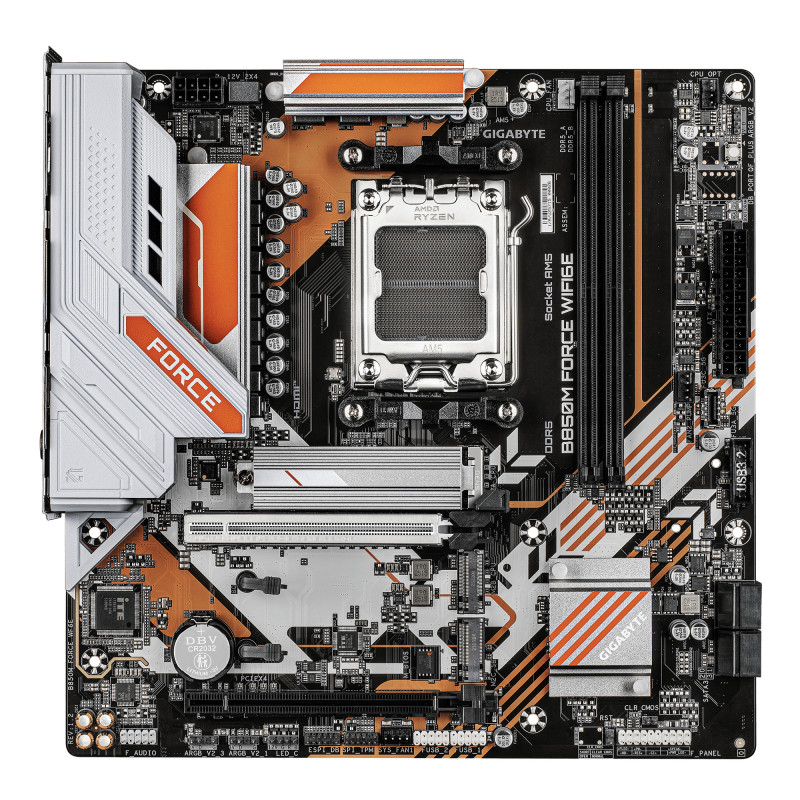

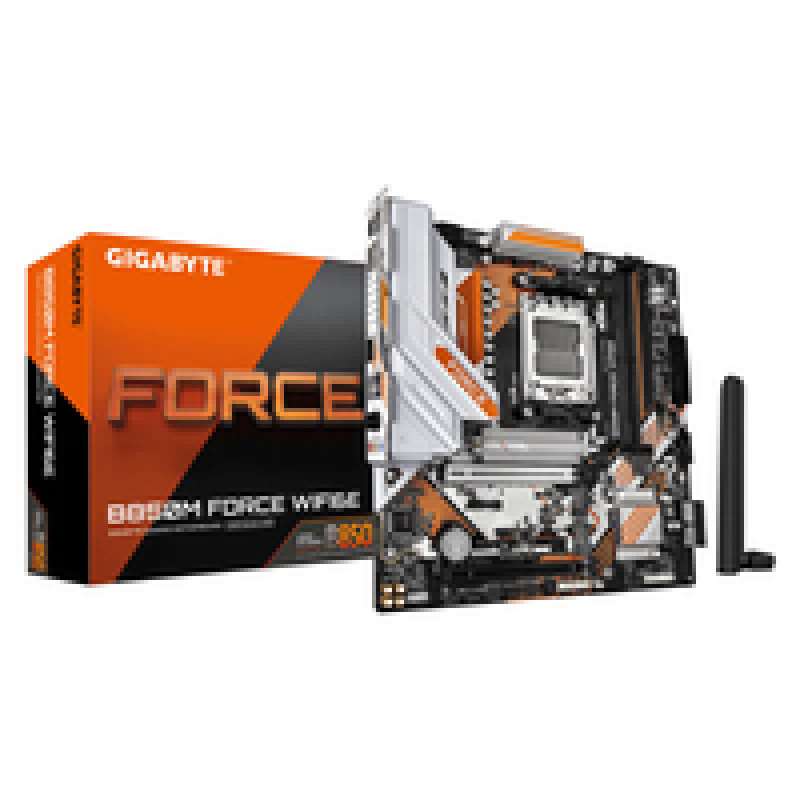

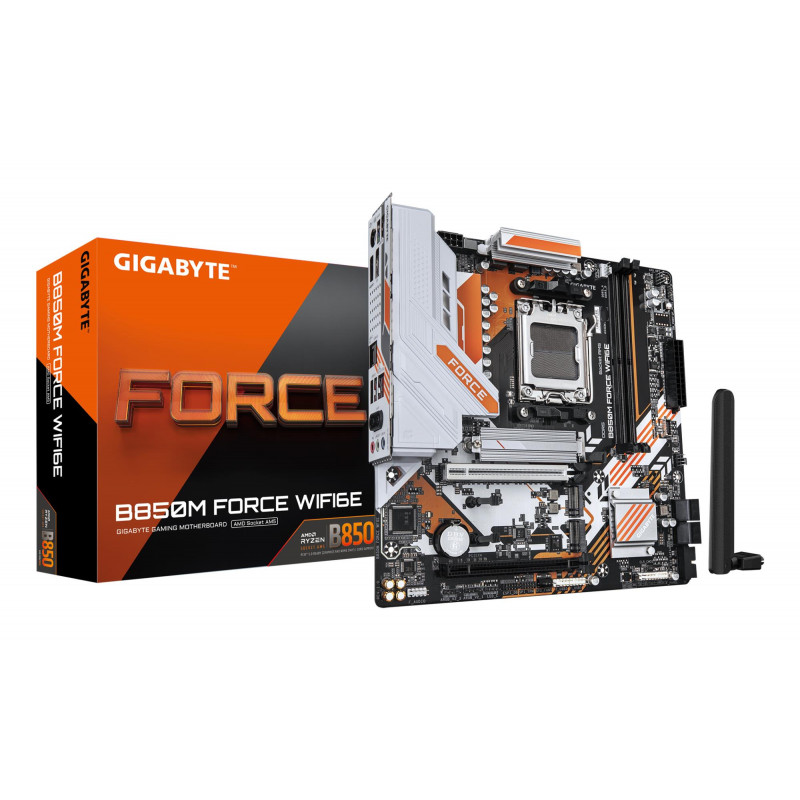

The GIGABYTE B850M FORCE WF6E 1.2 brings the latest AMD B850 chipset to the Micro-ATX form factor, balancing compact dimensions with serious connectivity. Unlike many boards in this class that compromise on wireless or storage options, this model includes Wi-Fi 6E and dual M.2 slots—one running at PCIe 5.0 speeds—so you can build a high-performance small-footprint system without cutting corners.

Highlights

• AMD AM5 socket supports Ryzen 7000, 8000, and 9000 series processors
• AMD B850 chipset with robust power delivery for stable performance
• DDR5 memory support up to 192 GB across four DIMM slots
• Wi-Fi 6E and Bluetooth 5.2 for modern wireless connectivity
• 2.5 Gigabit Ethernet for fast wired networking
• One PCIe 5.0 x4 M.2 slot and one PCIe 4.0 x4 M.2 slot
• USB 3.2 Gen 2x2 Type-C port on the rear I/O

In daily use

This motherboard handles everything from gaming to content creation. The AM5 socket ensures compatibility with current and upcoming AMD CPUs, while the DDR5 memory support provides ample bandwidth for multitasking and demanding applications. The inclusion of Wi-Fi 6E means you can connect to the latest routers for low-latency online gaming and fast file transfers, and the 2.5GbE LAN port offers a reliable wired alternative. With two M.2 slots, you can install a high-speed PCIe 5.0 NVMe SSD for your operating system and a secondary drive for additional storage, all while keeping the build tidy in a Micro-ATX case.

Full specifications

• CPU Socket: AMD AM5
• Chipset: AMD B850
• Form Factor: Micro-ATX
• Memory: 4 x DDR5 DIMM slots, max 192 GB
• Expansion Slots: 1 x PCIe 4.0 x16
• Storage: 2 x M.2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4), 4 x SATA 6Gb/s
• Network: 2.5 Gigabit Ethernet, Wi-Fi 6E, Bluetooth 5.2
• Rear USB: 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0/1.1
• Audio: Realtek ALC897 codec
• Video Outputs: 1 x HDMI 2.1, 1 x DisplayPort 1.4 (CPU dependent)
• Power Design: Digital VRM (12+2+1 phases)
• BIOS: UEFI AMI BIOS
• RGB Headers: 2 x Addressable LED, 2 x RGB LED
• OS Support: Windows 11 64-bit

Final note

For builders who want a future-ready Micro-ATX platform with excellent wireless and storage options, the GIGABYTE B850M FORCE WF6E 1.2 delivers a compelling mix of performance and connectivity.
