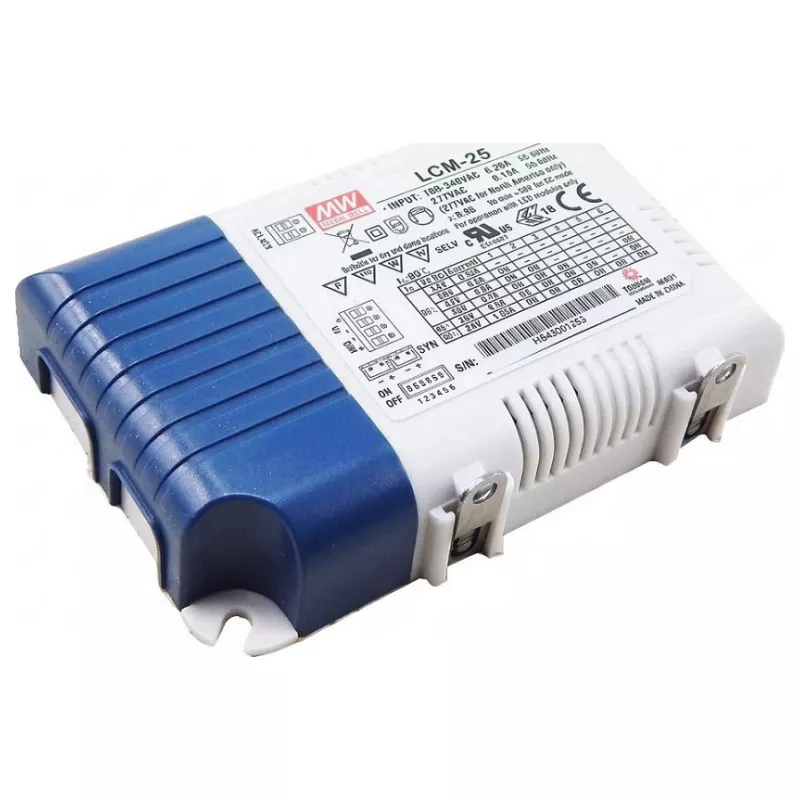

Mean Well LCM-25 Driver LED 25,2W corrente costante 350-1050mA DALI Push Dim

The Mean Well LCM-25 is a high-performance LED driver designed for professional lighting applications. With a compact plastic case and IP20 rating, it delivers a constant current output of 350-1050mA (selectable via DIP switch) and a maximum output voltage of 54V, providing up to 25.2W of power. The driver features both DALI and Push Dim interfaces for smooth 0-100% dimming, making it ideal for commercial and residential LED lighting systems.

Advantages

High efficiency of 86% and power factor >0.95 at 230VAC ensure energy savings and compliance with modern standards. The fully isolated plastic housing enhances safety and durability. Multiple protection features (short circuit, over voltage, over temperature) guarantee reliable operation.

Suitable for

• LED downlights, spotlights, and panel lights
• Dimmable LED lighting systems with DALI or Push Dim control
• Indoor commercial and residential installations

Key specifications

• Output Power: 25.2 W
• Output Current Range: 350-1050 mA (selectable)
• Output Voltage (Max): 54 VDC
• Input Voltage: 180-295 VAC
• Input Frequency: 47-63 Hz
• Dimming Interface: DALI, Push Dim
• Dimming Range: 0-100%
• Efficiency: 86%
• Power Factor: >0.95 at 230VAC
• Protection: Short Circuit, Over Voltage, Over Temperature
• Operating Temperature (Case): -20 to +90 °C
• Certifications: CE, CB, ENEC, RCM, UL/cUL
• IP Rating: IP20
• Housing: Fully isolated plastic case

Recommendations

For optimal performance, pair with compatible LED modules that require constant current drive. Ensure proper ventilation and avoid exposure to moisture. The driver is suitable for indoor use only.
