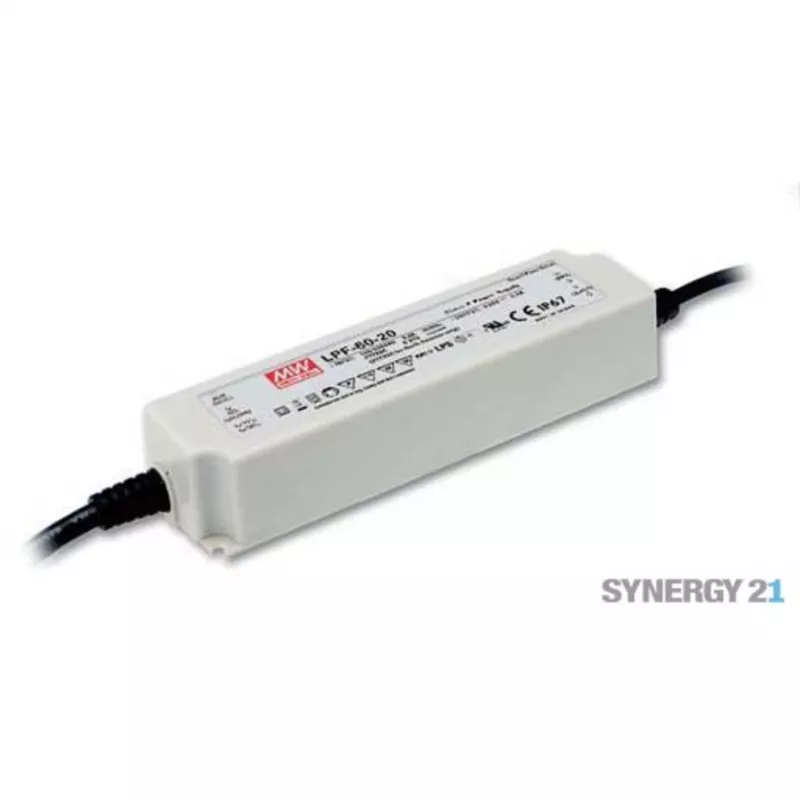

Meanwell LPF-60D-42 alimentatore LED 60W 42V 1.43A IP67 dimmerabile

The Meanwell LPF-60D-42 is a high-performance LED power supply designed for demanding indoor and outdoor lighting applications. With a power output of 60W and a constant voltage/constant current (CV+CC) output of 42V DC at 1.43A, this driver delivers reliable and efficient power to LED luminaires. Its IP67 rating ensures protection against dust and water immersion, making it suitable for use in harsh environments. The LPF-60D-42 features 3-in-1 dimming (0-10VDC, PWM, resistance) for flexible lighting control, and operates over a wide input voltage range of 90-305V AC. With a lifespan of 50,000 hours and an efficiency of up to 90%, this power supply is a cost-effective and durable solution for professional lighting installations.

Advantages

High efficiency (90%) reduces energy costs and heat generation. IP67 rating allows for outdoor and wet location use. Wide input voltage range ensures compatibility with global power grids. 3-in-1 dimming provides versatile control options. Compact plastic housing with multiple protections (short circuit, over current, over voltage, over temperature) ensures long-term reliability.

Suitable for

• LED street lighting
• LED floodlights
• LED garden and landscape lighting
• LED signage and display lighting
• Industrial and commercial LED lighting

Key specifications

• Brand: Meanwell
• Model: LPF-60D-42
• MPN: LPF-60D-42
• EAN: 4038816030214
• Power Output: 60W
• Output Voltage: 42V DC
• Output Current: 1.43A
• Input Voltage: 90-305V AC
• Input Frequency: 47-63 Hz
• IP Rating: IP67
• Dimming: 3-in-1 (0-10VDC, PWM, Resistance)
• Lifespan: 50,000 hours
• Efficiency: 90%
• Operating Mode: Constant Voltage + Constant Current
• Protections: Short Circuit, Over Current, Over Voltage, Over Temperature
• Power Factor: >0.9
• Withstand Voltage: I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
• Operating Temperature: -40 ~ +70°C
• Certifications: UL, CUL, TUV, CB, CE, FCC
• Housing Material: Plastic

Recommendations

For optimal performance, ensure the input voltage is within the specified range and the load does not exceed 60W. Use with compatible LED fixtures that support 0-10V or PWM dimming for best results. Suitable for both indoor and outdoor installations where IP67 protection is required.
