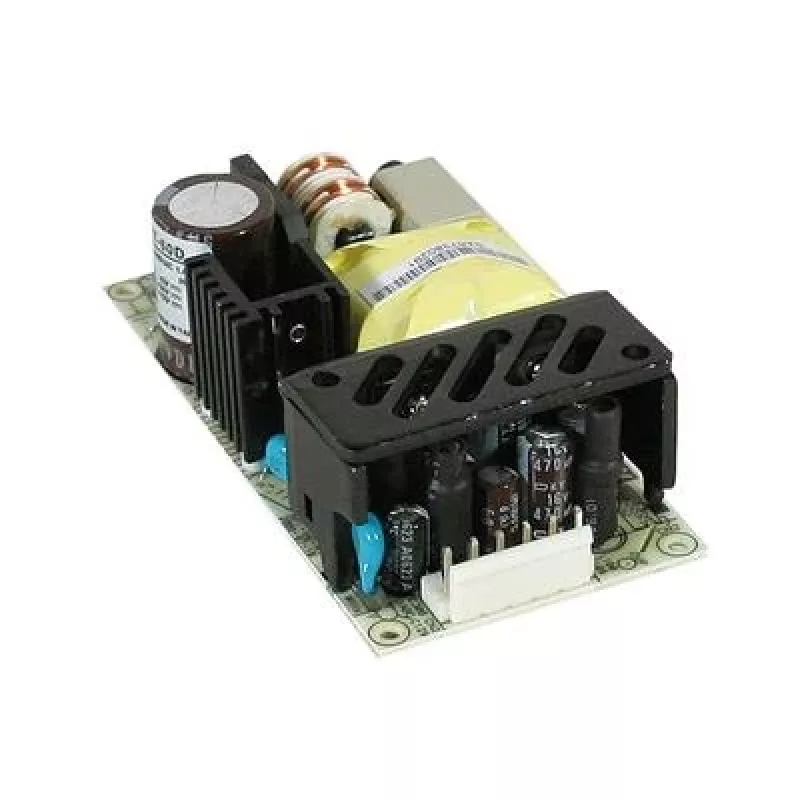

MEAN WELL RPT-60B alimentatore 60W a tre uscite 5V/12V/-12V

Delivering 60 W across three regulated outputs, the MEAN WELL RPT-60B combines a +5 V/8 A rail with +12 V/2.5 A and -12 V/0.5 A channels, making it a versatile power source for mixed-voltage electronics. It accepts a universal AC input of 88–264 V and operates from -20 °C to +70 °C with free-air convection cooling.

Overview

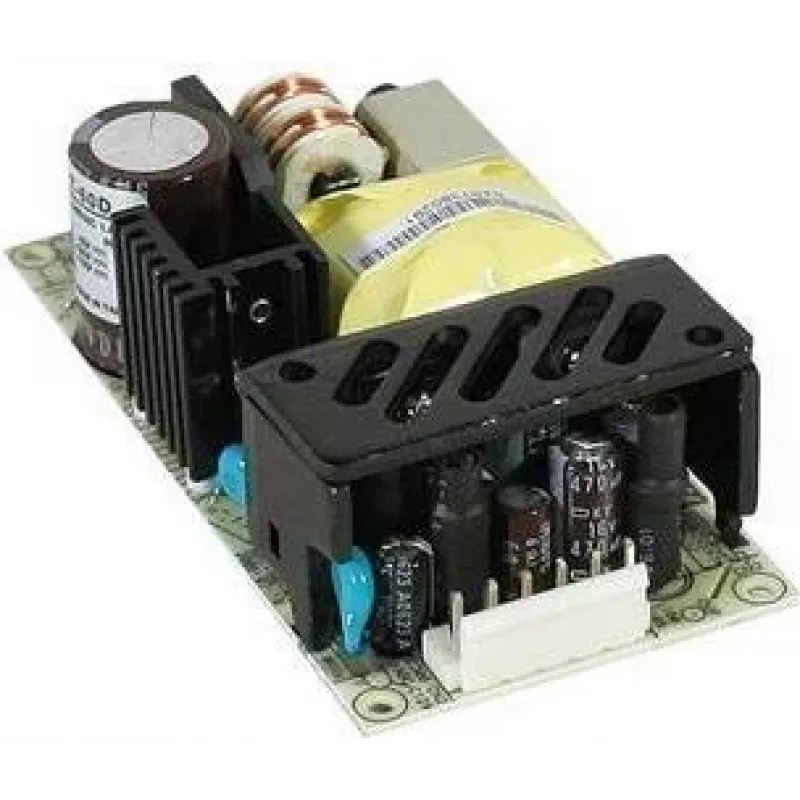

The RPT-60B is a triple-output switching power supply built for PCB or chassis mounting. Its compact design and wide input range suit industrial controls, test equipment, and embedded systems that require multiple DC voltages from a single module.

What stands out

• Triple output: +5 V (8 A), +12 V (2.5 A), -12 V (0.5 A)
• Universal AC input: 88–264 VAC (125–373 VDC)
• High efficiency: 78% typical
• Full protection: short circuit, overload, over voltage
• Wide operating temperature: -20 °C to +70 °C
• 3 kVAC isolation between input and output

Technical details

• Power output: 60 W
• Input frequency: 47–63 Hz
• Ripple & noise: 120 mVp-p max
• Cooling: free air convection
• Safety standards: UL60950-1, TUV EN60950-1
• EMC: EN55032 Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Our verdict

A reliable, compact triple-output supply for projects needing multiple voltages without multiple converters.
