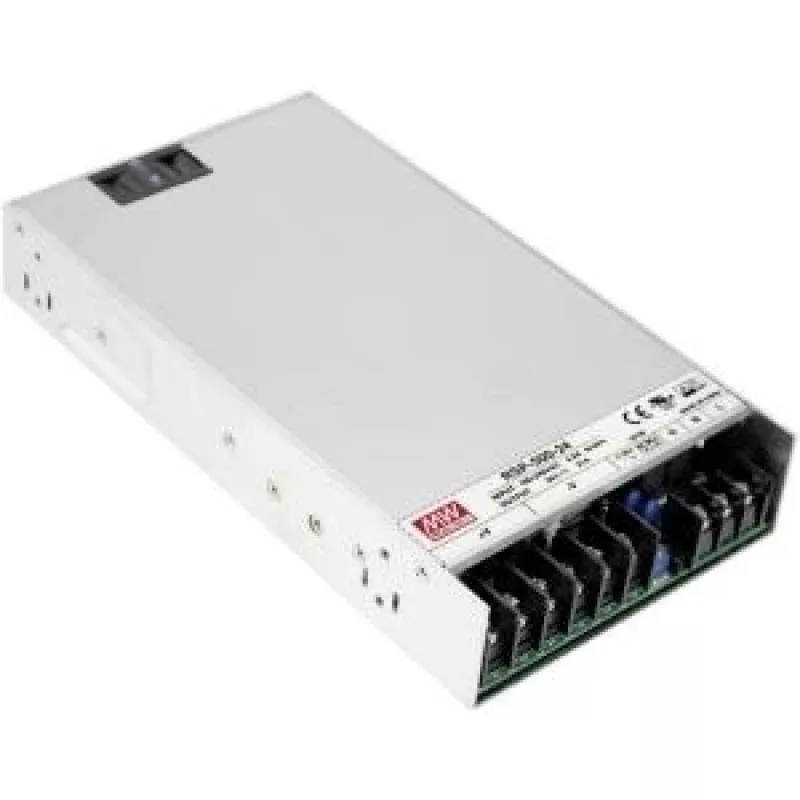

MEAN WELL RSP-500-48 alimentatore switching chiuso 504W 48V 10.5A con PFC

Industrial-grade enclosed AC/DC power supply delivering a regulated 48V DC output at up to 10.5A, with a total rated power of 504W. The RSP-500-48 combines active power factor correction, a wide input voltage range, and comprehensive protection features to ensure reliable operation in demanding automation, control, and communication systems.

Advantages

The RSP-500-48 achieves up to 90% efficiency, reducing energy waste and heat generation. Active PFC (typically 0.95) minimizes harmonic distortion and improves power utilization. A built-in DC fan with speed control automatically adjusts cooling based on load and temperature, extending component life. Remote ON/OFF, remote sense, and DC OK signal outputs simplify system integration and monitoring.

Suitable for

• Industrial automation and process control systems
• Telecommunication and network equipment
• LED lighting and signage installations
• Test and measurement instruments
• Battery charging and power backup systems

Key specifications

• Output: 48V DC, 10.5A, 504W continuous
• Input: 90–264VAC (127–370VDC), 47–63Hz
• Efficiency: up to 90%
• Active PFC: power factor >0.95 at full load
• Output adjustment range: 43.2–52.8V
• Ripple & noise: 150mVp-p max
• Line regulation: ±0.2%, load regulation: ±0.5%
• Protections: short circuit, overload, over voltage, over temperature
• Cooling: built-in DC fan with speed control
• Operating temperature: -30°C to +70°C (derating above 50°C)
• Safety: UL60950-1, TUV EN60950-1, CB, CE
• EMC: EN55022 Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
• Isolation: I/P-O/P 3kVAC, I/P-FG 2kVAC, O/P-FG 0.5kVAC
• Dimensions: 230 x 127 x 40.5 mm (L x W x H)
• Weight: 1.3 kg

Recommendations

For reliable 48V power in industrial environments, the RSP-500-48 offers an excellent balance of performance, protection, and integration features. Ensure adequate ventilation and consider derating for ambient temperatures above 50°C. Use remote sense for precise voltage regulation at the load.
