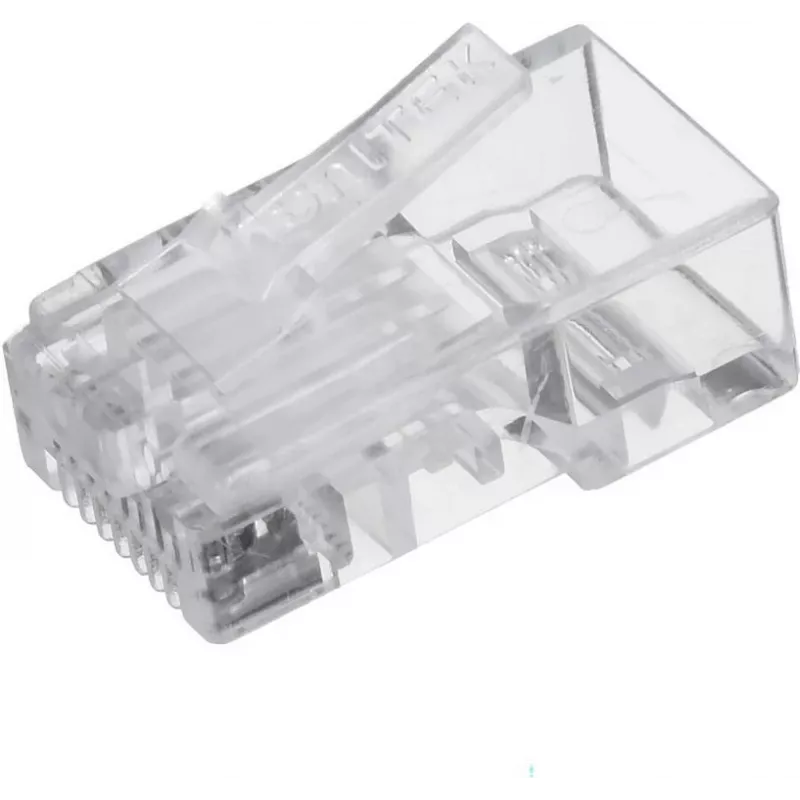

UNITEK connettore modulare RJ45 (8P8C) Cat.6, 100 pezzi, trasparente

RJ45 modular plugs engineered for high-performance Cat.6 network cabling, delivering reliable gigabit and 10-gigabit Ethernet connectivity in a convenient 100-piece pack. These transparent 8P8C connectors feature gold-plated contacts for optimal signal integrity and corrosion resistance, making them ideal for custom patch cable assembly and network installations.

Advantages

Gold-plated phosphor bronze contacts ensure low contact resistance and long-term durability. The one-piece design simplifies crimping, while the transparent polycarbonate housing allows visual verification of wire placement. Compatible with both solid and stranded conductors (23-26 AWG), these plugs support data rates up to 10 Gbps and frequencies up to 250 MHz, meeting TIA/EIA-568-C.2 standards.

Suitable for

• Creating custom-length Cat.6 patch cables
• Network infrastructure installations
• Data centers and server rooms
• Home and office networking projects
• Repairing damaged RJ45 connectors

Key specifications

• Connector type: RJ45 (8P8C)
• Category rating: Cat.6
• Shielding: UTP (unshielded)
• Contact plating: Gold (50 micron)
• Contact material: Phosphor bronze
• Housing material: Polycarbonate (PC), transparent
• Quantity: 100 pieces
• Compatible conductor: Solid and stranded, 23-26 AWG
• Termination: Crimp-on
• Data rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 250 MHz
• Compliance: TIA/EIA-568-C.2, RoHS

Recommendations

For best results, use a high-quality RJ45 crimping tool and Cat.6 cable. Verify wire sequence (T568A or T568B) before crimping. These plugs are suitable for both solid and stranded conductors, but ensure proper strain relief for stranded cables.
