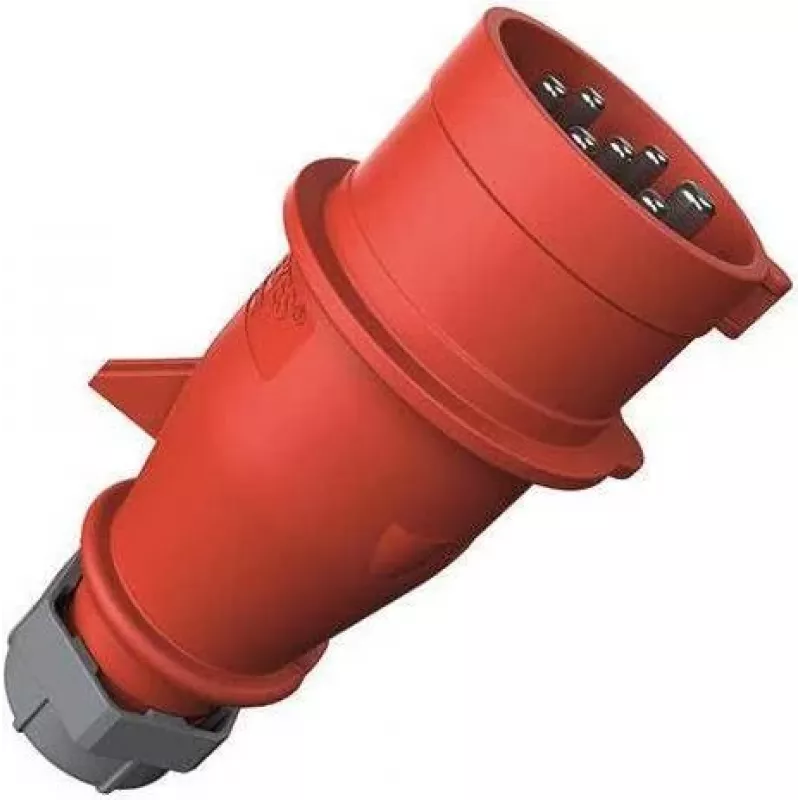

MENNEKES AM-TOP Spina industriale 16A 7P 6h 400V IP44

On construction sites and in industrial facilities, reliable power connections are non-negotiable. The MENNEKES AM-TOP 16A 7-pole 6h 400V IP44 industrial plug delivers exactly that, providing a secure and durable solution for connecting equipment to three-phase power supplies. With its robust design and compliance with IEC 60309-2, this plug is engineered to withstand demanding environments while ensuring safe and efficient operation.

Key specifications

• Current rating: 16 A
• Voltage rating: 400 V
• Number of poles: 7 (3P+N+PE + auxiliary contacts)
• Earthing position: 6h (6 o'clock)
• Ingress protection: IP44 (splash-proof)
• Frequency: 50/60 Hz
• Connection technology: Screw terminals
• Housing material: Polyamide (PA6)
• Contact material: Brass, nickel-plated
• Cable entry: Cable gland for 8-18 mm diameter
• Standard compliance: IEC 60309-2
• Product series: AM-TOP
• Colour code: Blue (for 400V, 6h)

Why choose it

The AM-TOP series from MENNEKES is renowned for its reliability and ease of installation. The screw terminals allow for quick and secure wiring, while the cable gland provides strain relief and protection against dust and water ingress. The polyamide housing is impact-resistant and suitable for outdoor use, making this plug a long-lasting investment for your power distribution needs.

Ideal use cases

• Connecting portable distribution boards on construction sites
• Powering industrial machinery and equipment
• Use in workshops and maintenance areas
• Temporary power supply for events and outdoor installations

Good to know

This plug is designed for use with corresponding MENNEKES AM-TOP sockets and couplers, ensuring a perfect fit and reliable connection. Always ensure that the plug is disconnected from the power source before wiring. The IP44 rating means it is protected against splashing water from any direction, but it should not be submerged.
