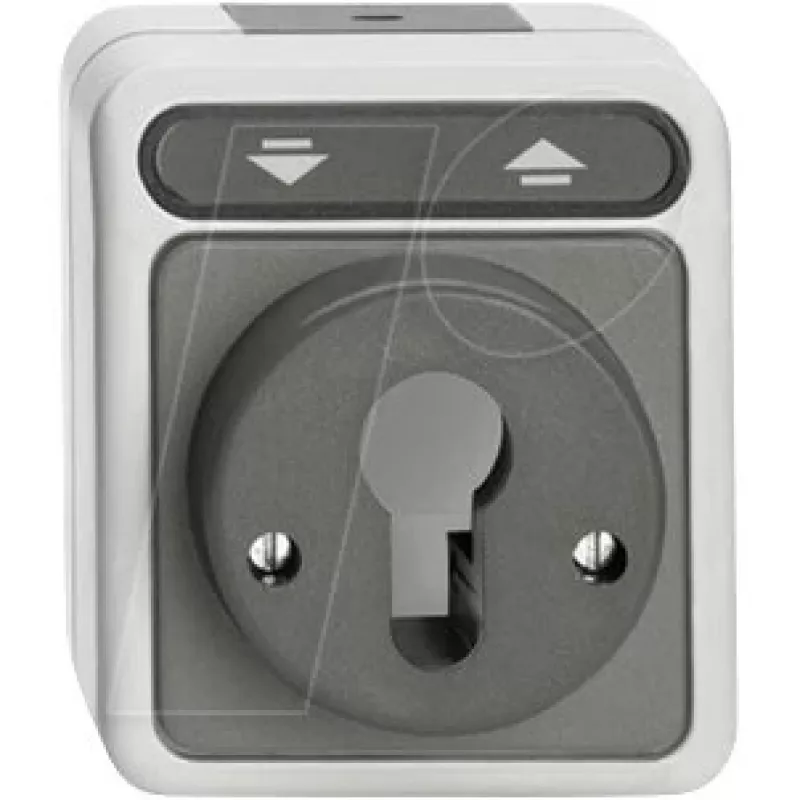

Merten AQUASTAR pulsante/interruttore a scatto per tapparella per cilindro di chiusura, verde chiaro MEG3717-8029

This Merten AQUASTAR roller shutter switch insert stands out by combining both momentary and latching actions in a single unit, specifically designed for key-operated control via a standard locking cylinder. Unlike generic switch inserts, it is built to withstand damp and outdoor environments when installed in a suitable AQUASTAR housing, making it a reliable choice for controlling roller shutters, blinds, and awnings in challenging conditions.

Highlights

• Dual operation: push-button (momentary) and latch (maintained) for flexible control
• Key-operated via locking cylinder for secure access
• Up/stop/down control for roller shutter motors
• Rated for 250 V AC, 10 A with screw terminals
• Light green thermoplastic construction, flush-mounted
• Designed for IP44/IP55 systems when used with appropriate AQUASTAR housing

In daily use

Install this insert into an AQUASTAR flush-mounted housing and pair it with a locking cylinder (not included) to create a tamper-resistant control point. The three-position changeover switch allows precise operation of roller shutters, blinds, or awnings. The momentary mode is ideal for brief adjustments, while the latch mode holds the selected position until changed. The light green finish blends with AQUASTAR cover plates, and the robust thermoplastic material ensures long service life even in humid or outdoor settings.

Full specifications

• Brand: Merten
• Model: MEG3717-8029
• MPN: MEG3717-8029
• EAN: 4042811180249
• Product type: Roller shutter switch insert
• Operation type: Push-button (momentary) and latch (maintained)
• Control mechanism: For locking cylinder (key operated)
• Function: Up/stop/down control
• Series: Merten AQUASTAR
• Colour: Light green
• Mounting type: Flush-mounted
• Rated voltage: 250 V AC
• Rated current: 10 A
• Switch type: 3-position changeover switch
• Connection type: Screw terminals
• Material: Thermoplastic
• IP protection (system): Designed for IP44/IP55 systems (with appropriate housing)
• Compatibility: Merten AQUASTAR switch range
• Application: Control of roller shutter motors, blinds, awnings
• Environmental suitability: Suitable for damp rooms and outdoor areas (when installed in AQUASTAR housing)

Final note

For a secure, weather-resistant roller shutter control solution, the Merten AQUASTAR MEG3717-8029 delivers both versatility and durability in a compact, key-operated insert.
