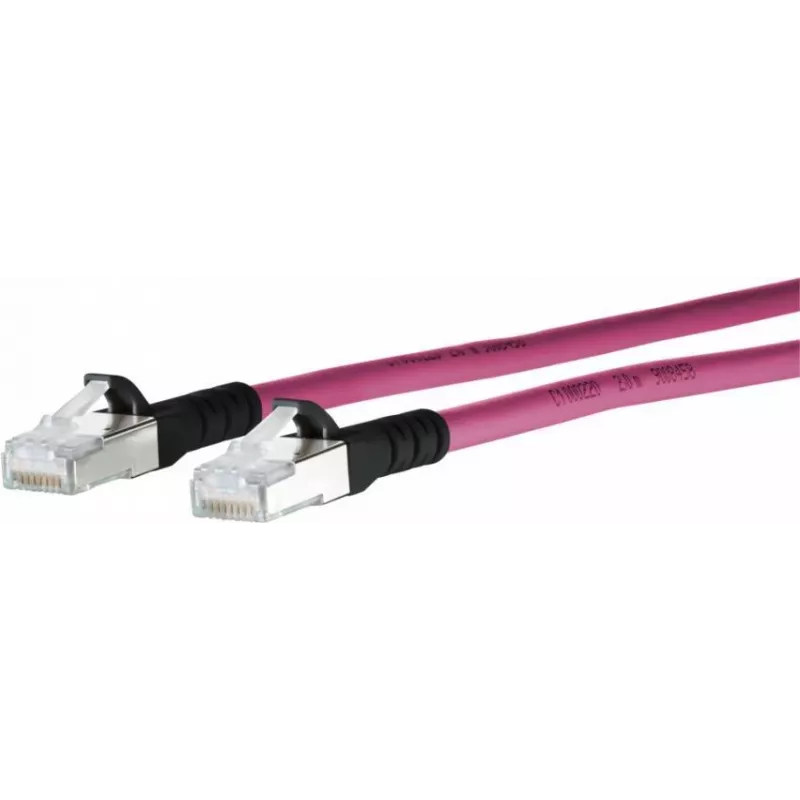

METZ CONNECT 130845A002-E cavo di rete 10 m Cat6a S/FTP (SF/UTP) RJ45 magenta

The METZ CONNECT 130845A002-E is a high-performance Cat6a network patch cable designed for reliable 10 Gigabit Ethernet connections in demanding environments. With a length of 10 meters and S/FTP shielding, this cable ensures minimal crosstalk and interference, making it ideal for data centers, office networks, and industrial Ethernet applications.

Advantages

This cable offers superior signal integrity and data transfer rates up to 10 Gbps, supporting bandwidths of 500 MHz. The S/FTP (Screened Foiled Twisted Pair) construction provides excellent protection against electromagnetic interference, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety in case of fire. It is also compatible with Power over Ethernet (PoE, PoE+, PoE++), allowing for flexible device powering.

Suitable for

• Data centers requiring high-speed, reliable connections
• Office networks with high bandwidth demands
• Industrial Ethernet applications where interference is a concern
• 10GBASE-T networks

Key specifications

• Category: Cat6a (Class EA)
• Length: 10 m
• Shielding: S/FTP (SF/UTP, PIMF)
• Connectors: RJ45 Male to RJ45 Male
• Data Transfer Rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor Material: Copper (Stranded, AWG 26/7)
• Jacket Material: LSZH
• Wiring Standard: TIA/EIA 568B
• Impedance: 100 Ohm
• PoE Support: Yes (PoE, PoE+, PoE++)
• Operating Temperature: -20°C to 60°C
• Flammability Rating: IEC 60332-1-2
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance in high-speed networks, pair this cable with compatible Cat6a switches and patch panels. Ensure proper cable management to maintain signal integrity.
