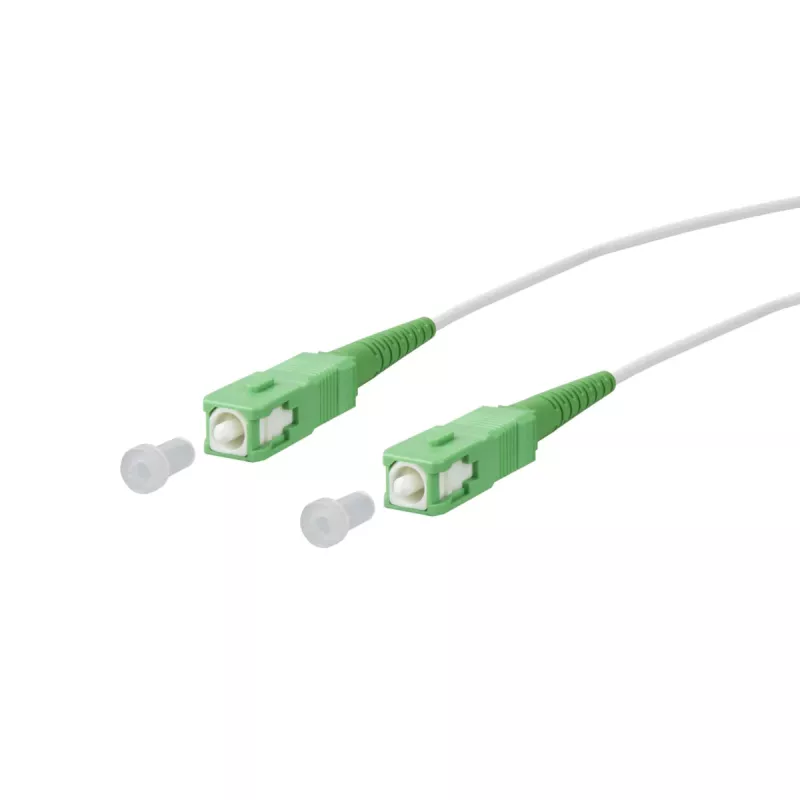

METZ CONNECT Cavo patch in fibra ottica OpDAT SC APC a SC APC OS2 monomodale simplex 2,0 m bianco

The METZ CONNECT OpDAT fiber optic patch cable is a high-performance single-mode (OS2) connection solution designed for demanding network environments. Featuring SC APC connectors on both ends, this simplex cable ensures low insertion loss and high return loss, making it ideal for FTTx, data centers, and telecommunications applications. The white LSZH (Low Smoke Zero Halogen) jacket provides safety and easy identification.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤ 0.25 dB and return loss ≥ 60 dB. The APC polishing minimizes back reflection, crucial for high-speed data transmission. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety in confined spaces.

Suitable for

• Data centers requiring reliable single-mode connections
• Telecommunications networks and FTTx installations
• LAN and enterprise cabling infrastructure

Key specifications

• Fiber Type: Single-mode (OS2) 9/125 µm
• Connector Type: SC APC to SC APC
• Cable Length: 2.0 m
• Jacket Color: White
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss: ≤ 0.25 dB typical
• Return Loss: ≥ 60 dB typical
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61753-1, IEC 61754-4, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard SC APC adapters and equipment.
