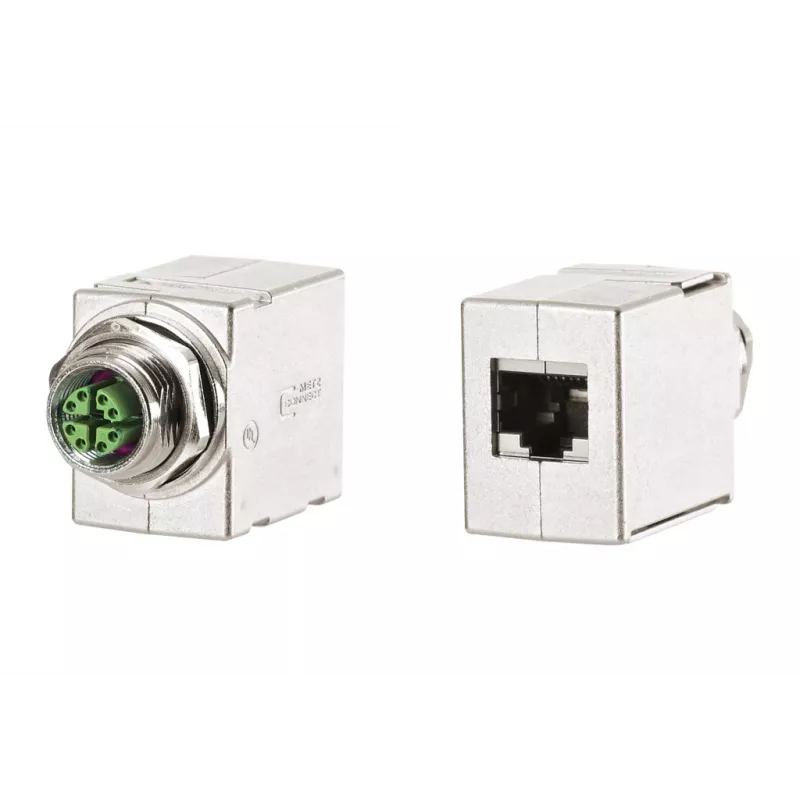

METZ CONNECT connettore femmina M12 codifica D, 8 poli, collegamento a vite, schermato, IP67

The METZ CONNECT M12 D-coded female connector (MWN811A415) is a high-performance, shielded field-assembled connector designed for reliable data transmission in industrial Ethernet and PROFINET applications. With 8 poles and screw termination, it ensures secure and easy wiring for solid and stranded conductors. The robust zinc die-cast housing with nickel plating provides excellent durability and EMI protection, while the IP67 rating guarantees resistance to dust and water immersion when mated.

Advantages

This connector offers quick and tool-free field assembly, reducing installation time and costs. The D-coding ensures compatibility with Ethernet networks, and the shielded design minimizes electromagnetic interference for stable data transfer. Rated for over 100 mating cycles, it delivers long-term reliability in harsh environments.

Suitable for

• Industrial Ethernet and PROFINET networks
• Automation and control systems
• Sensor and actuator connections
• Harsh environment applications requiring IP67 protection

Key specifications

• Connector type: M12, D-coded
• Number of poles: 8
• Gender: Female
• Orientation: Straight
• Shielding: Shielded
• Termination: Screw termination
• Mounting: Field assembly
• Cable outer diameter: 4.5 - 8.5 mm
• Wire cross section (solid/stranded): 0.14 - 0.5 mm² (AWG 26-20)
• Rated voltage: 30 V
• Rated current: 0.5 A at 40°C
• IP rating: IP67 (when mated)
• Operating temperature: -40 °C to +85 °C
• Housing material: Zinc die-cast, nickel-plated
• Contact material: Copper alloy, gold-plated
• Insulator material: PA (Polyamide)
• Mating cycles: > 100
• Standard: IEC 61076-2-101

Recommendations

For optimal performance, use with shielded M12 cables and ensure proper mating to achieve IP67 protection. Suitable for use with PROFINET and Ethernet/IP networks.
