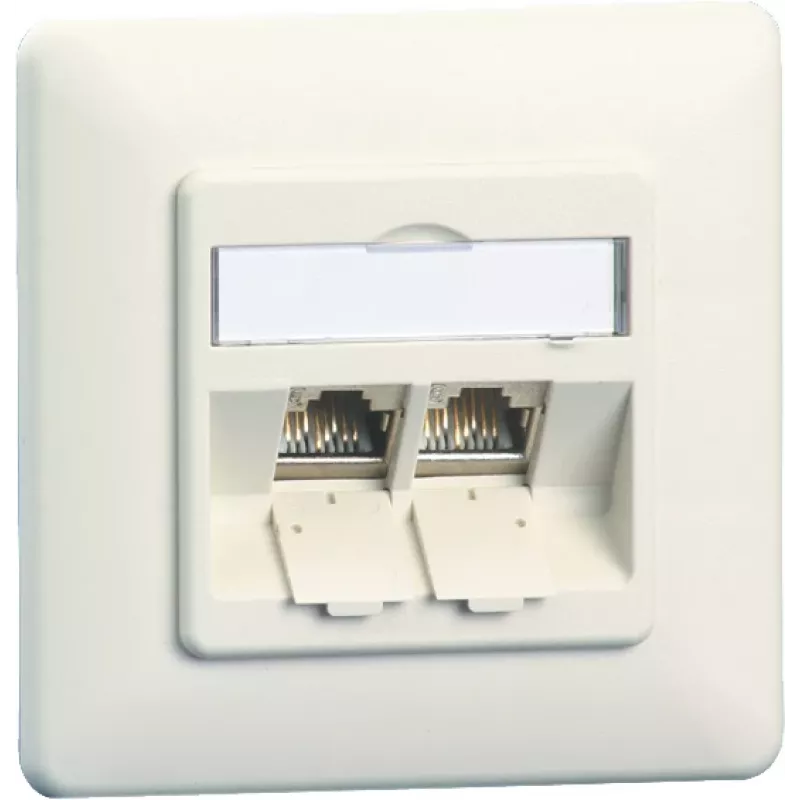

METZ CONNECT E-DAT modul 8/8(8) UP presa RJ45 da incasso Cat.6A schermata, bianco puro 1309121002-E-90

Flush-mounted RJ45 junction box engineered for 10 Gigabit Ethernet performance in a single compact unit. Its shielded Cat.6A design and tool-less LSA-Plus termination deliver reliable, high-speed data transmission with minimal installation effort.

Advantages

Gold-plated contacts and integrated dust protection shutters ensure long-term signal integrity and resistance to contamination. The pure white (RAL 9010) housing blends seamlessly into standard flush-mount boxes, while PoE+ / PoE++ support powers devices directly over the network cable.

Suitable for

• Structured cabling in office and residential buildings
• High-density network installations requiring Cat.6A performance
• Power over Ethernet applications up to IEEE 802.3bt
• Flush-mounted installations in standard Ø 60 mm boxes

Key specifications

• Connector: 1 x RJ45, shielded (STP), 8P8C
• Category: Cat.6A (IEC 60603-7-51), up to 10 Gigabit Ethernet
• Termination: LSA-Plus IDC, tool-less, TIA/EIA 568A/B
• Material: ABS plastic housing, gold-plated contacts (0.8 µm)
• Operating temperature: -40°C to +70°C
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

Ideal for installers and network professionals seeking a dependable, future-proof connection point that combines ease of installation with robust performance in demanding environments.
