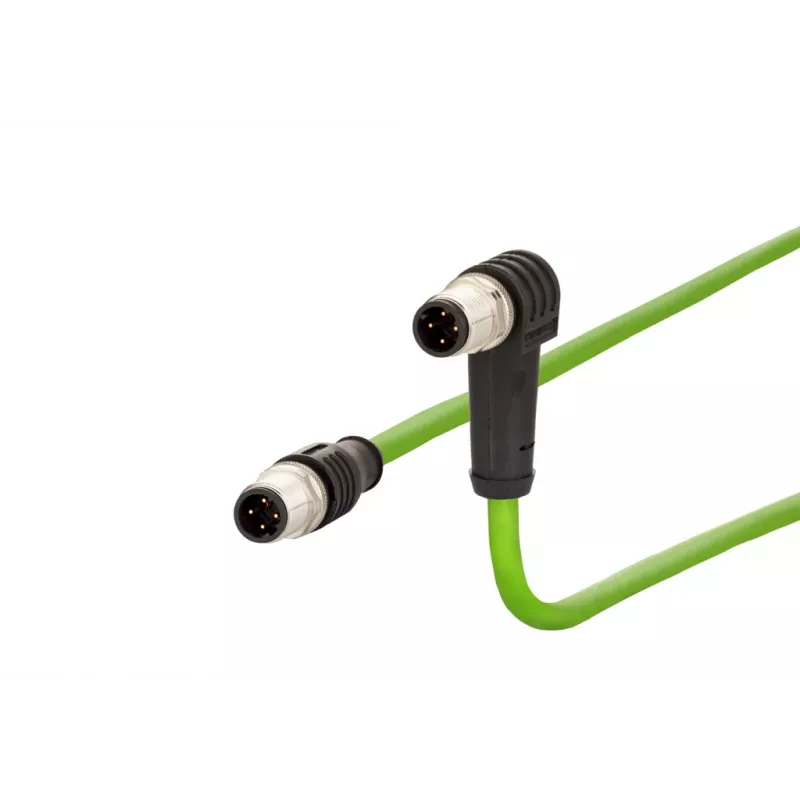

METZ CONNECT M12 cavo patch angolare su dritto, codifica D, 4 poli, 10 m, schermato, PUR, verde

The METZ CONNECT M12 angled to straight patch cable is a high-quality industrial Ethernet connection solution, designed for reliable data transmission in demanding environments. With a length of 10 meters, D-coding, and 4-pole configuration, this shielded cable ensures robust performance for PROFINET and other industrial Ethernet applications.

Advantages

This cable offers excellent durability and signal integrity thanks to its shielded design and PUR jacket. The angled M12 connector on one end allows for flexible installation in tight spaces, while the straight connector provides a standard connection. Gold-plated contacts ensure corrosion resistance and reliable connectivity over time.

Suitable for

• Industrial Ethernet networks
• PROFINET applications
• Automation and control systems
• Sensor/actuator connections

Key specifications

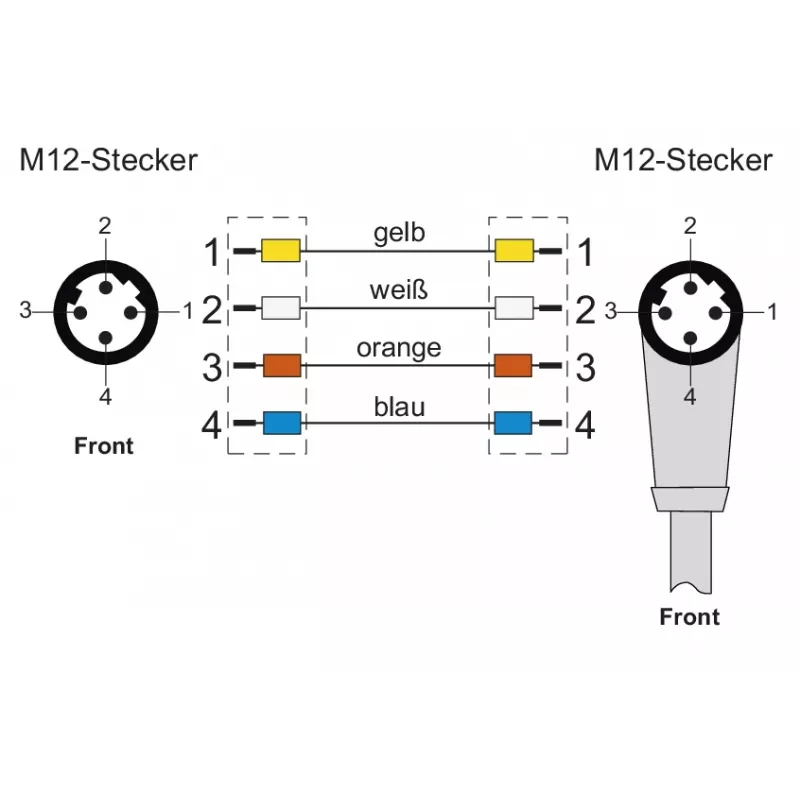

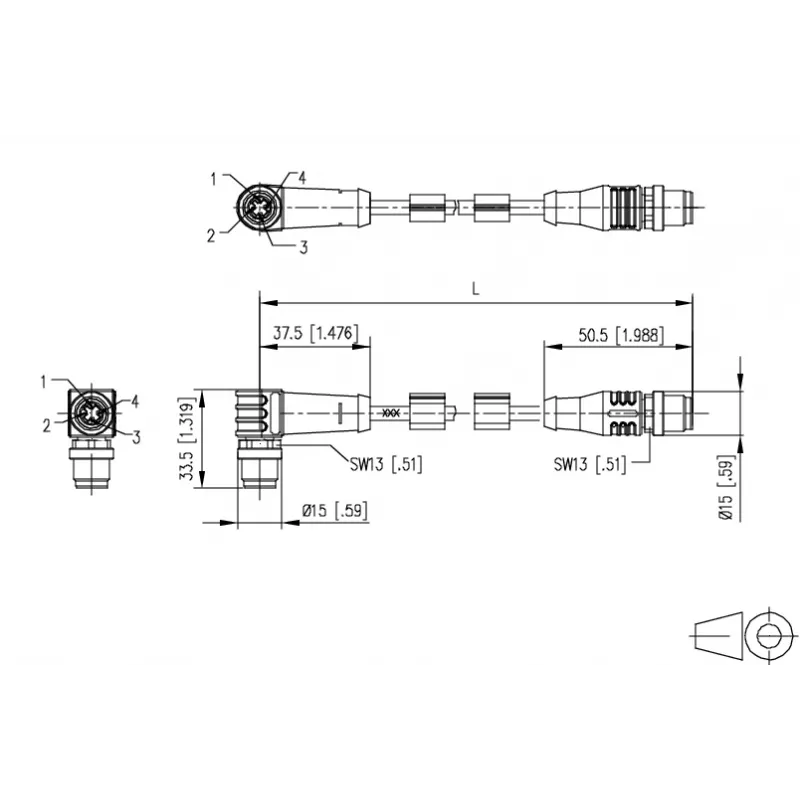

• Connector 1: M12 angled plug, D-coded
• Connector 2: M12 straight plug, D-coded
• Number of poles: 4
• Cable length: 10 m
• Shielding: Shielded
• Cable jacket material: PUR (Polyurethane)
• Cable color: Green
• IP rating: IP67 (when mated)
• Operating temperature: -25 °C to +85 °C
• Rated voltage: 250 V
• Rated current: 4 A

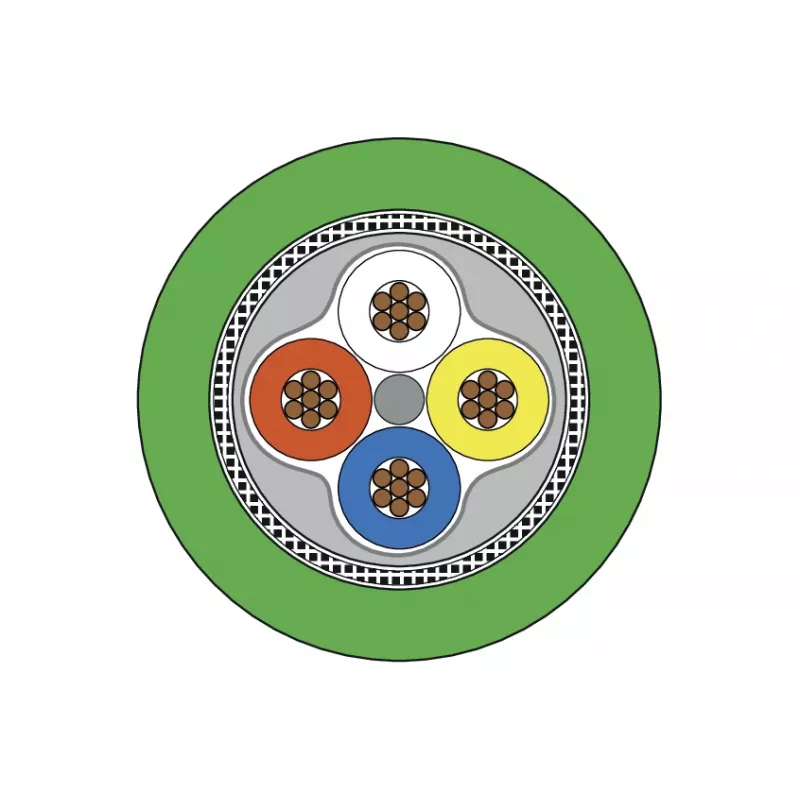

• Conductor cross-section: 4 x AWG 22
• Standards: IEC 61076-2-101
• Approvals: UL Listed

Recommendations

For optimal performance, ensure connectors are properly mated to achieve IP67 protection. This cable is ideal for use in harsh industrial environments where reliable Ethernet connectivity is critical.
