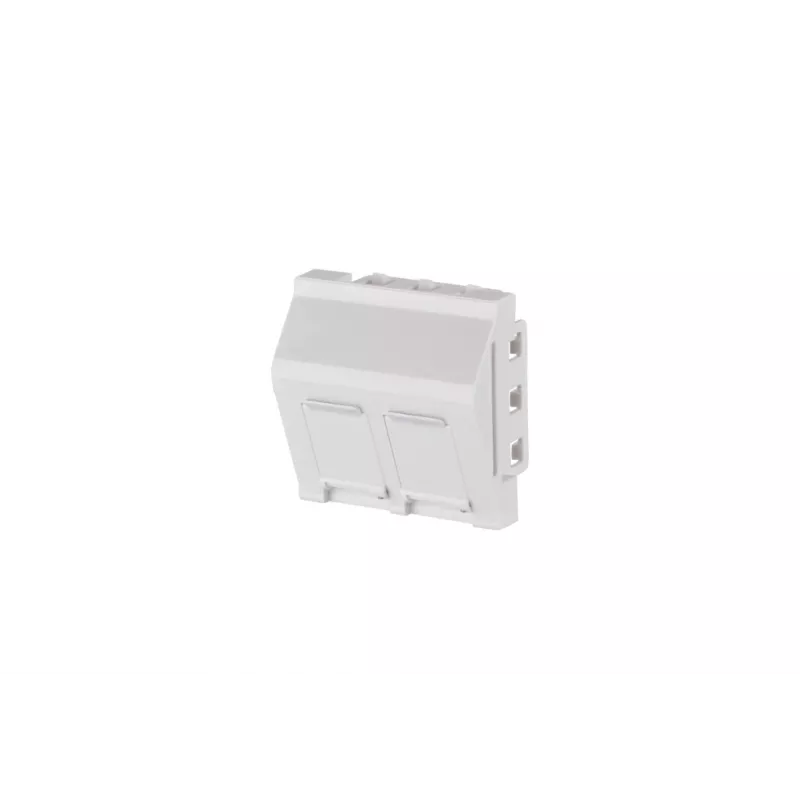

METZ CONNECT modulo keystone RJ45 Cat.6A schermato bianco 45x45mm senza attrezzi

The METZ CONNECT 130915J4502KE is a high-performance RJ45 Keystone Module designed for structured cabling networks. It supports Category 6A (Class EA) with a shielded design, ensuring reliable data transmission up to 500 MHz. The module features a 45x45 mm form factor and a tool-less IDC termination for quick and easy installation. Ideal for use in patch panels, faceplates, and wall outlets, this keystone module is compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards.

Advantages

Tool-less termination saves installation time and reduces the need for specialized tools. The shielded die-cast zinc housing provides excellent EMI/RFI protection, ensuring signal integrity in high-interference environments. Supports Power over Ethernet (PoE, PoE+, 4PPoE) for powering devices like IP cameras and wireless access points.

Suitable for

• Data center cabling infrastructure
• Enterprise network installations
• Residential and commercial structured cabling
• High-speed Ethernet applications (10GBASE-T)

Key specifications

• Product Type: RJ45 Keystone Module
• Performance Category: Cat.6A (Class EA)
• Shielding: Shielded
• Connector Type: RJ45

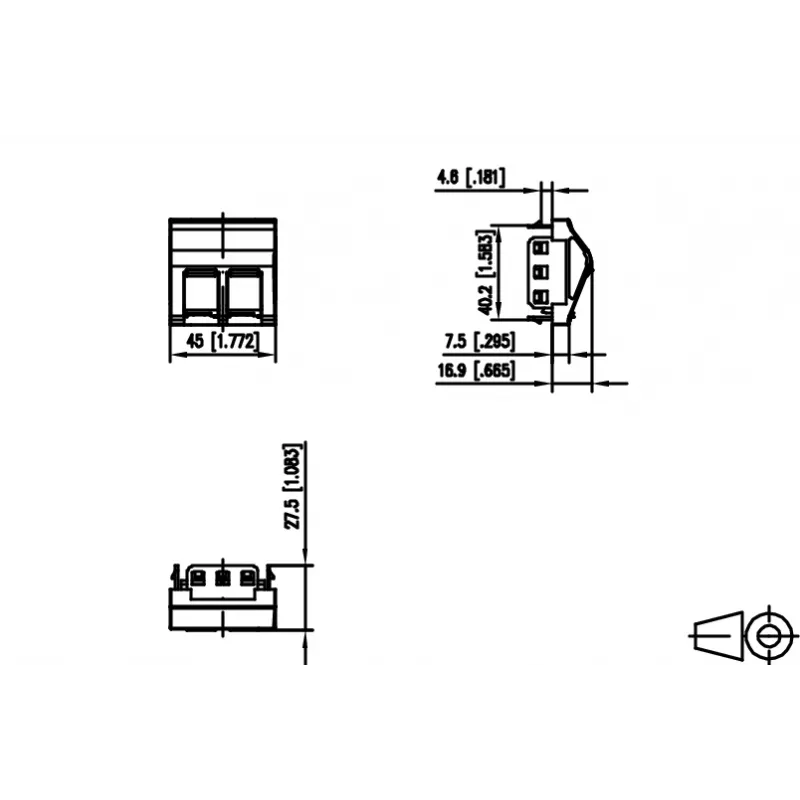

• Module Size: 45 x 45 mm
• Color: White (RAL 9010)
• Termination Type: Tool-less IDC
• Wiring Scheme: T568A / T568B
• Number of Ports: 1
• Housing Material: Die-cast zinc (shielding), Plastic (front/rear)
• Contact Material: Phosphor bronze, gold-plated
• Mounting Type: Keystone (snap-in)
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Transmission Bandwidth: Up to 500 MHz
• Power over Ethernet (PoE) Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Operating Temperature: -40 °C to +70 °C
• Insertion Cycles: > 750
• Wire Gauge Support (Solid): AWG 24/1 - 22/1
• Wire Gauge Support (Stranded): AWG 26/7 - 22/7

Recommendations

For optimal performance, use with Cat.6A or higher cabling and ensure proper grounding of the shielded system. Suitable for use with METZ CONNECT patch panels and faceplates.
