METZ OpDAT ADT VIK 2xLC-D OM4 bianco puro RAL 9010 cassetta in fibra ottica 1501107H02HC

With an insertion loss of under 0.2 dB, this METZ OpDAT ADT VIK wall outlet delivers exceptional signal integrity for high-speed fiber optic networks. The pure white RAL 9010 housing blends seamlessly into any interior, while the violet LC-Duplex adapters provide OM4 multimode connectivity for distances up to 550 meters at 10 Gbps.

Overview

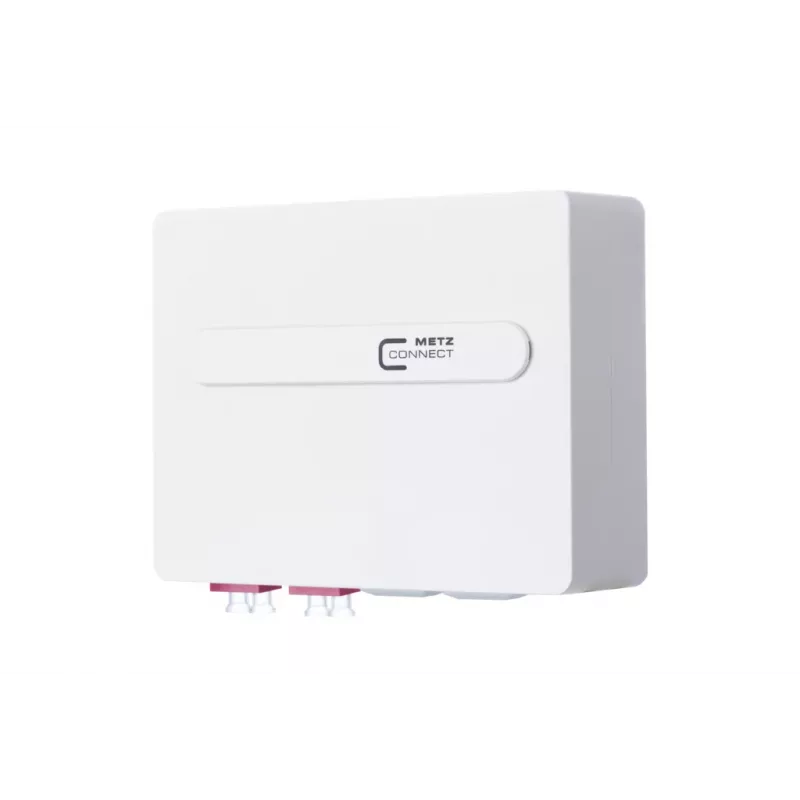

The METZ 1501107H02HC is a flush-mount fiber optic wall outlet designed for Fiber to the Desk (FTTD) applications. It features two LC-Duplex ports, supporting four fibers in total, and comes pre-installed with four 2-meter LC OM4 pigtails. The integrated splice tray accommodates up to four splices, and the rear/side cable entry with strain relief ensures a tidy installation.

What stands out

• OM4 multimode fiber supports 40/100 Gbps Ethernet up to 150 meters.
• Violet adapters clearly identify OM4 per industry standards.
• Integrated dust shutters protect connectors from contamination.
• Thermoplastic housing is durable and paintable to match decor.
• Compatible with standard flush-mount boxes for easy retrofitting.

Technical details

• Connector type: LC-Duplex (2 ports)
• Fiber type: Multimode OM4
• Number of fibers: 4
• Pigtail length: 2 m
• Insertion loss: < 0.2 dB
• Return loss: > 20 dB
• Mounting: Flush-mount
• Housing material: Thermoplastic
• Color: Pure white RAL 9010
• Adapter color: Violet
• Splice tray capacity: 4 splices
• Cable entry: Rear and side
• Strain relief: Yes
• Dust protection: Integrated shutters

Our verdict

A professional-grade fiber outlet that combines high performance with aesthetic flexibility. The OM4 rating future-proofs your network, and the included pigtails simplify installation. Ideal for offices, data centers, and smart buildings.
