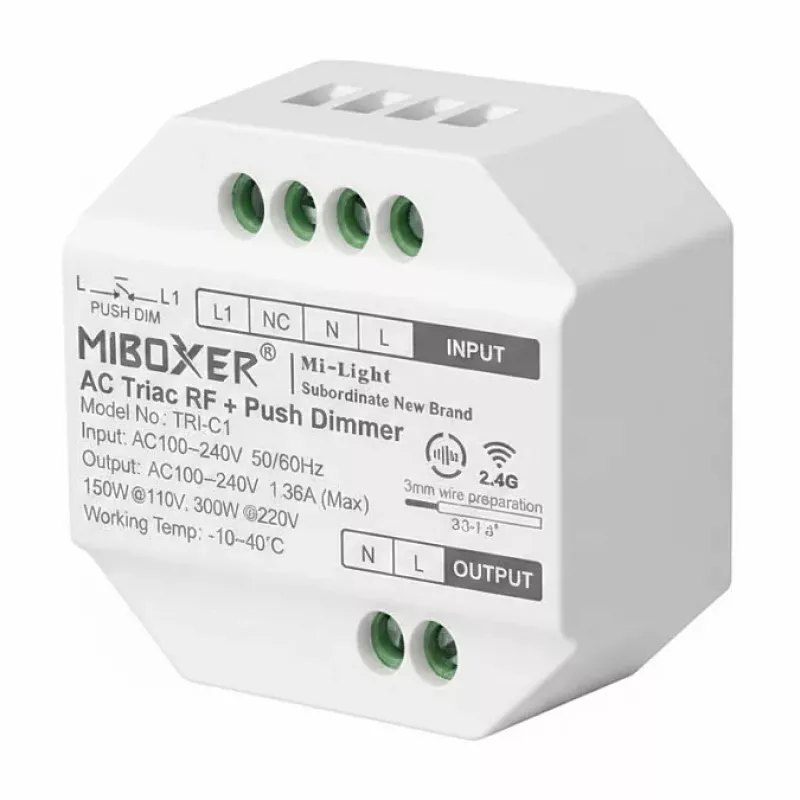

Miboxer Synergy 21 LED Dimmer AC TRIAC RF+Push (TRI-C1)

The Miboxer Synergy 21 LED AC TRIAC Dimmer RF+Push (TRI-C1) is a versatile and reliable dimming controller designed for LED lighting systems. It supports both leading edge and trailing edge phase-cut dimming, making it compatible with a wide range of dimmable LED lamps and fixtures. With dual control methods via 2.4GHz RF wireless remote or external push switch, this dimmer offers flexible installation and operation. Ideal for residential and commercial applications, it ensures smooth 0-100% dimming with overload, short circuit, and overheat protection.

Advantages

This dimmer provides seamless integration with MiBoxer/Mi-Light 2.4GHz RF remotes and WiFi gateways, enabling smart home control. Its compact design and easy installation make it suitable for retrofit projects. The TRIAC dimming technology ensures compatibility with most phase-cut dimmers, while the push dim function allows for simple on/off and brightness adjustment without additional remotes.

Suitable for

• LED lighting systems requiring phase-cut dimming
• Residential and commercial environments
• Integration with MiBoxer/Mi-Light RF control systems
• Retrofit installations where existing wiring includes a push switch

Key specifications

• Input Voltage: AC 100-240V
• Output Voltage: AC 100-240V
• Max Output Current: 1.5A
• Max Output Power: 300W (220-240V) / 150W (100-120V)
• Dimming Type: TRIAC (Phase-cut) Leading Edge / Trailing Edge
• Control: 2.4GHz RF Wireless + Push Dim
• Wireless Distance: Up to 30 meters
• Dimming Range: 0-100%
• Operating Temperature: -10°C to 40°C
• Protection: Overload, Short Circuit, Overheat
• Housing Material: PC (Polycarbonate)
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with MiBoxer/Mi-Light compatible remotes or WiFi gateways. Ensure the total connected load does not exceed the maximum power rating. This dimmer is not suitable for non-dimmable LED drivers or inductive loads.
