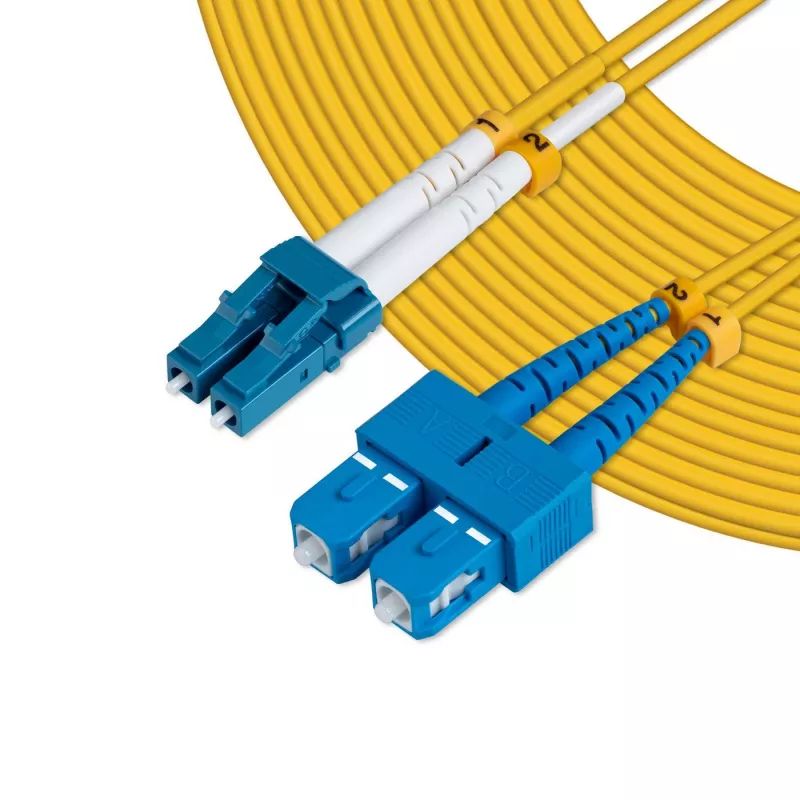

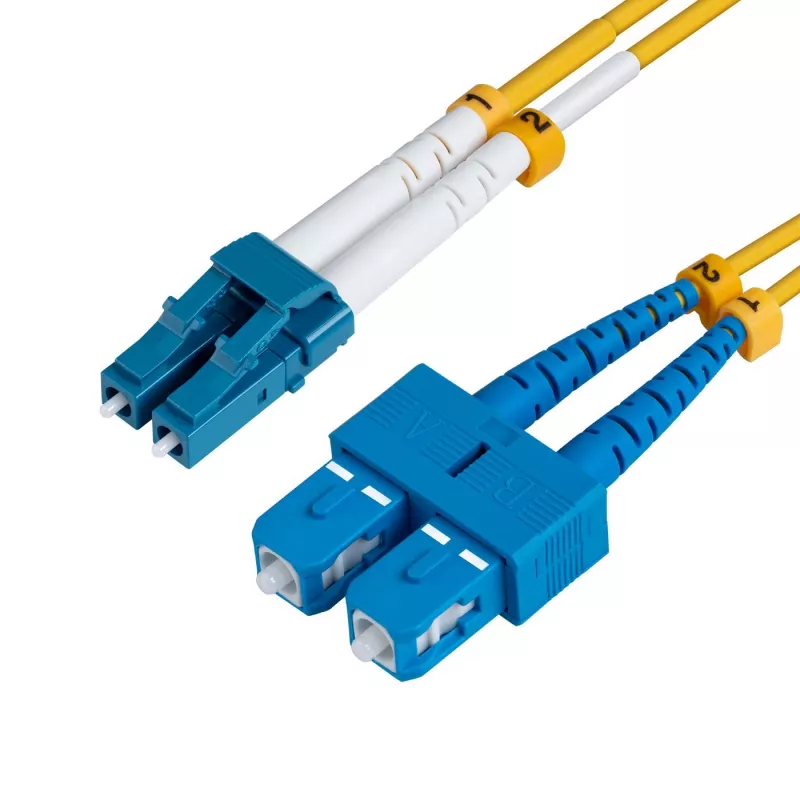

Microconnect FIB421010 cavo InfiniBand/fibra ottica 10 m LC SC giallo

The Microconnect FIB421010 is a 10 m single mode fibre optic cable with LC and SC connectors, OS2 fibre type and a 9 µm core diameter. It provides full-duplex data transmission for enterprise networks, data centres, telecom rooms and server farms, and is suited for 1G/10G/40G/100G Ethernet links. The cable uses LSZH jacket material and meets common industry standards for installation in structured network environments.

Advantages

This single mode patch cord supports long-distance data transport — up to 10 km at 1310 nm and up to 40 km at 1550 nm — while maintaining high signal integrity. The combination of LC and SC connectors offers compatibility with a wide range of networking equipment. The yellow LSZH sheath reduces smoke and toxic gas emission in case of fire and is suitable for indoor installations in telecom rooms and data centres.

Suitable for

• Enterprise network backbones
• Data centres and server farms
• Telecom rooms and patch panels
• Cloud storage networks and high-speed Ethernet links (1G/10G/40G/100G)

Key specifications

• Length: 10 m
• Connector A: LC
• Connector B: SC
• Fibre type: OS2 (single mode)
• Core diameter: 9 µm
• Colour: Yellow
• Weight: 0.078 kg
• Jacket: LSZH

How to use

Uncoil the fibre cable carefully to avoid kinks and excessive bending. Insert the LC and SC connectors into the corresponding ports on patch panels, transceivers or network devices until they click into place. Verify proper connection and full-duplex operation with network testing equipment. Route and secure the cable in cable management trays or ducts, maintaining the manufacturer’s minimum bend radius to preserve signal performance.

Recommendations

For reliable long-term operation, avoid tight bends and mechanical stress on the fibre. Use dust caps when connectors are not connected and perform optical loss testing after installation to ensure link performance meets required budgets.
