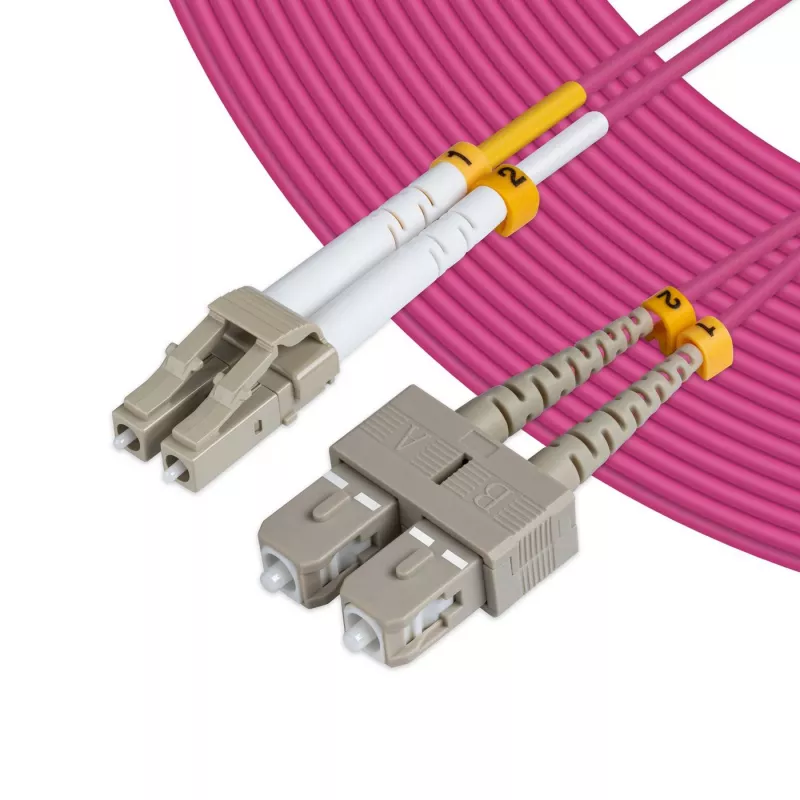

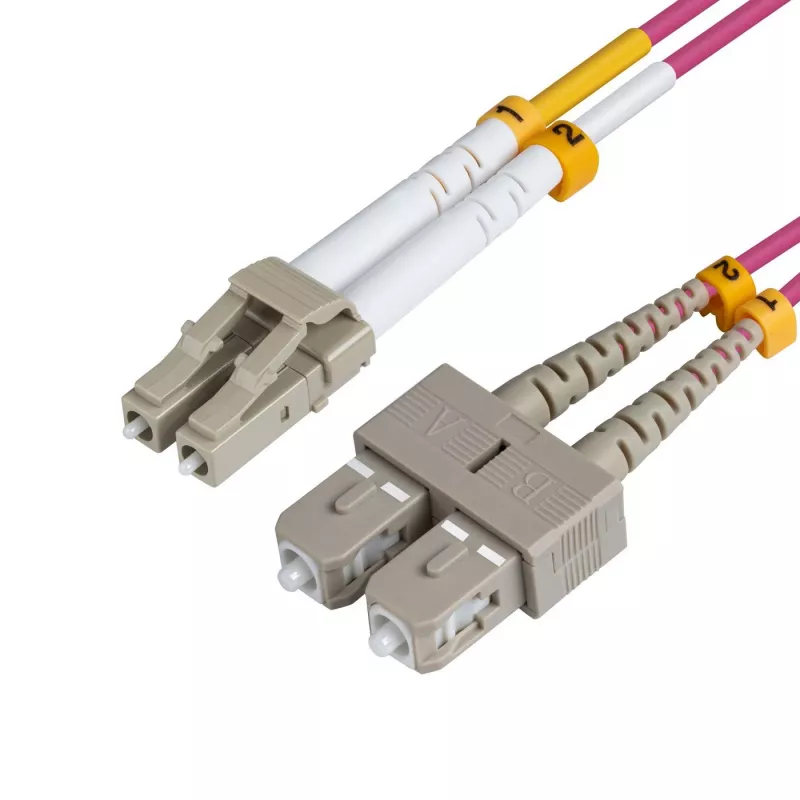

Microconnect FIB4220005P cavo InfiniBand/fibra ottica 0,5 m LC SC viola

The Microconnect FIB4220005P is a 0.5 m fibre optic patch cable with LC and SC connectors, OM4 multimode 50/125 µm fibre and a violet LSZH jacket. It is designed for high-speed data transmission and full-duplex links, suitable for 10G/40G/100G Ethernet and InfiniBand environments where bend-insensitive OM4 multimode fibre is required.

Advantages

Bend-insensitive OM4 multimode fibre reduces attenuation when bent or twisted compared with traditional multimode cables, simplifying installation and maintenance. The cable uses LSZH outer sheath that meets common industry standards (IEC, EIA/TIA, Telcordia), and the LC–SC connector pair provides reliable, duplex connectivity in compact form.

Suitable for

• 10G SR and 10G LRM connections
• SFP+ transceivers and short-range data links
• 40G and 100G multimode links in data centres
• InfiniBand and other high-speed network interconnects

Key specifications

• Length: 0.5 m
• Fibre type: OM4 multimode, 50/125 µm
• Connectors: LC (one end) to SC (other end), duplex
• Jacket: LSZH (violet)
• Weight: 0.008 kg
• Brand / MPN / EAN: MicroConnect / FIB4220005P / 5712505826096

How to use

Connect the LC and SC ends to the corresponding ports on transceivers or patch panels, ensuring connectors are clean before insertion. Use the cable for short-range multimode links in switches, servers or storage equipment. Route the cable without sharp bends beyond the fibre’s minimum bend radius and secure it in cable management to avoid strain on connectors.

Recommendations

Check connector end-face cleanliness with appropriate tools before use; store and handle the LSZH cable to avoid crushing or excessive tensile load. For links beyond OM4 multimode distance limits or for long-haul connections, consider single-mode fibre alternatives.
